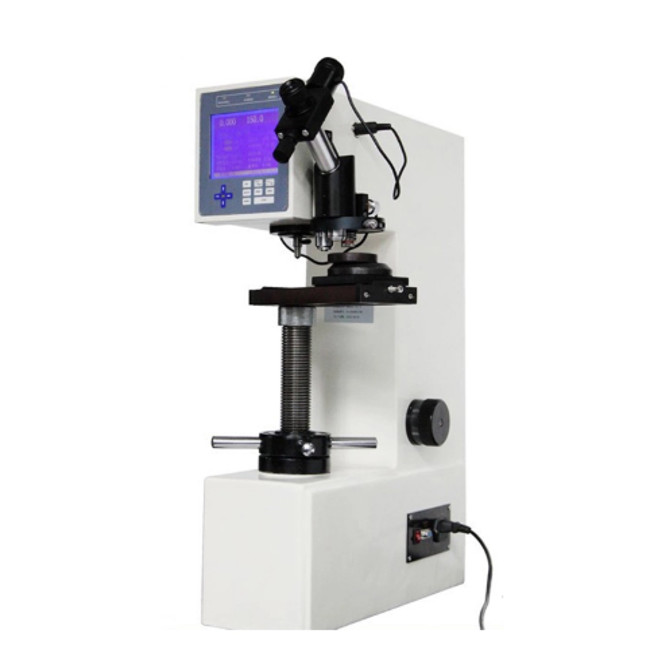

Brinell Micro Electronic Hardness Tester Machine Vickers Hardness 4900 N

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT006
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000Set/month
Type:: Electronic Brinell Hardness Tester Power Supply:: AC 220V/50Hz
Model Number:: TB-006 Hardness Test Range:: 8-650 HBW
Net Weight:: 123 Kg Maximum Height Of Specimen:: 220 Mm
High Light:

Brinell Electronic Hardness Tester


4900 N Electronic Hardness Tester


Brinell micro hardness testing machine

Brinell Micro Electronic Hardness Tester Machine Vickers Hardness 4900 N
1. Brief Introduction
Hardness is one of the mechanical properties of most importance in a material’s performance, and the hardness test is an essential measure to determine the quality of a metallic material or a part made from the material. Hardness is the ability of a material to resist, under certain conditions, the pressure from another solid body which will not carry any residual deformation. The more the ability means the higher the hardness, and vice versa.
Brinell testing is mainly used in hardness determination for metallic materials such as cast iron, steel profiles, nonferrous metals and soft alloys, and also can be used for testing of hard plastics, bakelite and some other nonmetallic materials. It is suitable for using in factories, workshops, laboratories, universities and research institutes.
2. Technical Specifications
2.1 Graduation of the Testing Force
612.5N (62.5kgf)
4900 N (500kgf)
980N (100kgf)
7350 N (750kgf)
1225N (125kgf)
9800 N (1000kgf)
1837.5N (187.5kgf)
14700 N (1500kgf)
2450N (250kgf)
29400 N (3000kgf)
2.2 Hardness Test Range
8 – 650 HBW
2.3 Test Accuracy
Standard Hardness Block Maximum
Reading Error %
Repeatability Error %
125 < HBW ≤225
> 225
Where HBW is the calibrated hardness value of standard block, and d is the total average of measured indent diameters.
2.4 Amplifying Ratio of Microscope
2.5 Minimum Graduation of the Measuring Drum
0.005 mm
2.6 Maximum Height of Specimen
220 mm
2.7 Distance between Center of Indenter and the Column
135 mm
2.8 Power Supply
AC 220V/50Hz
2.9 Overall Size of the Tester (L×W×H)
753×550×236 mm
2.10 Total Weight of the Tester
123 kg
3. Packing List
Electronic Brinell Hardness Tester 1 package in total
Gross Weight: 160 kg
Net Weight: 123 kg
Accessory Package
Ball Indenter, Ø2.5, Ø 5, Ø 10mm 1 for each
Flat Stock (large and small), V-shape Stock1 for each
Standard Hardness Block
HBW/3000/10 150-250*1
HBW/1000/10 75-125*1
HBW/187.5/2.5 150-250*1
Fuse (2A)*3
Power Cord*1
Product Quality Certificate*1
Instruction Manual*1
20 × Microscope*1
Plastic Dust Cover*1
