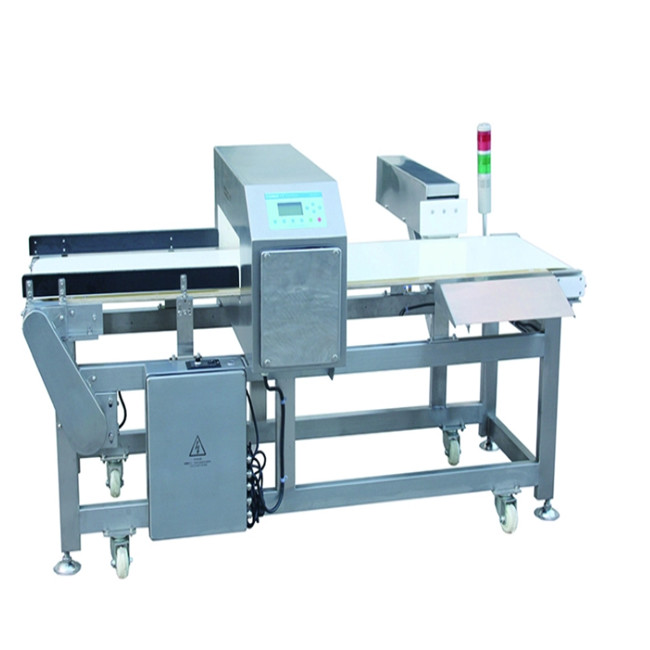

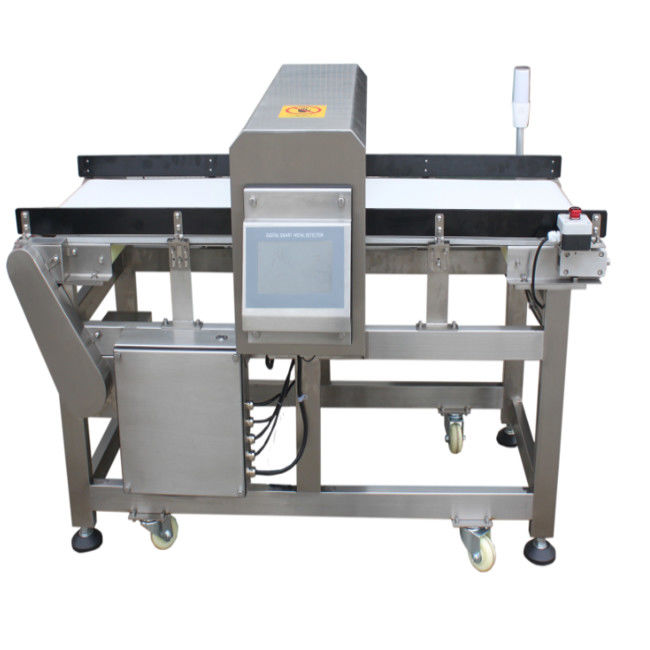

Drinks DSP 20KG Tunnel Metal Detector Sensitivity Food Industry

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT152
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Payment Terms: D/A, D/P, T/T, Western Union
Supply Ability: 100000Set/month
High Light:

20KG tunnel metal detector

,

DSP buzzer tunnel metal detector

,

DSP metal detector sensitivity food industry

Drinks DSP 20KG Tunnel Metal Detector Sensitivity Food Industry



Scope of use:

Metal Detector For Food industry is widely used in the detection of meat, frozen meat, sea food, mushrooms, drinks ,fruits , Sugar, Salt and vegetables. Rejection System Food Metal Detector can detect ferrous and non-ferrous and other metal objects , the sensitivity can be adjusted separately , with memory function can be stored 10 kinds of test material·Detector with audible and visual alarm , and automatically exclude , stop , rewind functions , user-friendly menu , easy to operate touch screen.



Specification:

Detection width : 30-80 cm, Customized
Detection height: 8-50cm Customized
Detection sensitivity: See below table
Alarm mode: The buzzer alarm, the motor automatically stop
Transfer speed: 25 meter / min or you can select adjust speed
Power: 100-265VAC, 50-60Hz (According to customer request)
Size: (150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H)
Reject system Option



The reality detector sensitivity depends on the products and operating environment . Please kindly see below:



Detected Height(mm) 80 100 150 200 250 300 350
Belt Width(mm) 250 250 400 400 400 400 400
Belt length 1500



Detector sensitivity(mm)

Fe 0.8 Fe 1.0 Fe 1.2 Fe 1.5 Fe 2.0 Fe 2.5 Fe 3.0
SUS 1.0 SUS 2.0 SUS 2.5 SUS 2.5 SUS 3.0 SUS 3.5 SUS 4.0
N-Fe 1.0 N-Fe 1.5 N-Fe 2.0 N-Fe 2.0 N-Fe 2.5 N-Fe 3.0 N-Fe 3.5
Speed of belt

25M/min (Fixed speed) ;

If you need adjust 5-40 M/min , please inform us before order

Load ability 20KG
Count 100
Warning method Sound and light alarm ; The belt can be stopped, continue run or belt return ( the option you can selected in PLC controller)
Reject Ways when has auto-reject system ,belt continue and rejecting the goods
Application Non-package ,plastic package ,paper bag or box (non-metallic) product
Work Environment Temperature -10℃-40℃ ,relative humility 30-90%



Description:

Metal Detector For Food industry is new arrival food metal detector . It has touch screen , 10 level adjustable sensitivity and memory 10 kinds of products etc .But also it has more higher reliability and stability on check products with water and salt.



1. Adopt the theory of balance, more reliable;

2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.

3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.

4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.

5. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.

6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without manual participation to adjust technical parameters.

7. It can store more than 100 kinds of testing data of products.

8. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.

9. Suitable for wet, dry ,dust ,dew environment , made of stainless steal ,has HACCP attestation , waterproof IP65



Drinks DSP 20KG Tunnel Metal Detector Sensitivity Food Industry 0



FAQ :



1. How to choose the most suitable Mechanical Equipment ?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?

Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
