IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE
Model Number: BT
Minimum Order Quantity: 1 SET
Price: 2000USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Power:: Electronic, 380VAC 50HZ Dust Dosage:: 2-4kg/m3
Material:: Import (SUS # 304) Stainless Steel Plate, Or Painting Test Powder:: Depends On Customer Requirement
Inner Size:: 1000*1000*1000mm Metal Screen Wire Diameter:: 50um
Power Supply:: AC 3 Phase 380V 50Hz (can Be Customized) Dust Concentration:: 2~4kg/m3
Selling Units:: Single Item Warranty:: 12 Months
High Light:

IPX5 Environmental Test Chambers

,

IEC 60529 Environmental Test Chambers

,

IPX5 sand and dust test chamber

Sand And Dust Proof Test Chamber For Auto Parts Environmental Test Chambers

LCD Touch Screen Programmable Dust Test Machine is designed according to GB4706, GB2423, GB7000.1, IEC60529,ect standards and meet the IPX5 and IPX6 dust test requirements.

LCD Touch Screen Programmable Dust Test Machine is mainly used for testing control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts,ect outer shells. Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assessment sample in this environment of sealing and corrosion degree.





Model BT-HZ-2022
Test chamber dimension 800*800*800mm
Outer dimension 1130*1250*1650mm
Metal screen wire diameter 50um
Screen line space 75um
Environment temperature and humidity 15~45°C, 45~75%RH
Dust(talcum powder) concentration 2~4kg/m3
Test time Dust test time set freely, 0~999.9hr
Test dust Dry talcum powder or portland cement
Test standards GB4706,GB2423,GB7000.1,IEC60529
Power 3ψ 4W+G 380VAC 50HZ

Structure:
1. LCD Touch Screen Programmable Dust Test Machine Inner material: Stainless steel (SUS #304)

2. LCD Touch Screen Programmable Dust Test Machine Outer material: Powder painting steel plate

3. Dust Test Chamber Use imported touch screen programmable controller, can control dust blowing motor, dust vibration and test time.

4. With sealing good chamber door, has lock device and glass observation window.There is lamp and dust brush to ensure easy observation of inner chamber.

5. With strong dust blowing device and vibrator to ensure informity of each blowing.

6. Circulating air supplying device: Frequency converter and high pressure motor to ensure the air volume more precision.

7. Large diameter strong stainless steel air hose, covered with heating device, can heat and dry the test chamber dust.

8. Anti-explosion handle, easy operation, strurdy and durable.

9. Imported high-precision electronic temperature humidity sensor and air speed sensor.

10. Test sample differential pressure test device, can set pumping rate freely according to sample inquiry.

11. There is a ψ50mm test hole on the left chamber and equipped with port lid and silica gel chock plug. Through this hole can connect to outer test device.

12. There are casters with brake equipments and fixing foot pad to make the machine easy operation and level adjustment.

13. With voltage current indicator, equipped with corresponding sample DC12V power, DC24V / 20 a, interval, continuous power supply adjustable. Dust concentration wind speed regulating function. May control test total time, blow the dust of time interval and blowing dust cycle and sample with the power source of the intermittent time.

14. Vacuum system: Equipped with pressure meter, air filtration, dust dehumidification system, regulating triple pieces, connecting pipe (Vacuum pump should be prepare by customer)

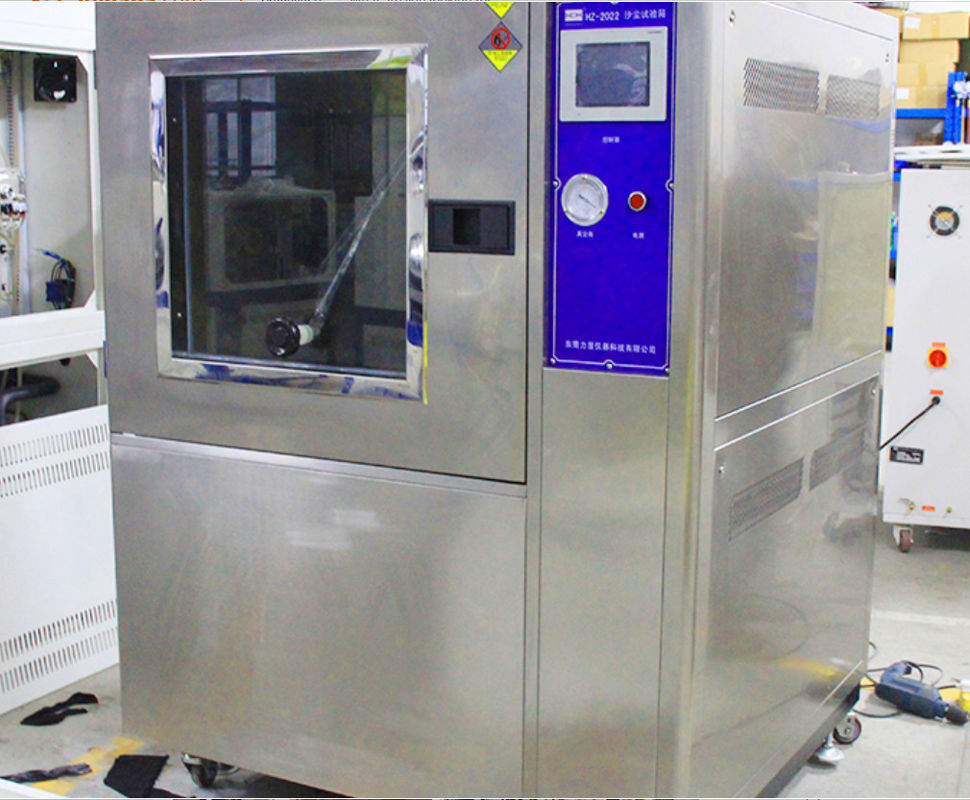

IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 0

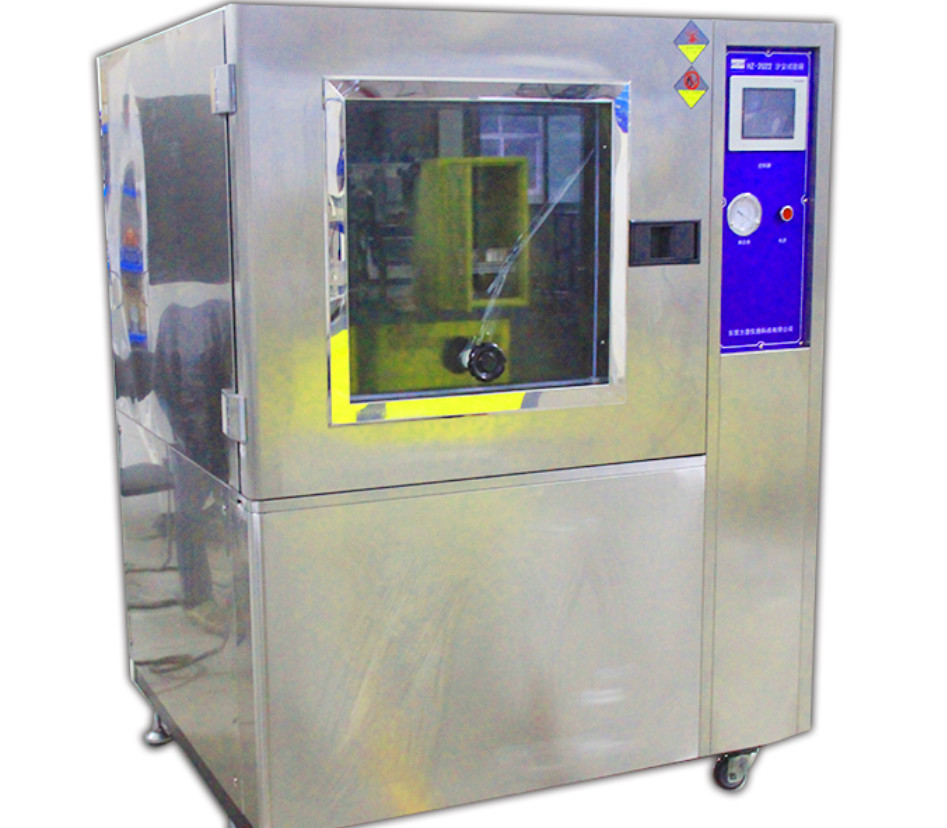

IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 1



Company Profile



BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 2



Main equipment

IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 3

In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market



IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 4



The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.



Production Process



IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 5

IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 6

IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 7

IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 8



Production Details



IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 9

IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 10

IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 11

Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.





Certification

IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 12

Cooperative partners





IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 13





IPX5 Environmental Test Chambers Sand And Dust IEC 60529 For Auto Parts 14





Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.





FAQ



Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
