| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE |
| Model Number: | BT |
| Minimum Order Quantity: | 1 SET |
| Price: | 3000USD |
| Packaging Details: | Export carton |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/month |
| Power:: | Electronic | Certificate:: | ASTMG53-77,GB,GJB,MIL,ASTM,CNS,IEC,JIS,AATCC |
|---|---|---|---|
| Bulb Number:: | UV Lamp 8, Spare Lamp :4 | Function:: | Simulate The Effect Of The Sun, Condensation |
| Testing Capacity:: | 48 Piece(75 *150mm) / 50 Piece( 75*150mm) | Damage Types:: | Bleaching, Discoloration, Loss Of Light, Powder, Crack, Turbidity |
| UV Temperature:: | From 50 °C To 75 °C | Dust Concentration:: | 2~4kg/m3 |
| Selling Units:: | Single Item | Test Time:: | Dust Test Time Set Freely, 0~999.9hr |
| High Light: | 150mm Environmental Test Chambers,UVA340 Environmental Test Chambers,150mm climate chamber test |
||

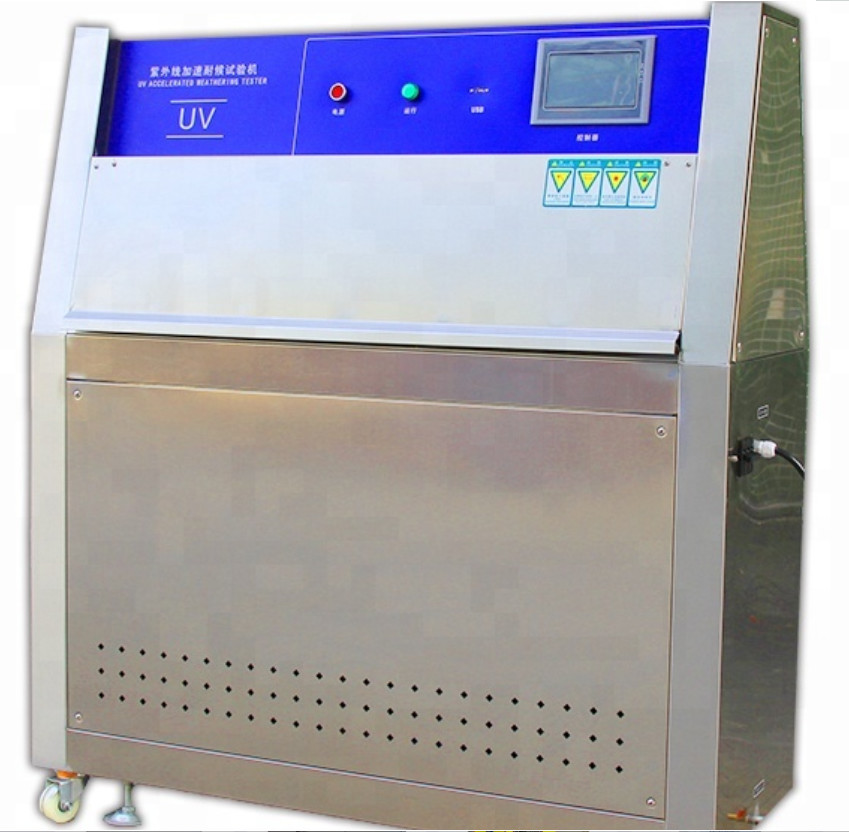

UV QUV test machine, the UV lamp can simulate the effect of the sun, condensation and water spray system can simulate the effect of rain and dew. the temperature can be controlled at the process of testing. A typical test cycle is usually testing at UV radiation of high temperature and the 100% humidity at dark; Typically used in paint and coatings, automotive, plastic products, wood products, glue, etc.
● UVA lamp to test indoor product and UVB lamp to test outdoor product. Our product adopt QUV lamp made in USA, stable and easy to change.
● UV Irradiance Radiometer : Most supplier don't install radiometer,LIB installed it to control Irradiance.
● Most supplier adopt touch-tone, LIB adopt programmable color display touch screen, easy operate, easy to save data.
Corresponding standard:
Accord with ASTMG53-77, GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS, SAE
Technical parameter:
| Model | HZ-2008 |
| Bulb number | UV Lamp 8; spare lamp :4 ATLAS,UVA340,UVB313,UVC351) |
| Recorder | Option |
| Radiometer | Option |
| UV temperature | From 50 ℃ to 75 ℃ |
| Testing capacity | 48 piece(75 x 150m m ) 50 piece( 75 x 150m m ) |
| Water and consumption | Distilled water, 8 liters / day |
| Volume (W x D x H) | 137 x 53 x 136cm |
| Weight | 136kg |
| Power | 1 ψ , 120V/60Hz,16A or 230V/50Hz, 9A,1800W(max) |
Main structure:
1. Box made by numerical control equipment, advanced technology, smooth lines,
elegant appearance
2. Box material is 1.2mm thickness 304SUS stainless steel
3.The air duct in the oven adopt single-cycle system, with import of axial flow fan, To improve the air flow, heat ability, greatly improved the uniformity of the temperature in the cabinet
4. Tube: Special uv lamp, 2 rows, 8PCS,40W/PC
5. Lamp Lifetime: more than 1600h
6. Water supply and consumption:Tap water or distilled water about 8L/day
7. Both sides were installed in the studio 8PCS UVA or UVB lamp
8. Heating method: Bladder tank type heating,heat up fast,temperature distribution uniformity
9. Tank cover:double flip,easy shut down.
10. The tank water level automatic filling water, prevent damage of heat pipe air to burn.
11. Sample frame is made from stainless steel or aluminum alloy.
12. Machine bottom using high quality PU wheel fixed
13. Drainage system using U type drainage device
14. The test sample surface with uv light plane in parallel
15. Internal installation of automatic sprinkler spray system, the water pressure is adjustable
Packing & Delivery
Company Profile
BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
Main equipment
Main market
Certification
Cooperative partners
BOTO ADVANTAGE
Customers photos
OUR TEAM
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
