| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE |
| Model Number: | BT-605A |
| Minimum Order Quantity: | 1 SET |
| Price: | 3000USD |
| Packaging Details: | Export carton |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/month |
| Power:: | Electronic, 220V,50HZ | Connect PC:: | RS 232, USB |
|---|---|---|---|
| Center Controller:W*H*D(cm): 5:: | TEMI 880 | Cable Port:: | External Power |
| Refrigerant:: | Environment Protection | Test Model:: | Fix And Program |
| Compressor:: | Tecumseh Of France | Box Material:: | SUS 304 Stainless Steel |
| Test Time:: | Dust Test Time Set Freely, 0~999.9hr | ||
| High Light: | RS232 temperature humidity chamber,1000ppm TEMI 880 temperature humidity chamber,1000ppm TEMI880 environmental chamber humidity control |
||

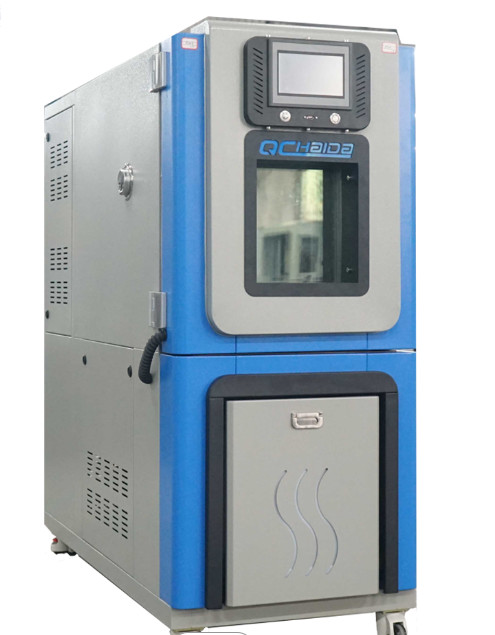

Constant Environment Temperature and Humidity Dry Climatic Test Chamber can simulate the different indicators of constant temperature and humidity climate quickly and accurately for testing products which need to check their performance of temperature testing (-40℃~+150℃), humidity testing (20~98%R.H.),both of temerature and humidity testing at the same time.chamber power can be customized.
Constant Temperature Humidity Chamber which also call environment test chamber is designed for detecting the material under a variety of environmental test equipment and performance of a variety of materials holding test, cooling-off test, heating-up test, moistening test and drying test... Suitable for electronic, electrical, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products quality testing purposes,EN 14511.
(not limited to the following):
1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others...
IEC 60068-2-1, IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-38
IEC 61215 - 10.11, 10.12, 10.13
EN 14511
ASTM E1171
| Model | BT-E702-100-4 |
| Internal dimension (W*D*H) | 400*500*500mm |
| External dimension (W*D*H) | 600*1080*1380mm |
| Temperature range | -40~+150℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | 2℃ |
| Humidity range | 20~98%RH (Refer Image below) |
| Humidity fluctuation | ±2.5%RH |
| Humidity uniformity | 3%RH |
| Cooling speed | 1℃/min in average (without loading) |
| Heating speed | 3℃/min in average (without loading) |
| Internal chamber material | SUS#304 stainless steel, mirror finished |
| External chamber material | Stainless steel |
| Cooling method | Air cooling |
| Controller |
LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor | France Tecumseh compressor |
| Lighting | Heat resistance |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS#304 stainless steel, 2pcs |
| Safety protection device |
Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
The above parameter belongs to the standard machine section, Welcome to customize
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Direct water supply connection for continuous operation
6. Accurate wet/dry-bulb humidity measurement system for easy mantain
1. PIC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
Other Models:
Available inner capacity: 100L, 225L, 408L, 800L, 1000L; and customized dimensions.
COMPANY INFORMATION
BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
Main equipment
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
Main market
The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
Production Details
Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.
Workshop Machine
Certification
TRADING PROCESS
Cooperative partners
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
