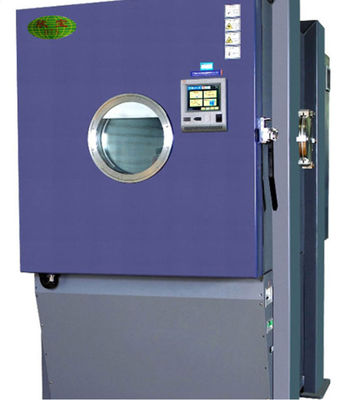

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE
Model Number: BT-252M
Minimum Order Quantity: 1 SET
Price: 30000USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 1000set/month
Power:: Electronic Product Name:: Competitive Price Altitude Test Chamber,Pressure Testing Chamber
Power Supply:: Electronic, AC380V/50Hz, 3phase 4 Wires+ Ground Wire Cable Port:: External Power
Pressure Range:: 101kpa ~1kpa Internal Chamber:: Stainless Steel(SUS304)
Temp Range:: -70°C~+150°C Temp Fluctuation:: ±0.5%
Cooling Rate:: 0.7c~1.0c/Min (Average)
High Light:

101kpa high altitude test chamber

,

45000 meters high altitude test chamber

,

101kpa environmental temperature chamber

Altitude Test Chamber,Pressure Testing Chamber Environmental Test Chambers

Competitive Price Altitude Test Chamber,Pressure Testing Chamber,Pressure Chamber , namely High-low temperature and low pressure test chamber or Low pressure test chamber. Can be used in electrical products, materials, spare parts, equipment, etc, for single featured test--high temperature, low temperature and altitude(under 30,000 or 45,000 meters) test and comprehensive test--- heat-and-cool circulation test, temperature-and-altitude test.

Features

1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3. External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4. Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7.Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application

Specification

Model BT-252M BT-504M BT-1000M BT-2160M
Inner Size (D*W*H)mm 600*600*700 800*700*900 1000*1000*1000 1200*1400*1200
Capacity(KW) 11 15 16 18
Chamber Volume(L) 252 504 1000 2160
Specifications Temp range -70℃~+150℃ -70℃~+150℃ -70℃~+150℃ -70℃~+150℃
Temp fluctuation ±0.5%
Temp deviation ≥100℃, ±3.0℃(at 101kPa, ATM no load)
<100℃, ±2.0℃(at 101kPa, ATM no load)
Cooling rate 0.7℃~1.0℃/min (Average)
Pressure range 101kPa ~1kPa
Pressure accuracy ±2kPa (101kPa ~ 40kPa), ±0.5kPa (4kPa~40pKa ), ±0.1kPa (4kPa~1kPa)
Depressurization rate 101kPa ~1kPa≤30mins (Room temp)
Pressure recovery rate 10kPa/Min(adjustable)

Standard configuration:
Two sample holders; an observation window; φ25 or φ50 cable hole.
Optional parts:
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.
Structure:
Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Material:
Tecumseh, Bock Compressor;
High quality electronic components (DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Standards Implemented and Met
B10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode




101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 0

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 1







Production Process



101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 2

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 3

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 4

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 5



Production Details



101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 6

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 7

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 8



Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.





Company Profile



BOTO GROUP is a professional manufacturer of various kinds of testing equipment over 20 years. BOTO products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 9

BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 10

Main equipment

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 11

In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 12

The factory has the ability to calibrate, and the customer can also designate a ISO 17025 accredited third-party organization to calibrate and issue a calibration report.



Certification

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 13

The certificate is valid until June 17, 2024



101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 14

Cooperative partners

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 15

BOTO ADVANTAGE



101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 16

Customers photos

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 17

101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 18

OUR TEAM



101kpa High Altitude Test Chamber Environmental Temperature 45000 Meters 19



Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.



FAQ



Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
