| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE |
| Model Number: | BT |
| Minimum Order Quantity: | 1 SET |
| Price: | 4500USD |
| Packaging Details: | Export carton |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/month |
| Power:: | Electronic | Temperature Range:: | 70/-40~150C |
|---|---|---|---|
| Controller Accuracy:: | ±0.3°C ±2.5%RH | Fluctuation:: | ±0.5°C ±2.5%RH |
| Temperature And Humidity Range: Range:: | Optional | Material:: | #SUS 304 Stainless Steel |
| Refrigerants:: | R4O4A USA Dupont Environmental Protection Refrigerant(R23+R40 | Water Supplying Way:: | Automatic Cycling Water Supply |
| Condensing Way:: | Air-cooled Or Water-cooled | ||
| Highlight: | R404A Temperature Humidity Test Chamber,SUS304 Temperature Humidity Test Chamber,SUS304 temp humidity chamber |
||

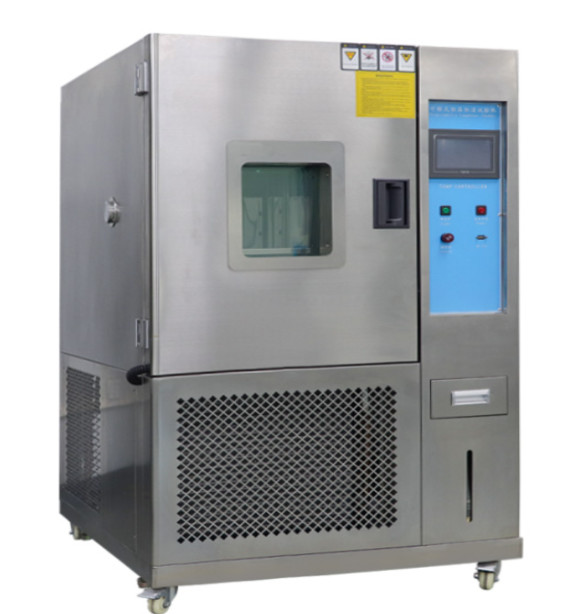

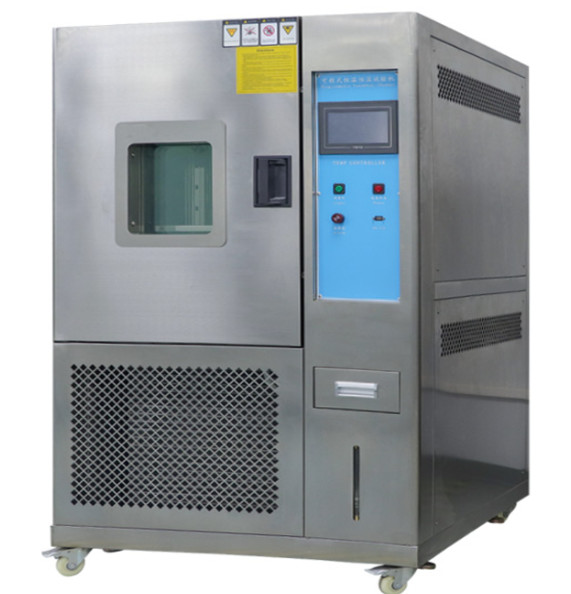

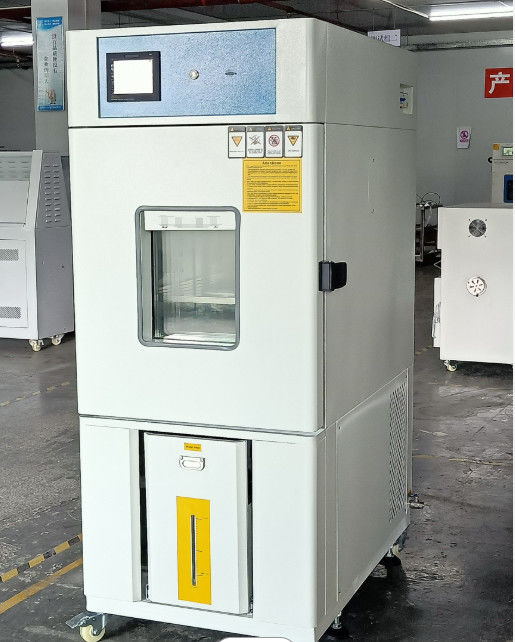

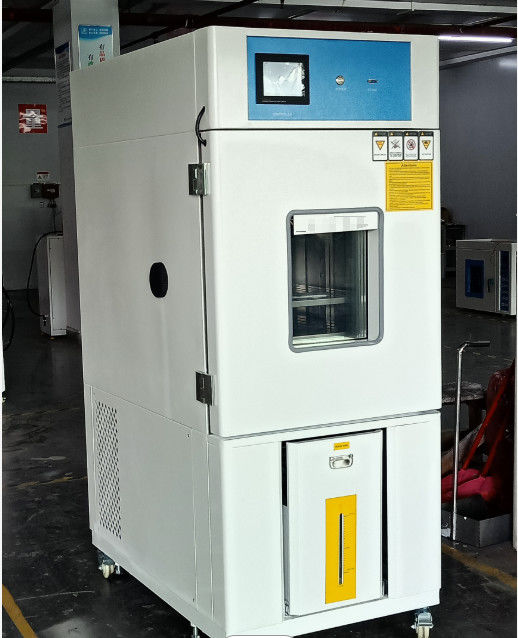

Temperature humidity test equipment is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth. Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.
Features
1. Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel;
2. Use new high temperature resistant long shaft motor;
3 Turbine fan;
4. Silicone forced tight;
5. Overtemperature protection, super load automatic power system;
6. Circulation system: air force level cycle;
7. Heating system:PID+S.S.R;
8. The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function;
9. Timer: temperature to time, when the power failure alarm indication;
10. According to customer demand matching glass window can be customized according to customer specifications specified.
Application
This machine is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily. It can be filled with inert gases, which is especially for a rapid drying of some compound material.
| Model | BT-280 | BT-2150 | BT-2225 | BT-2408 | BT-2800 | |
|
Inner Size W×H×D(cm) |
40×50×40 | 50×60×50 | 60×85×80 | 60×85×80 | 100×100×80 | |
| Volume (V) | 80 L | 150L | 225L | 408L | 800L | |
|
Temp and Hum Range |
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
|||||
|
Function
|
Fluctuation | ±0.5°C ±2.5%RH | ||||
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) | |||||
|
Controller Analytical Accuracy |
±0.3°C ±2.5%RH | |||||
|
Material
|
Inner Wall | #SUS 304 Stainless steel | ||||
| Outer Skin | #SUS 304 Stainless steel | |||||
|
Heat Preservation |
High temperature resistant, high chlorine acid b vinegar foam insulation materials |
|||||
| Refrigeration Way | Single stage compression refrigeration | |||||
| Refrigerator | French Tecumseh | |||||
| Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) | |||||
| Condensing Way | Air-cooled or water-cooled | |||||
| Heater | Nickel chrome heating wire heater | |||||
| Humidifier | Semi-closed steam and wet | |||||
| Water Supplying Way | Automatic cycling water supply | |||||
|
|
Company information
Main equipment include:
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
Main market:
The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
Production Details
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
