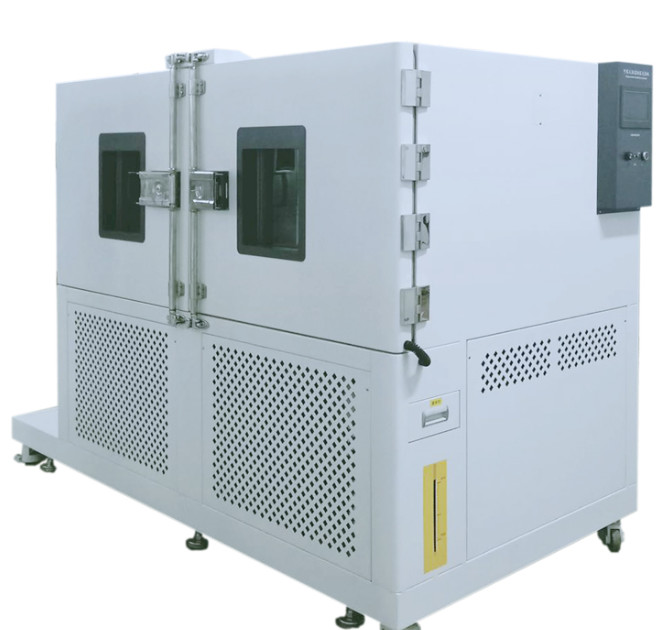

Climatic Benchtop Stability Chamber Environmental 150 Degree

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE
Model Number: BT
Minimum Order Quantity: 1 SET
Price: 3500USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 1000set/month
Power:: Electronic Condensing Way:: Air-cooled Or Water-cooled
Water Supplying Way:: Automatic Cycling Water Supply OEM Order:: Accept
Volume (V): And Humidity Range: Range:: 80L/150L/225L/408L/800L/1000L Or Customize Material:: #SUS 304 Stainless Steel
Humidity Range:: 20%~98%RH Controller Accuracy:: ±0.3°C ±2.5%RH
Fluctuation:: ±0.5°C ±2.5%RH
High Light:

pt100 150 Degree benchtop stability chamber

,

Climatic benchtop stability chamber

,

pt100 Climatic benchtop environmental chamber

-70~+150 Degree Environmental Climatic Test Chamber Temperature Humidity Test Chamber

Temperature & humidity test chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.



Features


1. Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel;
2. Use new high temperature resistant long shaft motor;
3 Turbine fan;
4. Silicone forced tight;
5. Overtemperature protection, super load automatic power system;
6. Circulation system: air force level cycle;
7. Heating system:PID+S.S.R;
8. The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function;
9. Timer: temperature to time, when the power failure alarm indication;

10. According to customer demand matching glass window can be customized according to customer specifications specified.



Application



This machine is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily. It can be filled with inert gases, which is especially for a rapid drying of some compound material.

Climatic Benchtop Stability Chamber Environmental 150 Degree 0



Specifications



Model
BT-280
Inner Size (W*H*D)
40*50*40cm
Volume (V)
80L

Temperature and Humidity Range
A:-20°C~150°C B: -40°C~150°C
C: -60°C~150°C D: -70°C~150°C
RH20%-98%
Deviation
±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)
Fluctuation
±0.5°C ±2.5%RH
Controller Analytical Accuracy
±0.3°C ±2.5%RH
Refrigerator
French Tecumseh
Refrigerants
R4O4A USA DuPont environmental
protection refrigerant(R23+R404)
Condensing Way
Air-cooled or water-cooled
Heater
Nickel chrome heating wire heater
Humidifier
Semi-closed steam and wet
Water Supplying Way
Automatic cycling water supply
Wind Cycling Way
Centrifugal fan-broadband type forced air circulation

Climatic Benchtop Stability Chamber Environmental 150 Degree 1

Climatic Benchtop Stability Chamber Environmental 150 Degree 2





Company Profile



BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



Climatic Benchtop Stability Chamber Environmental 150 Degree 3

Climatic Benchtop Stability Chamber Environmental 150 Degree 4



Main equipment



Climatic Benchtop Stability Chamber Environmental 150 Degree 5



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market



Climatic Benchtop Stability Chamber Environmental 150 Degree 6

The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.



Production Process

Climatic Benchtop Stability Chamber Environmental 150 Degree 7

Climatic Benchtop Stability Chamber Environmental 150 Degree 8

Climatic Benchtop Stability Chamber Environmental 150 Degree 9

Climatic Benchtop Stability Chamber Environmental 150 Degree 10

Production Details





Climatic Benchtop Stability Chamber Environmental 150 Degree 11

Climatic Benchtop Stability Chamber Environmental 150 Degree 12



Climatic Benchtop Stability Chamber Environmental 150 Degree 13

Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.



Certification



Climatic Benchtop Stability Chamber Environmental 150 Degree 14

Cooperative partners



Climatic Benchtop Stability Chamber Environmental 150 Degree 15





Climatic Benchtop Stability Chamber Environmental 150 Degree 16



Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.







FAQ



Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
