| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE |
| Model Number: | BT-RUL-100 |
| Minimum Order Quantity: | 1 SET |
| Price: | 600USD |
| Packaging Details: | Export carton |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, T/T |
| Size: | 450*450*450 | Temp Range: | RT+10°C ~250°C |
|---|---|---|---|
| Temp Uniformity: | 1.5°C | Usage: | High Temperature Aging Testing Oven |
| Temp Accuracy: | 0.5°C | Voltage: | 220V 50Hz |
| Input Power: | 30KG | Capacity: | 50L |
| High Light: | 30KG sus304 hot air drying oven,50L aging hot air drying oven,sus304 50L aging large drying oven |
||
This product is widely used in industrial and mining enterprises, universities, scientific research and various types of laboratories and other vacuum storage leak detection or ceramics, glue, epoxy resin, paint, plastic toys, resin crafts, etc. , Vacuum, defoaming of candles, printer cartridges, and glass products.
Product Features:

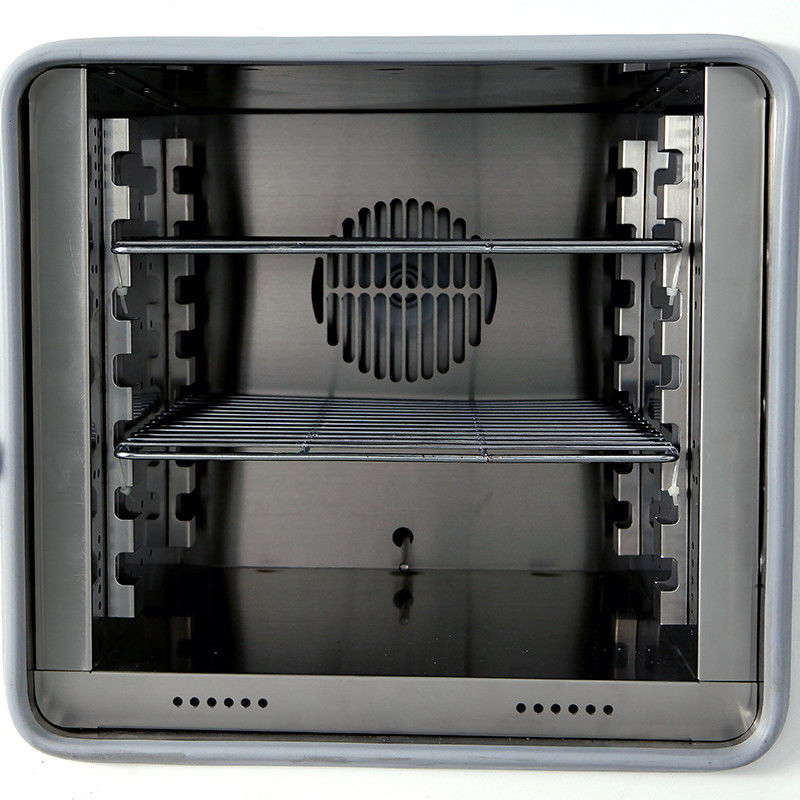

1. Stainless steel working chamber
2. Powder coated steel housing
3. Surrounding heating(chamber is heated on 4 sides)
4. Dual-layer toughened glass window on the front door
5. Adjustable door locking tightness
6. Rotary plate and lighting included
7. Closed-cell silicon gasket ensuring high vacuum degree

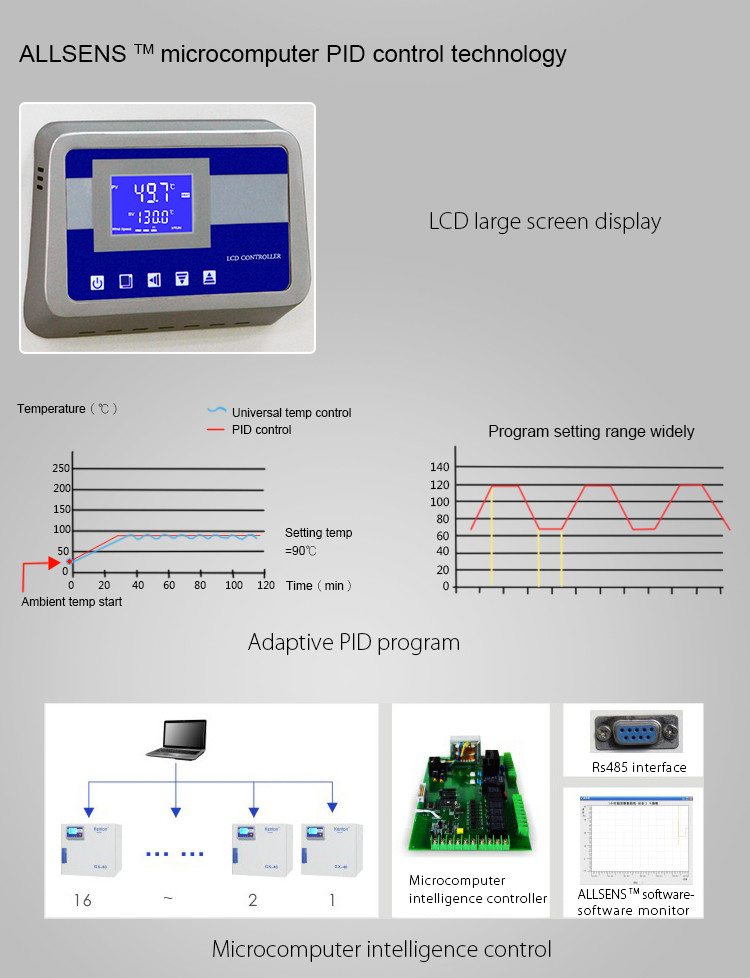

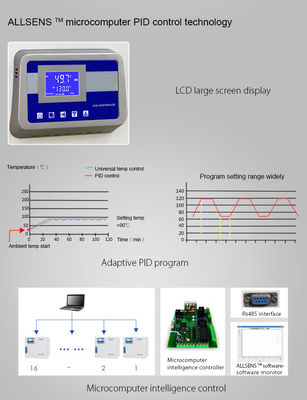

8. Temperature controller with high-peed, high-performance CPU chip
9. High-sensitivity and high precision Pt resistance sensor
10. Preset programmed control with timing range up to 99 hours for power-on, power-off and working
11. Multiple alarms for sensor failure, high/low temperature deviation, over temperature
12. Parameter memory
13.Temperature display calibration
14. Dynamic self-diagnostic control technology
15. Vacuum oil back flow proof
Technical Data:
| Product | Laboratory Drying High Temperature Vacuum Oven | |
| Model | NuOven VQ52-1 | NuOven VQ52-2 |
| 10-segment Temp. Contrl Program | N/A | Available |
| Chamber volume (L) | 50 | 50 |
| Temp. Control Range | RT+10Co~250Co | RT+10Co~250Co |
| Temperature Accuracy | ±2Co at 100Co | |
| Temperature Fluctuation | ±1Co | |
| Temperature Controller | PID microprocessor control, soft touch, LED display | |
| Temperature Sensor | PT100 | |
| Timer | Power-on, power off and working. Timing range: 1min-99hr | |
| Chamber Material | 304 stainless steel | 304 stainless steel |
| Housing Material | Powder Coated Steel | |
| Chamber Size | 415X370X345 | 415X370X345 |
| Dimensions(WxDxH, mm) | 710X510X530 | 710X510X530 |
| Vacuum Degree | 60Pa | 60Pa |
| Net Weight(Kg) | 75 | 75 |
| Consumption Power(W) | 1300 | 1300 |
| Heating Method | 3-side surrounding heating | 3-side surrounding heating |
| Shelf Qty(Std./Max.) | 2/2 | 2/2 |
| Power Supply | 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) | |
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
