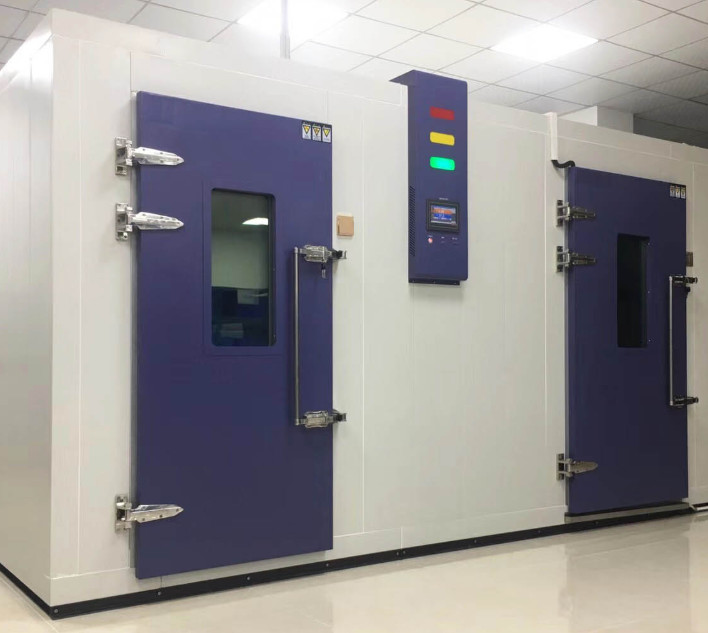

Process 100m3 Temperature Humidity Test Chamber Walk In R23

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT
Minimum Order Quantity: 1 SET
Price: 7900USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 1000set/month
Power:: Electronic Cable Port:: External Power
Compressor: Range:: Original France Tecumseh Refrigerant:: Environmental Friendly R23/404a
Controller:: Programmable LCD Touch Screen Casters:: Easy Mobility, Safe And Sound
Water Level:: Visible Capacity:: 80L/150L/225L/408L/800L/1000L Or Custom Made
Warranty:: 12 Mnths
High Light:

R23 Temperature Humidity Test Chamber

,

100m3 Temperature Humidity Test Chamber

,

100m3 walk in test chamber

Process Testing Machine Walk In Temperature Humidity Test Chamber Temperature Humidity Test Chamber

Temperature humidity walk in test chamber is used for providing large parts of the finished products, semi-finished products, large temperature and humidity test environmental equipment to the industry.



Features


1. Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel;
2. Use new high temperature resistant long shaft motor;
3 Turbine fan;
4. Silicone forced tight;
5. Overtemperature protection, super load automatic power system;
6. Circulation system: air force level cycle;
7. Heating system:PID+S.S.R;
8. The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function;
9. Timer: temperature to time, when the power failure alarm indication;

10. According to customer demand matching glass window can be customized according to customer specifications specified.



Application



This machine is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily. It can be filled with inert gases, which is especially for a rapid drying of some compound material.

Specifications



Volume 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer Requirements
Temperature Range -70~150C
Humidity Range 20%~98%RH
Accuracy/Uniformity ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H.
Accuracy/Volatility ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H.
Cooling Time 5.0 °C /minute
Inside Material SUS#304 Stainless Steel
Insulation Material High-temperature high-density amino acid ethyl ester foam insulation materials
Cooling System Water-cooled / two-stage compressor
Protection No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system
Accessories Recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball
Controller Touch screen programmable controller
Compressor France's Tecumseh Brand or Germany Bitzer
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz

Process 100m3 Temperature Humidity Test Chamber Walk In R23 0

Process 100m3 Temperature Humidity Test Chamber Walk In R23 1

Packing & Delivery

Process 100m3 Temperature Humidity Test Chamber Walk In R23 2

Company Profile



BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



Process 100m3 Temperature Humidity Test Chamber Walk In R23 3



Main equipment

Process 100m3 Temperature Humidity Test Chamber Walk In R23 4



Main market

Process 100m3 Temperature Humidity Test Chamber Walk In R23 5



Certification



Process 100m3 Temperature Humidity Test Chamber Walk In R23 6



Cooperative partners



Process 100m3 Temperature Humidity Test Chamber Walk In R23 7



BOTO ADVANTAGE



Process 100m3 Temperature Humidity Test Chamber Walk In R23 8



Customers photos



Process 100m3 Temperature Humidity Test Chamber Walk In R23 9

Process 100m3 Temperature Humidity Test Chamber Walk In R23 10







FAQ



Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
