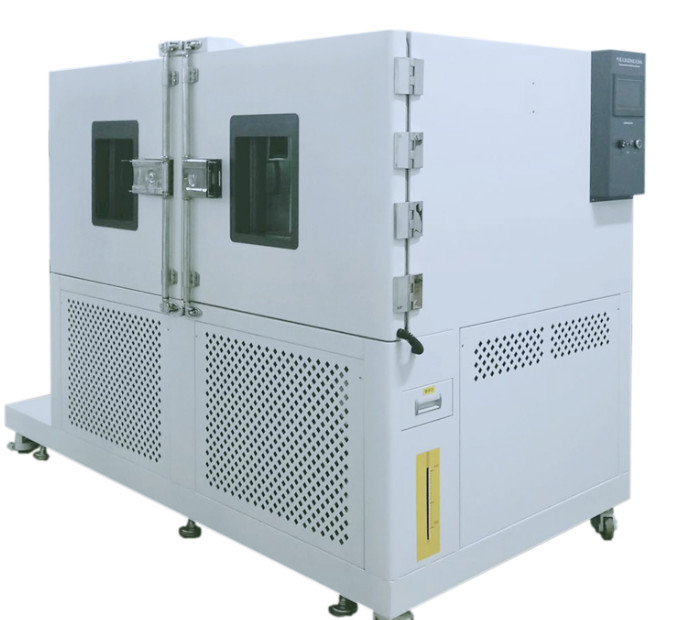

High Low AC220V Constant Temperature Humidity Test Chamber 225L

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT
Minimum Order Quantity: 1 SET
Price: 3900USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 1000set/month
Power:: Electronic, AC220V Or 380V 50HZ, All Can Customize Heating System:: Hot Air Circulation, High Precision
Material:: SUS304 Color:: Can Be Customized
Inner Structure:: With Hot Plate Or Cart Uses:: Environmental Chamber
Temp Range:: -70C~+150C Humi Range:: 20%~98%
Warranty:: 12 Mnths
High Light:

225L Temperature Humidity Test Chamber

,

AC220V Temperature Humidity Test Chamber

,

AC220V constant temperature and humidity chamber

All Size Customize High Low Temperature and Humidity Environmental Chamber Temperature Humidity Test Chamber

temperature and humidity chamber is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth. Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.



During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3) Order process:

We offer below business term:

Accepted Delivery Terms FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency USD, EUR, HKD, CNY
Accepted Payment Type T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process. After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products in confirmed shipping time and inform customer.

5) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.



Model BT-280 BT-2150 BT-2225 BT-2408 BT-2800

Inner Size

W×H×D(cm)

40×50×40 50×60×50 50×75×60 60×85×80 100×100×80

Outside Size

W×H×D(cm)

93×155×95 100×148×106 117×166×91 140×176×101 170×186×111
Volume (V) 80 L 150L 225L 408L 800L

Temp and Hum

Range

A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C

RH20%-98%

Function Fluctuation ±0.5°C ±2.5%RH
Deviation ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)

Controller

Analytical

Accuracy

±0.3°C ±2.5%RH

Material





Inner Wall #SUS 304 Stainless steel
Outer Skin #SUS 304 Stainless steel

Heat

Preservation

High temperature resistant,

high chlorine acid b vinegar foam insulation materials

Wind Cycling Way Centrifugal fan-broadband type forced air circulation
Refrigeration Way Single stage compression refrigeration
Refrigerator French Tecumseh
Refrigerants R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Heater Nickel chrome heating wire heater
Humidifier Semi-closed steam and wet
Water Supplying Way Automatic cycling water supply

Standard

Accessories

1 Observe window(double-deck cavity toughened glass),

1 50mm test hole in the left,

1 PL inner chamber lamp,

2 clapboards,

1 bag of wet and dry bulb,

3 fuses,

1 power line.





High Low AC220V Constant Temperature Humidity Test Chamber 225L 0

High Low AC220V Constant Temperature Humidity Test Chamber 225L 1

Packing & Delivery

High Low AC220V Constant Temperature Humidity Test Chamber 225L 2



Company Profile



BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



High Low AC220V Constant Temperature Humidity Test Chamber 225L 3



Main equipment

High Low AC220V Constant Temperature Humidity Test Chamber 225L 4

In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market



High Low AC220V Constant Temperature Humidity Test Chamber 225L 5



The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.



Production Process



High Low AC220V Constant Temperature Humidity Test Chamber 225L 6

High Low AC220V Constant Temperature Humidity Test Chamber 225L 7

High Low AC220V Constant Temperature Humidity Test Chamber 225L 8

High Low AC220V Constant Temperature Humidity Test Chamber 225L 9



Production Details

High Low AC220V Constant Temperature Humidity Test Chamber 225L 10



High Low AC220V Constant Temperature Humidity Test Chamber 225L 11

High Low AC220V Constant Temperature Humidity Test Chamber 225L 12

Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.



Certification

High Low AC220V Constant Temperature Humidity Test Chamber 225L 13



Cooperative partners



High Low AC220V Constant Temperature Humidity Test Chamber 225L 14



BOTO ADVANTAGE



High Low AC220V Constant Temperature Humidity Test Chamber 225L 15



Customers photos



High Low AC220V Constant Temperature Humidity Test Chamber 225L 16

High Low AC220V Constant Temperature Humidity Test Chamber 225L 17

OUR TEAM

High Low AC220V Constant Temperature Humidity Test Chamber 225L 18





FAQ



Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
