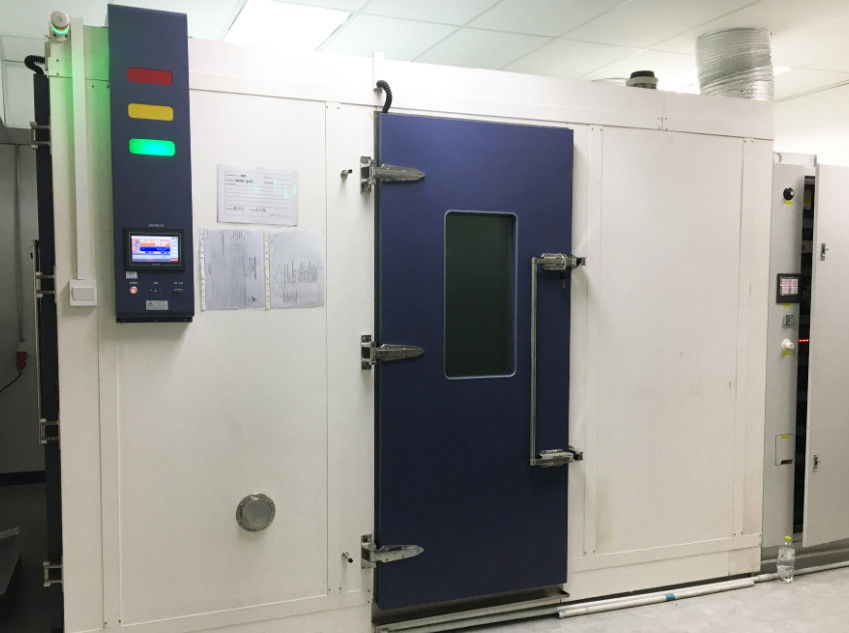

PID 150C Temperature Humidity Test Chamber Environmental Simulation

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT
Minimum Order Quantity: 1 SET
Price: 9900USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 1000set/month
Power:: Electronic Product Name:: Large Walk In Temperature Humidity Test Chamber
Volume:: Customized Temperature Range:: -70~150C
Humidity Range:: 20%~98%RH Accuracy:: ±0.1 °C , ±0.1%R.H.
Uniformity:: ±1.5 °C ,±5.0%R.H. Controller:: Touch Screen Programmable Controller
Stability Humidity:: ±2%RH
High Light:

150C Temperature Humidity Test Chamber

,

PID Temperature Humidity Test Chamber

,

PID environmental simulation chambers

Large Walk in Humedad constante del termostato Temperature Humidity Test Chamber And Walk-in Cold Room

Walk in climatic test chamber simulate the effects that a range of temperature and humidity conditions have on a product or material, for example telecommunications equipment or photovoltaic solar panels that are exposed to outdoor temperature and humidity conditions. They have applications in industries as disparate as food science, semiconductors, and military quality assurance. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field.



Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE


Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair



Features


1. Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel;
2. Use new high temperature resistant long shaft motor;
3 Turbine fan;
4. Silicone forced tight;
5. Overtemperature protection, super load automatic power system;
6. Circulation system: air force level cycle;
7. Heating system:PID+S.S.R;
8. The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function;
9. Timer: temperature to time, when the power failure alarm indication;

10. According to customer demand matching glass window can be customized according to customer specifications specified.



Application



This machine is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily. It can be filled with inert gases, which is especially for a rapid drying of some compound material.

PID 150C Temperature Humidity Test Chamber Environmental Simulation 0

Specifications



Volume 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer Requirements
Temperature Range -70~150C
Humidity Range 20%~98%RH
Accuracy/Uniformity ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H.
Accuracy/Volatility ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H.
Cooling Time 5.0 °C /minute
Inside Material SUS#304 Stainless Steel
Insulation Material High-temperature high-density amino acid ethyl ester foam insulation materials
Cooling System Water-cooled / two-stage compressor
Protection No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system
Accessories Recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball
Controller Touch screen programmable controller
Compressor France's Tecumseh Brand or Germany Bitzer
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz





PID 150C Temperature Humidity Test Chamber Environmental Simulation 1

PID 150C Temperature Humidity Test Chamber Environmental Simulation 2

Company Profile

PID 150C Temperature Humidity Test Chamber Environmental Simulation 3



BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



PID 150C Temperature Humidity Test Chamber Environmental Simulation 4



Main equipment



PID 150C Temperature Humidity Test Chamber Environmental Simulation 5

In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market

PID 150C Temperature Humidity Test Chamber Environmental Simulation 6



The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.



Production Process

PID 150C Temperature Humidity Test Chamber Environmental Simulation 7

PID 150C Temperature Humidity Test Chamber Environmental Simulation 8



PID 150C Temperature Humidity Test Chamber Environmental Simulation 9



PID 150C Temperature Humidity Test Chamber Environmental Simulation 10

Production Details



PID 150C Temperature Humidity Test Chamber Environmental Simulation 11

PID 150C Temperature Humidity Test Chamber Environmental Simulation 12

PID 150C Temperature Humidity Test Chamber Environmental Simulation 13



Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.





Certification



PID 150C Temperature Humidity Test Chamber Environmental Simulation 14

Cooperative partners

PID 150C Temperature Humidity Test Chamber Environmental Simulation 15

PID 150C Temperature Humidity Test Chamber Environmental Simulation 16



FAQ



Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
