| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE |
| Model Number: | BT-10000 |
| Minimum Order Quantity: | 1 SET |
| Price: | 10000USD |
| Packaging Details: | Export carton |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Set/month |

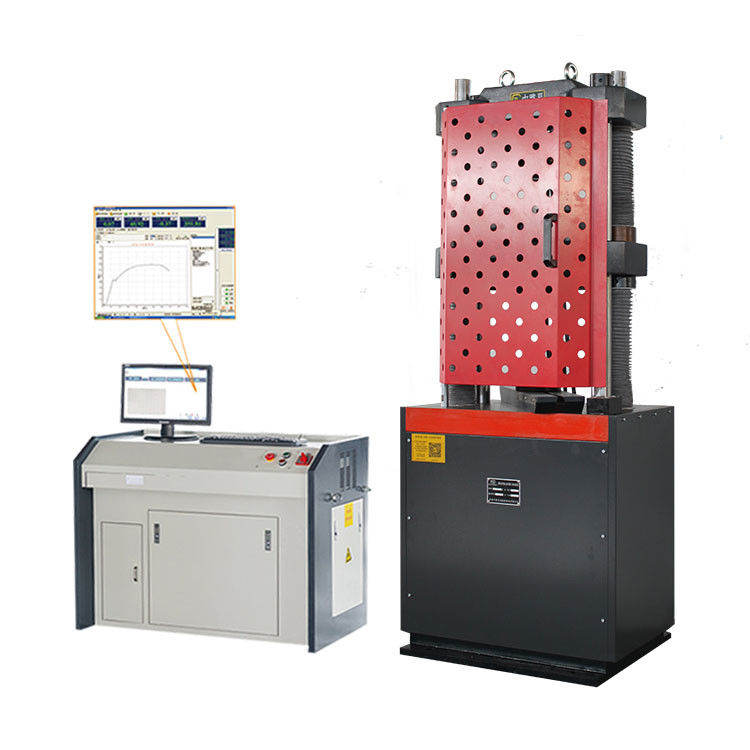

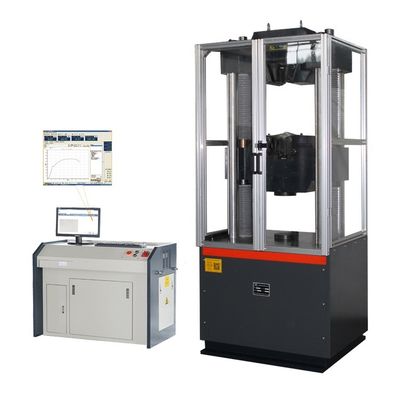

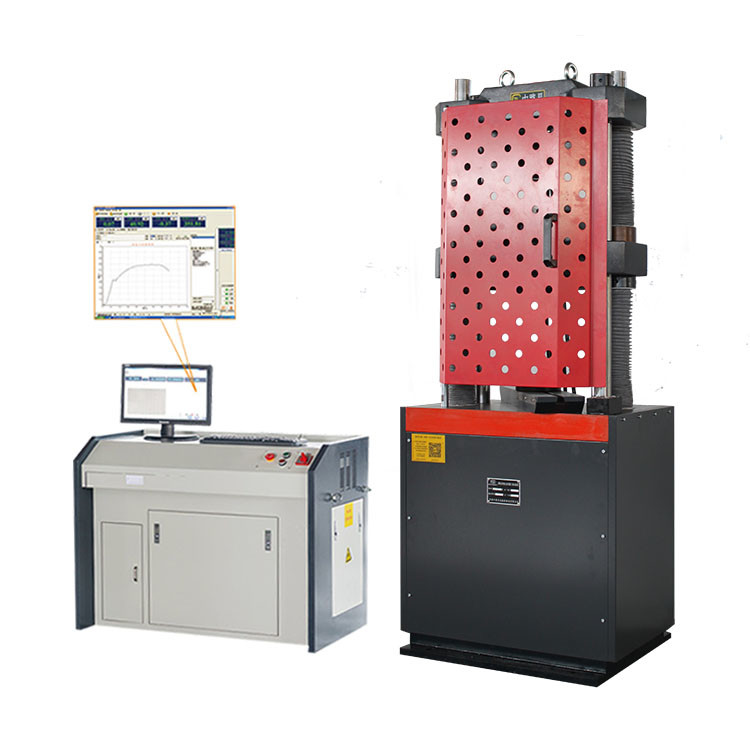

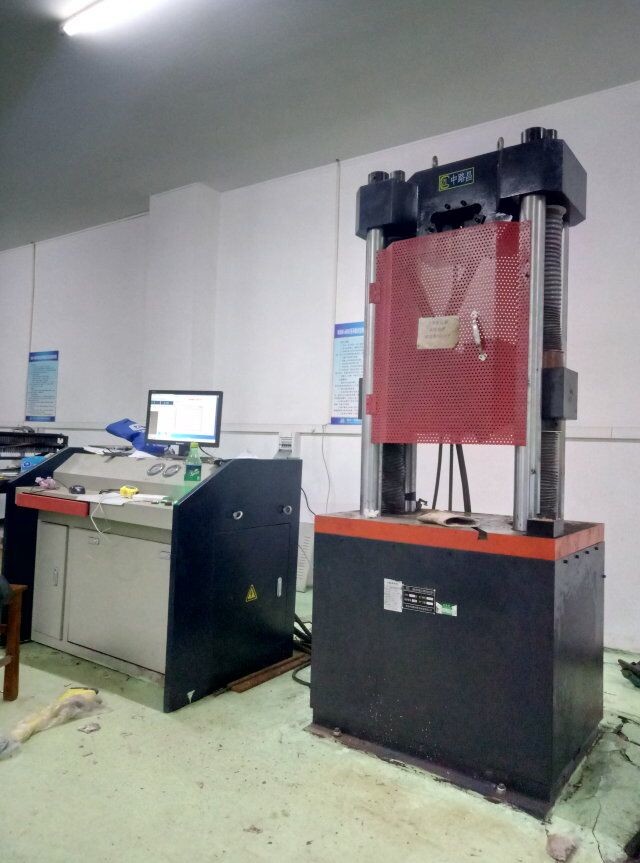

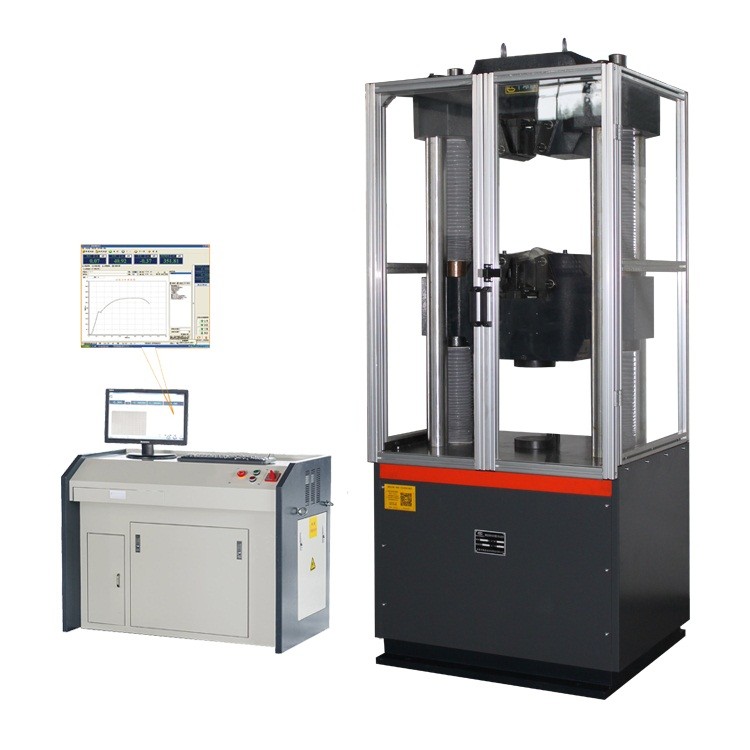

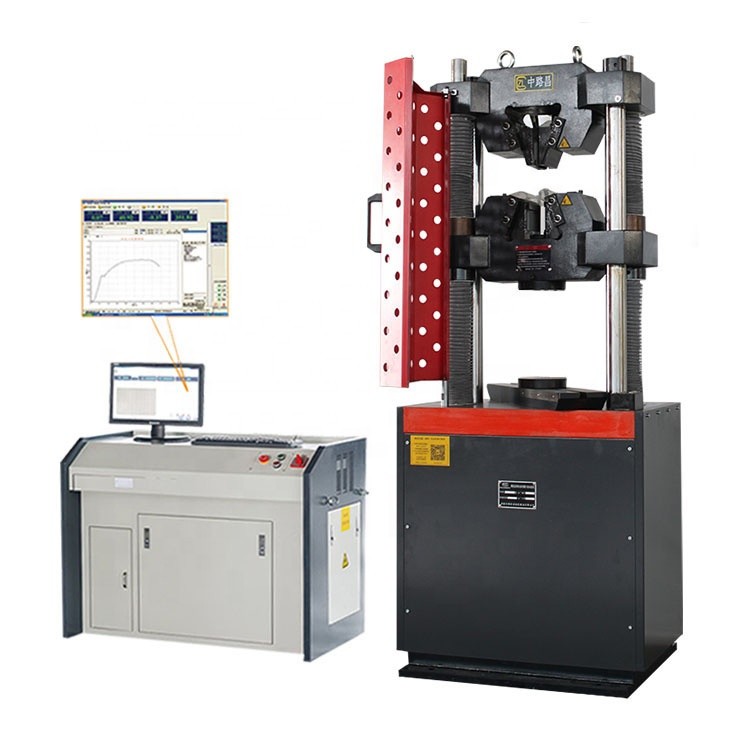

| Product Name: | Universal Testing Machine | Weight: | 3200KGS |
|---|---|---|---|
| Control Cabinet Size: | 1500(L)*620(W)*850(H) Mm | Tetnsile Space:: | 850mm |
| Function: | Tensile Test, Compression Test, 3-point Bending Test | Voltage: | AC220V 50HZ |
| Material: | SUS304, #SUS 304 Stainless Steel | Application:: | Metal Material, Steel Wire, Bar, Plate, Rubber, Plastic Etc |
| High Light: | SUS304 universal tensile tester,sus304 ETM universal tensile tester,sus304 ETM digital universal testing machine |
||
Application
This product is mainly used for the tensile test of metal materials and component, testing the tensile strength, yield strength, stipulated plastic extension strength, elasticity modulus, percentage elongation after fracture and other mechanical performance index. Hydraulic wedge clamping. The testing results can be automatically stored, and the testing report, including the testing data and testing curve would be generated and printed automatically.
Features
1) Computer + Software control and display 6 kinds test curves:
Force-displacement, force-deformation, stress-displacement,
stress-deformation,force-time,displacement-time
2) Can be installed extensometer to test deformation of rubber or metal material
3) Can do high temperature test by high temperature oven and furnace
4) Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures
5) Can be customized height, width, and follow any test standard or customer request
6) Also have ETM Digital Display Type.
Function and performance index
| Model | BOTO-10000 |
| Maximum Testing Force | 1000 kN |
| Class of Testing Machine | 0.5/1 |
| Efficient Measure Range | 2%-100%FS |
| Relative Value Display Accuracy | ±0.5%/±1% |
| Discrimination of Testing Force (mm) | 0.005 |
| Adjustment Range of Stress Rate Control | 1MPa/s~~60MPa/s |
| Accuracy of Stress Rate Control | ±1%/±2% |
| Discrimination of Deformation Measure (mm) | 0.005 |
| Adjustment Range of Strain Rate Control | 0.00025/s~~0.0025/s |
| Accuracy of Strain Rate Control | ±1%/±2% |
| Discrimination of Displacement Measure (mm) | 0.001 |
| Adjustment Range of Displacement Rate Control | 0.00025/s~~0.0025/s |
| Accuracy of Displacement Rate Control | ±0.5%/±1% |
|
Range of Holding Control of Stress, Strain and Displacement |
0.3%~~100%FS |
|
Accuracy of Holding Control of Stress, Strain and Displacement |
±1% |
| Tensile Volume(mm) | 700 |
| Compression Volume(mm) | 550 |
| Column Space(mm) | 550 |
| Round Specimen Clamping Range(mm) | Φ6-Φ45 |
| Flat Specimen Clamping Thickness(mm) | 0-30 |
| Max. Width of Flat Specimen Clamping(mm) | 75 |
| Pressure Plate Dimension(mm) | Φ160 |
| Overall Dimension(mm) | 910*830*2300 |
| Oil Source Console Dimension(mm) | 1150*800*1000 |
| Total Motor Power(kW) | 2 |
| Total Weight(kg) | 3200 |
Company information
BOTO Testing equipment Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.
Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.
BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
