| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE |
| Model Number: | DZ-102 |
| Minimum Order Quantity: | 1 SET |
| Price: | 2500USD |
| Packaging Details: | Export carton |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Set/month |

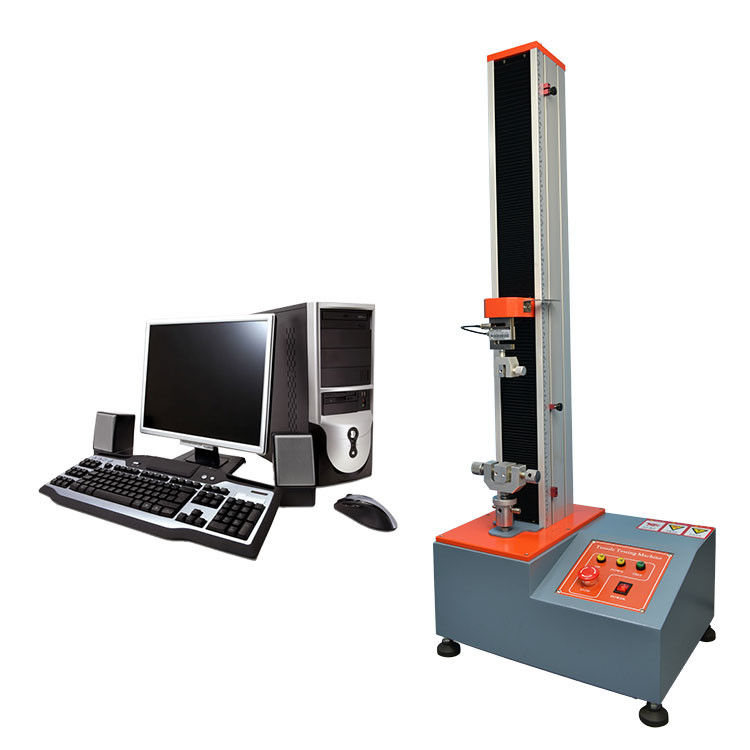

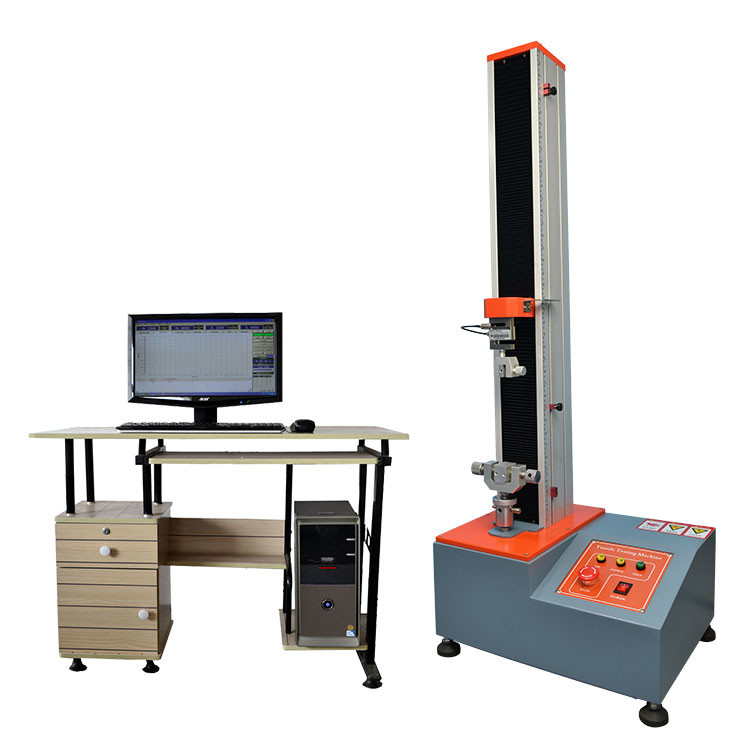

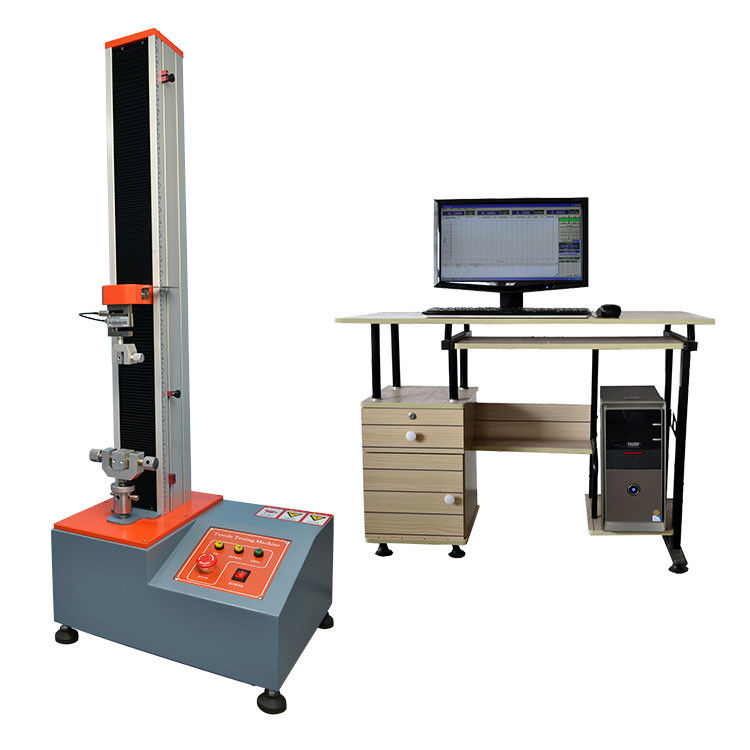

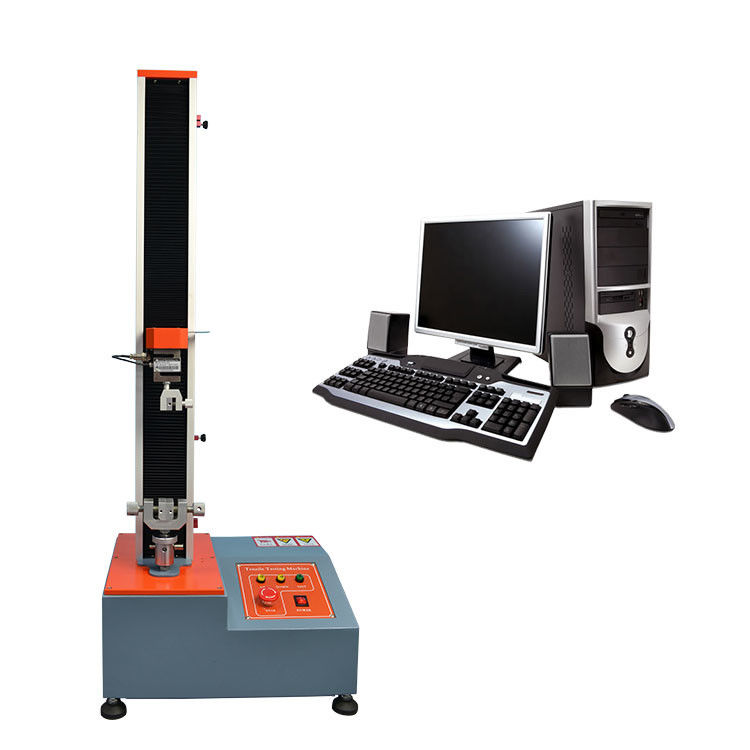

| Product Name: | Universal Testing Machine | Impetus: | AC Servo Motor / Servo Drive Controller |
|---|---|---|---|
| Control Cabinet Size: | 1500(L)*620(W)*850(H) Mm | Test Accuracy: | ±0.5%(0.5 Grade)/±1%(1 Grade) |
| Function: | Tensile Test, Compression Test, 3-point Bending Test | Voltage: | AC220V 50HZ |
| Material: | SUS304, #SUS 304 Stainless Steel | Application:: | Metal Material, Steel Wire, Bar, Plate, Rubber, Plastic Etc |
| High Light: | 100KG Rubber Universal Tensile Testing Machine,TM2101 Universal Tensile Testing Machine,TM2101 universal testing machine compression test |
||
Application
It is the double columns pulling and pressure testing machine,which is suitable for testing the physical property of rubber, plastic film, composite materials, soft packaging materials, plastic hose, adhesive, adhesive tape, adhesive sticker, medical patch, protective film, release paper, combination cover, metal foil, nafion, backplane materials, non-woven fabric, rubber, paper fiber and other materials.
And get the goods relevant physical parameters in tension, compression, bending, shearing, tearing and peeling, puncture, three point bending condition and so on.
1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Features
1. The structure is made of the paint-coated aluminium blanking plate(Aluminiumalloy). The interior
is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which
improve loading efficience and structure rigidity.
2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise.
3. That Using the business computer as the main control machine plus the special testing software of our
4. company can conduct all of testing parameter, work state, collecting data&analysis, result display and
5. printing output.
Function and performance index
| Item Name | Universal Tensile Strength Testing Machine |
| Frame capacity(Kg) | 2,5,10,20,50,100,200Kg |
| Application | metal plate/rod/pipe/ rubber / plastic/wire/textile and so on |
| Test accuracy | ±0.5%(0.5 grade)/±1%(1 grade) |
| Control system | LCD with build-in printer /PC with windows 7 system or XP systerm |
| Motor | panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 650mm/800mm/1000mm not including fixture |
| Test speed range | 0.005~500 mm/min(depend on different motor) |
| Software | TM2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, |
| N/mm, N/mm2) etc… | |
| Safety features | E-Stop |
| Over-load protection | |
| Upper and lower limit switches | |
| Load sensor with automatic retreat | |
| Standards | GB, JIS, ASTM,DIN and so on .(depend on what you test ) |
Company information
BOTO Testing equipment Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.
Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.
BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
