| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE |
| Model Number: | DZ-102 |
| Minimum Order Quantity: | 1 SET |
| Price: | 20000USD |
| Packaging Details: | Export carton |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Set/month |
| Product Name: | Universal Testing Machine | Impetus: | AC Servo Motor / Servo Drive Controller |
|---|---|---|---|
| Weight: | 2500KG | Test Accuracy: | ±0.5% |
| Function: | Tensile Test, Compression Test, 3-point Bending Test | Maximum Test Value: | 2000KN |
| Material: | SUS304, #SUS 304 Stainless Steel | Application:: | Metal Material, Steel Wire, Bar, Plate, Rubber, Plastic Etc |
| High Light: | 2000kn electronic universal testing machine,DZ102 sus304 electronic universal testing machine,sus304 2000kn utm machine test |
||
Application

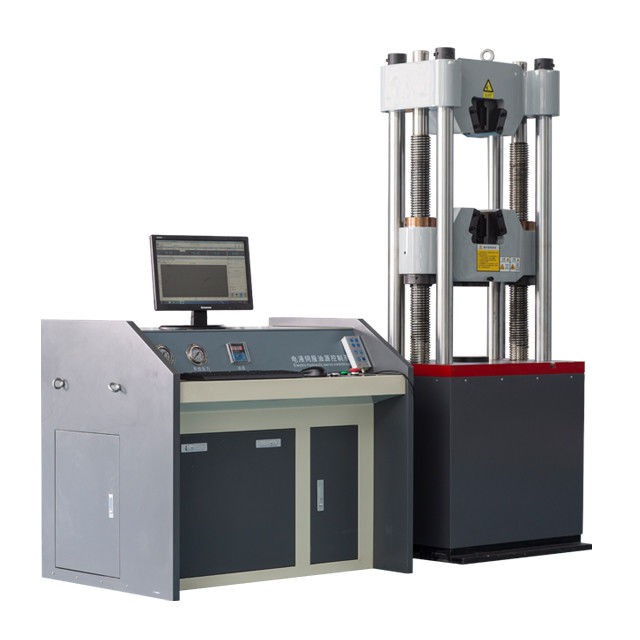

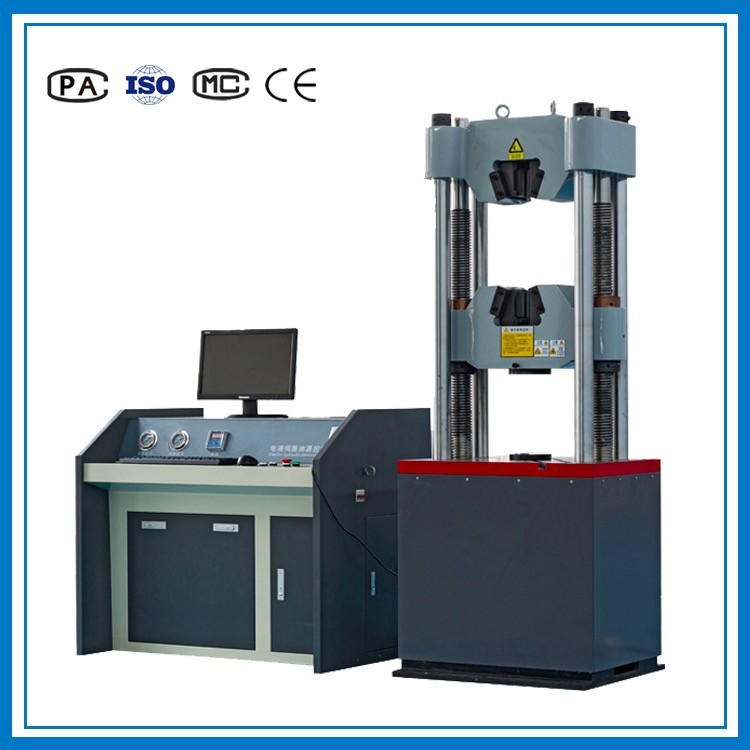

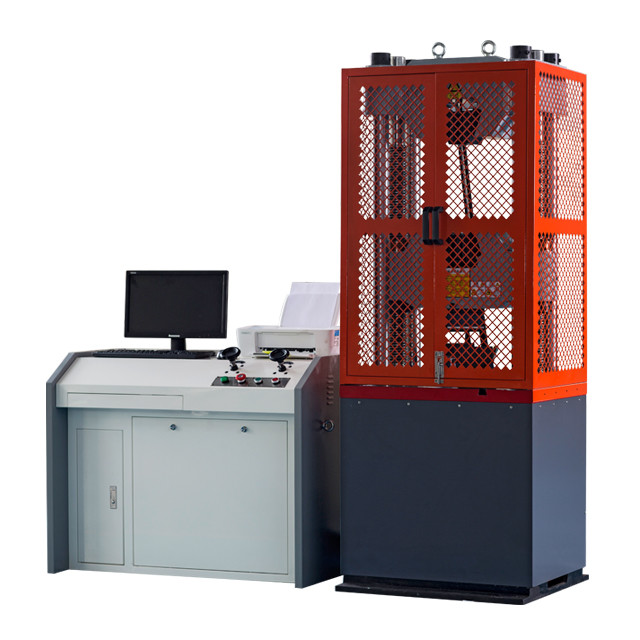

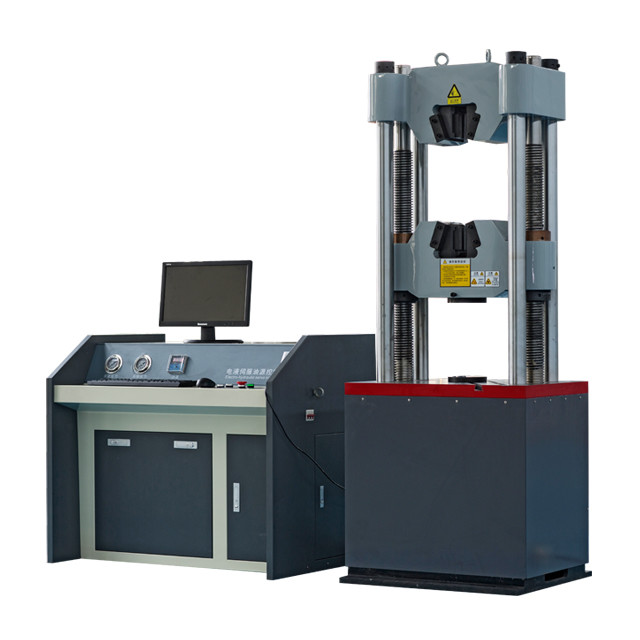

Hydraulic universal testing machine with underneath type oil cylinder and four columns structure is mainly used to do tension, compression, bending, shearing test for metal materials, non-metal material. It is applied for fields of metallurgy, construction, light industry, aviation, aerospace, materials, universities, scientific research units, etc.
.
Features
1. Full computer controlled of testing process.
2. Overload protection will secure operators
3. Adopt oil-hydraulic automatic clamps which can be operated from separate control box
4. Programmable testing software makes LCF testing or cyclic testing become available
Wedge tension jaw processed by advanced technology; increase the stiffness of crosshead under high load and high intensity test.
5. Powerful multifunctional control software will provide more testing methods to meet ASTM, ISO and other testing standards.
Function and performance index
| Product Name | Hydraulic universal testing machine |
| Model | WAW-2000B |
| Test accuracy | 0.5 |
| Maximum test value | 1000KN |
| Clamping method | Automatic tightening |
| Column spacing | 580mm |
| Test space adjustment speed | 100mm/min |
| Tensile compression test space | 650mm |
| Maximum piston stroke | 200mm |
| Curved stick spacing | 450mm |
| Bending rod width | 140mm |
| Allowable bending | 100mm |
| Motor power | 2.3KW |
| Control cabinet dimensions | 1100×650×860mm |
| The main frame dimensions | 900×750×2300(mm) |
| Equipment weight | 2500KG |
| Test force measurement range | 2%~100% of the maximum test force |
| MOQ | 1 set |
| Supply Ability | 300 sets / month |
| Payment | Paypal, T/T, Western Union and Escow |
| Packing | Plastic sealed and sturdy wooden box. |
| If any product meet your demand, please do not hesitate to contact us! | |
Company Profile
BOTO Testing equipment Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.
Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.
BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
Certification
The certificate is valid until June 17, 2024
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
