Sintering Kiln 1200 C 1800C Muffle Furnace Temperature Controller

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE
Model Number: BT-1200Muffle
Minimum Order Quantity: 1 SET
Price: 2500USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/month
Product Name: Lab Muffle Furnace Heating Element Type:: Resistance Wire, SiC Rod, MoSi2 Rod
Heating Rate:: 0~15 Deg C/min Test Accuracy: ±5%
Maximum Temperature:: 1600 ℃ Thermocouple Type:: K Type
Chamber Material:: Ceramic Fiber Rated Temperature:: 1150 ℃
High Light:

1800C muffle furnace temperature controller

,

Sintering Kiln muffle furnace temperature controller

,

sus304 Sintering Kiln muffle furnace 1200 c

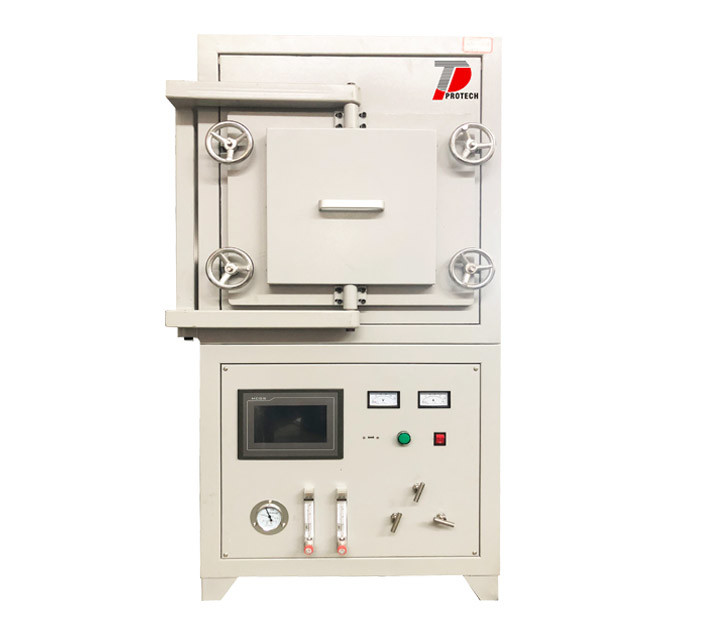

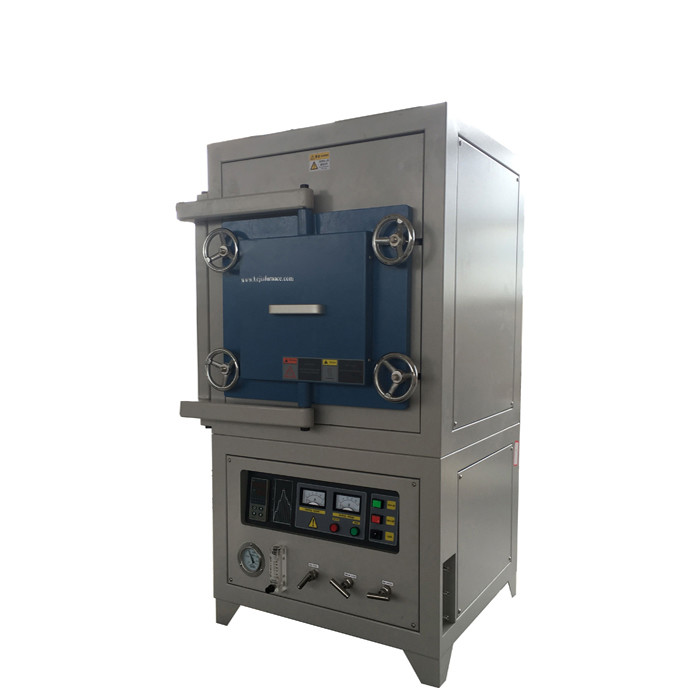

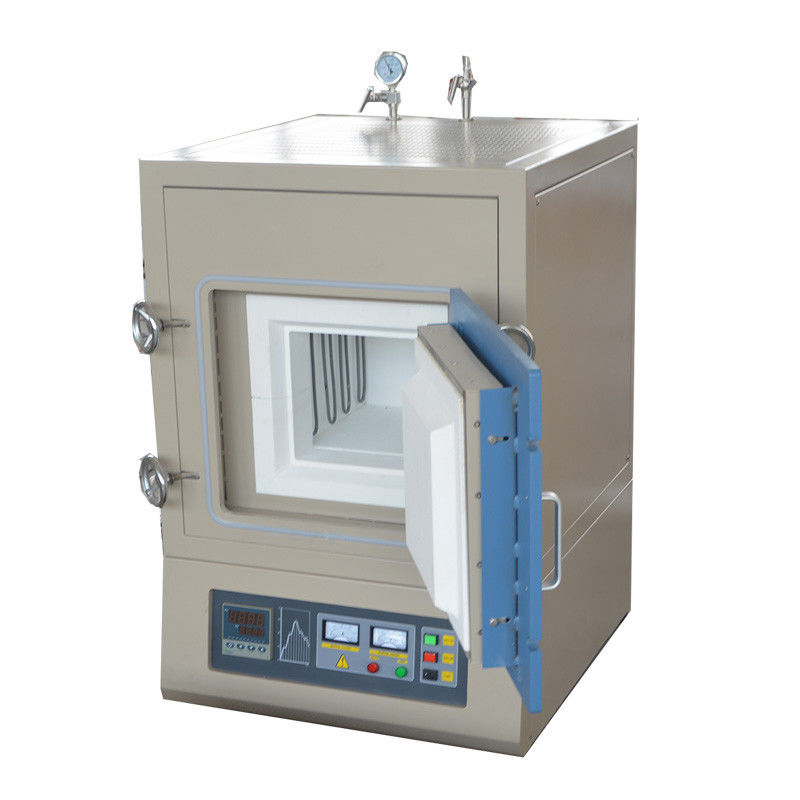

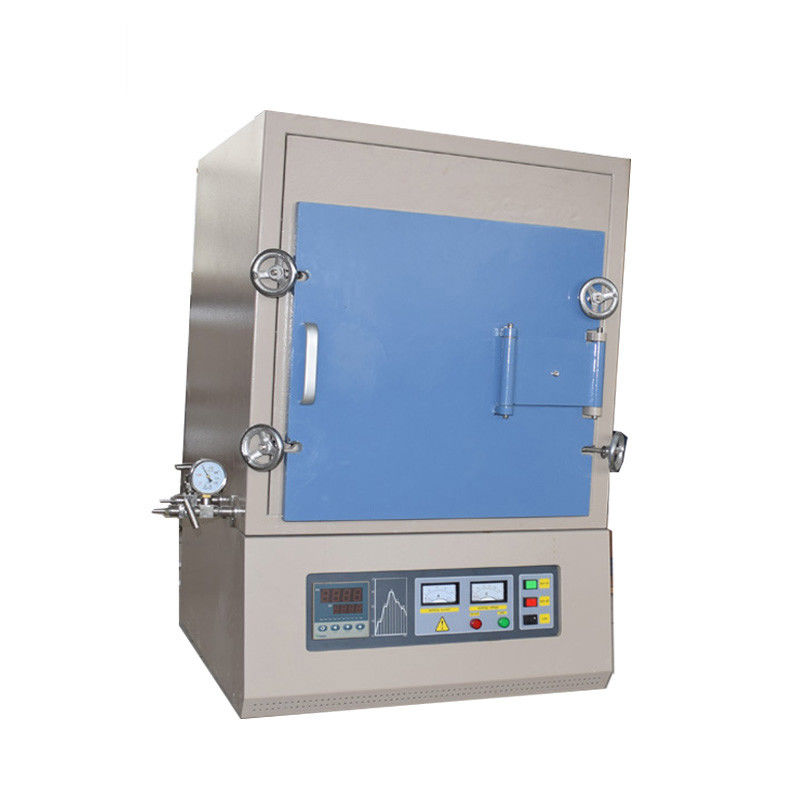

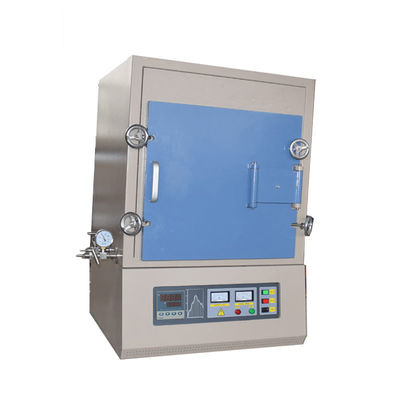

Lab 1200C - 1800C High Temperature Sintering Klin Muffle Furnace

This Series atmosphere muffle furnace is adopted imported heat-preservation material, high purity alumina polycrystalline fiber. Temperature is controlled by double platinum rhodium thermal couple and Al intelligent temperature controller 708P.



The atmosphere furnaces can protect materials from oxidation and decarburization with flowing Nitrogen, Argon and other inert gas, balanced temperature field, fast temperature rising and cooling, energy-efficient, delicate appearance,practical.It is widely used for sintering, annealing, reducing with inert atmosphere in labs of colleges and universities, research institutes and industrial and mining enterprise.





Specification for PT-A Series Atmosphere Furnace
Model
PT-A1200
PT-A1400
PT-A1600
Max Temperature
1200
1400
1600
Work Temperature
1100
1300
1550
Heating Element
resistance wire with Mo
Sic rod
MoSi2 rod
Thermal Couple
K type
S type
B type
Chamber Material
ceramic fiber
Heating Rate
0~15 deg C/ min
Power Supply
110~480V, 50/60HZ
Standard Stocks (effective chamber size) (mm)
L100*W100*H100
L200*W200*H300
L400*W400*400
L600*W600*H600
L150*W150*H200
L300*W300*H300
L500*W500*H500
L800*W800*H800
L200*W200*H200
L300*W300*H400
other customer design size
