150L 225LEnvironmental Chamber Small Humidity Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT
Minimum Order Quantity: 1 SET
Price: 3500USD
Packaging Details: Export carto
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 1000set/month
Power:: Electronic Controller:: #SUS 304 Stainless Steel
Refrigerater:: French Tecumseh Temperature Range:: -70/-40~150C(can Be Customized)
Humidity Range:: 20%~98% Fluctuation:: ±0.5°C ±2.5%RH
Refrigerator:: French Tecumseh Machine Type:: Touch Screen Hot And Humidity Test Machine
Capacity:: 80L/150L/225L/408L/800L/1000L Or Customize
High Light:

225l Benchtop mini environmental chamber

,

150L mini environmental chamber

,

225l 150L small humidity chamber

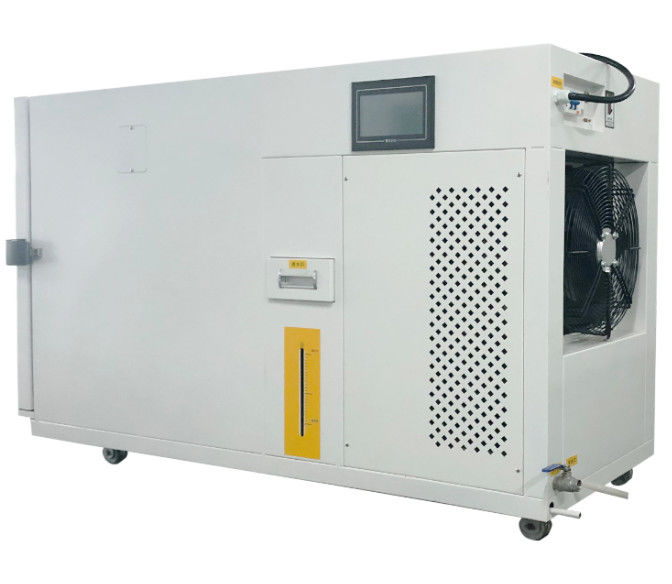

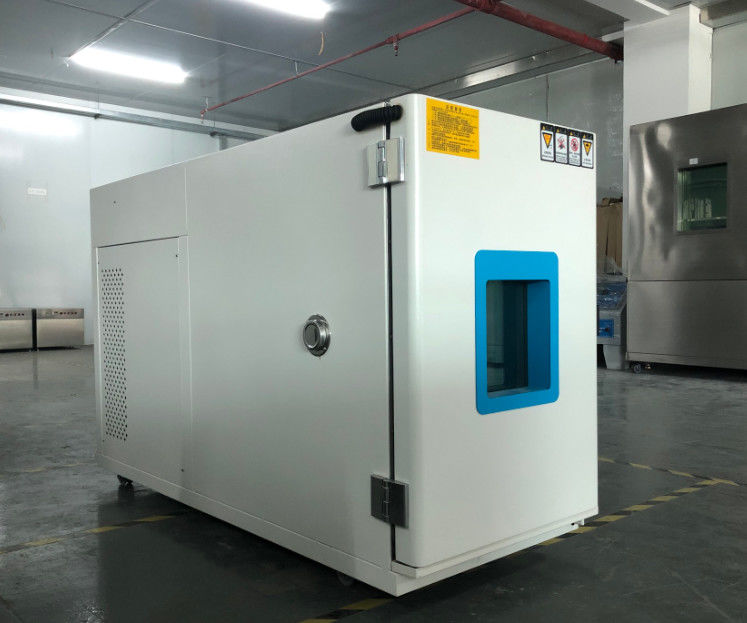

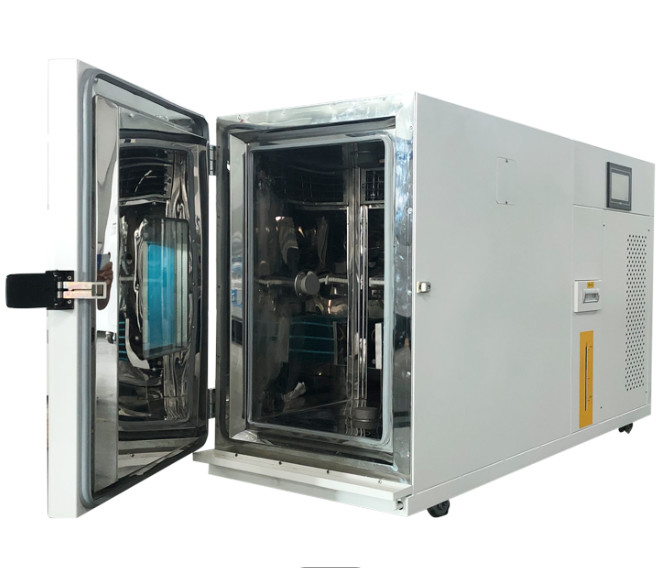

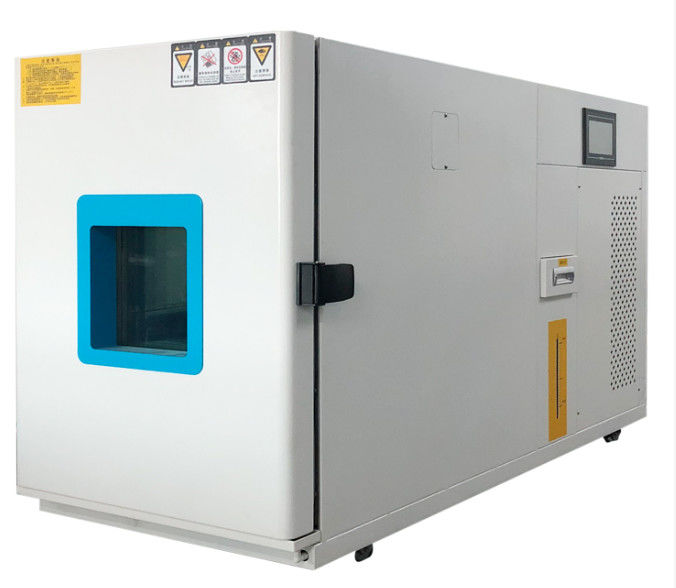

150L 225L Environmental Chamber Small Humidity Chamber

Constant Temperature Humidity Environmental Test Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.





Features


1. Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel;
2. Use new high temperature resistant long shaft motor;
3 Turbine fan;
4. Silicone forced tight;
5. Overtemperature protection, super load automatic power system;
6. Circulation system: air force level cycle;
7. Heating system:PID+S.S.R;
8. The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function;
9. Timer: temperature to time, when the power failure alarm indication;

10. According to customer demand matching glass window can be customized according to customer specifications specified.



Application



This machine is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily. It can be filled with inert gases, which is especially for a rapid drying of some compound material.



Model BT-280 BT-2150 BT-2225 BT-2408 BT-2800

Inner Size

W×H×D(cm)

40×50×40 50×60×50 50×75×60 60×85×80 100×100×80

Outside Size

W×H×D(cm)

93×155×95 100×148×106 117×166×91 140×176×101 170×186×111
Volume (V) 80 L 150L 225L 408L 800L

Temp and Hum

Range

A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C

RH20%-98%





Function





Fluctuation ±0.5°C ±2.5%RH
Deviation ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)

Controller

Analytical

Accuracy

±0.3°C ±2.5%RH
Refrigeration Way Single stage compression refrigeration
Refrigerator French Tecumseh
Refrigerants R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Heater Nickel chrome heating wire heater
Humidifier Semi-closed steam and wet
Water Supplying Way Automatic cycling water supply

Standard

Accessories

1 Observe window(double-deck cavity toughened glass),

1 50mm test hole in the left,

1 PL inner chamber lamp,

2 clapboards,

1 bag of wet and dry bulb,

3 fuses,

1 power line.





150L  225LEnvironmental Chamber Small Humidity Chamber 0

150L  225LEnvironmental Chamber Small Humidity Chamber 1



Production Process

150L  225LEnvironmental Chamber Small Humidity Chamber 2

150L  225LEnvironmental Chamber Small Humidity Chamber 3

150L  225LEnvironmental Chamber Small Humidity Chamber 4



Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.



Certification





150L  225LEnvironmental Chamber Small Humidity Chamber 5

The certificate is valid until June 17, 2024

150L  225LEnvironmental Chamber Small Humidity Chamber 6





FAQ

Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
