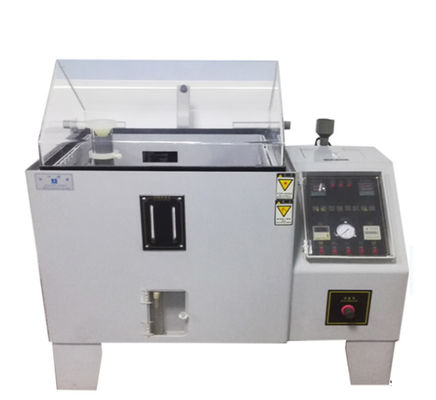

JIS H8502 Salt Fog Cyclic Chamber FRP Salt Mist Corrosion Test

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Delivery Time: 20-30workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000Set/month
Power:: Electronic Spray Capacity:: 1~10cc/h
Accessories:: Test Salt, Barrel, Tool Internal Size:: 60*45*40cm
Certificate:: CE ISO Warranty:: 1 Year
Power Supply:: 220V 50Hz Standard:: ASTM ISO EN JS
Color:: Requirement Display:: LCD
High Light:

FRP salt mist corrosion test


JIS H8502 salt mist corrosion test


JIS H8502 cyclic corrosion test chamber

Salt Fog Corrosion Spray Tester Salt Spray Test Machine Salt Spray Test Chamber



The salt mist chamber tests corrosion resistance ability of the product, after painting, dope,galvanization,anodic treatment, rust prevention and so on to surface treatments for various materials. It is a corrosion test method which can spray the sodium chloride solution onto coated electroplating by atomizing spurts using in the salt mist testing machine.



•The inner and external shell of the chamber is made from PVC materials; Corrosion resistant, shock resistant, easy launder no leakage phenomenon.

• The number display of high-precision temperature control.

• Long-term operation will not be permeated out, water airtight structure, no salt spray overflow. (Optional pneumatic rod, not a gas source close Cover effortless.)

•Tower (or baffle) spray, salt spray evenly distributed, the settlement of the free adjustment of the nozzle without crystallization, double pressure adjustment


•Over-temperature protection; continuous cycle spray or optional (at the orders), excluding air compressor(such as customer needs, random configuration).

Product Features

Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.

The main products with salt:
Neutral salt spray test
Acid salt spray test
High temperature salt spray test (FRP opaque cover)
Mainly used for hardware, electroplating industry for salt spray corrosion resistance test




Model BT-609-60 BT-609-90 BT-609-120 BT-609-150 BT-609-200
Design standard

GB/T 10587-2006, GB/T 10125-1997,

JIS-D0201, H8502, H8610, K5400, Z2371

Test chamber capacity(L) 108L 270L 600L 750L 1000L



Test chamber NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Saturated air cylinder NSS.ACSS 47°C±1°C/CASS 63°C±1°C

Test chamber size


60*45*40 90*60*50 1200*1000*500 1500*1000*500 2000*1000*500

Max capacity

of test liquid(L)

15 25 40 40 40
Power AC220V,10A AC220V,15A AC220V, 30A AC220V, 30A

AC220V, 30A



Product Effects


JIS H8502 Salt Fog Cyclic Chamber FRP Salt Mist Corrosion Test 0

JIS H8502 Salt Fog Cyclic Chamber FRP Salt Mist Corrosion Test 1



Packing & Delivery

  • PP film first
    2. Vacuum package
    3. PP film again
    4. 10mm thickness PU foam to avoid collision
    5. Strong wooden case
    6. Standard BOTO MACHINE MARK

JIS H8502 Salt Fog Cyclic Chamber FRP Salt Mist Corrosion Test 2






 1. How can we guarantee quality?
Continuous testing is performed after production is completed to ensure product stability.
All parts come from manufacturers of world-renowned brands.

2.What can you buy from us?
Checkweigher,Packing machine,CNC machine

3. why should you buy from us not from other suppliers?
We are a manufacturer with ISO9001, CE international certificates,
*12+ years of production experience
* 10+ years of foreign trade experience
*10+ national technology patents
*Exported more than 1,000 units without receiving complaints from customers

4. what services can we provide?
warranty:12 months free warranty, life-long maintenance.
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
