|Power::||Electronic, 220V||Usage::||Spray Nozzle For Salt Spray Tester|
|Test Chamber Temperature::||NSS.ACSS 35°C±1°C/CASS 50°C±1°C||Design Standards::||GB/T 10587-2006,GB/T 10125-1997, JIS-D0201,H8502,H8610|
|Test Chamber Capacity::||180L,270L,600L,1440LN Or Custom Made||Warranty::||1 Year|
|PH::||6.5~7.2 3.0~3.2||Controller::||PID Or LCD Touch Screen|
cyclic corrosion test astm standard,
Salt cyclic corrosion test astm standard,

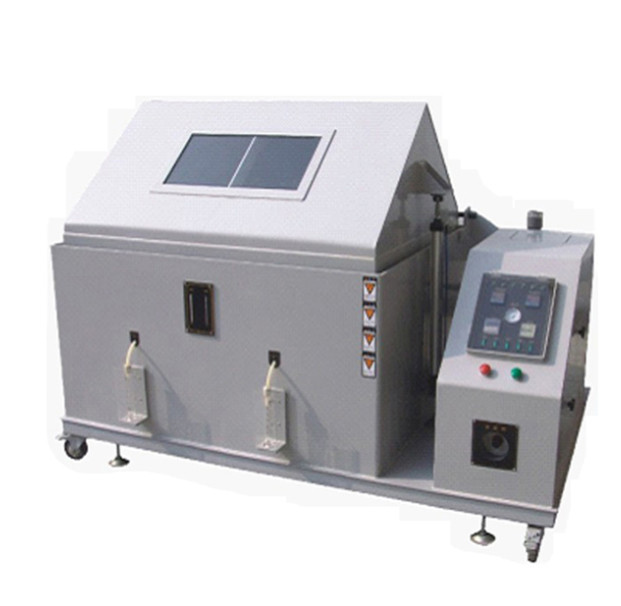

270L salt spray corrosion test chamber
It is widely used in the salt spray corrosion test plating, paints, coatings,
automotive and motorcycle parts, aerospace and military components, protective layer of metallic material and electrical and electronic systems and other industrial products .
1) Integrally molded, corrosion-resistant, shock, easy to clean, no leakage.
2) Tower spray system, smoke evenly distributed free to adjust the amount of the settlement.
3) PVC lid cover , the use of PVC cover can be clearly seen inside the test items and spray conditions.
4) Adopt water seal structure, keep there no salt overflow.
5) Water sealed tank, the bottom of the box body is using water system, drainage and convenient cleaning.
6) Easy inspection and maintenance about the Line control panel and other components are fixed in position for, the use of open-style side door lock, not only beautiful, but also easy to maintain.
7) PID temperature controller with high accuracy, resolution +0.1 ° C.
8) All are equipped with circuit breakers, all heaters are electronic and mechanical devices with overheating protection, power distribution box with fire-resistant resin.
9) Continuous or periodic spraying, a double over-temperature protection, safety and reliability.
10) Security: With leakage protection,Short-circuit alarm,Water alarm, Overtemperature protection
GB/T 2423.17-1993,GB/T 2423.18-2000,GB/T 10125-1997,ASTM.B117-97,
JIS H8502,IEC68-2-11,IEC68-2-52 1996,GB.10587-89,
CNS.4158,CNS.4159CASS,GB/T 12967.3-91 CASS,
|Test chamber temperature||(NSS ACSS)35℃±1℃/(CASS)50℃±1℃|
|Pressure barrel temperature||(NSS ACSS)47℃±1℃/(CASS)63℃±1℃|
|spray quantity||1.0-2.0ml/80cm ,2 hours|
|Relative humidity||Above 85%|
|spray mode||Continuous spray|
BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
Main equipment include:
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
1. How can we guarantee quality?
Continuous testing is performed after production is completed to ensure product stability.
All parts come from manufacturers of world-renowned brands.
