Home > Products > Salt Spray Test Chamber >

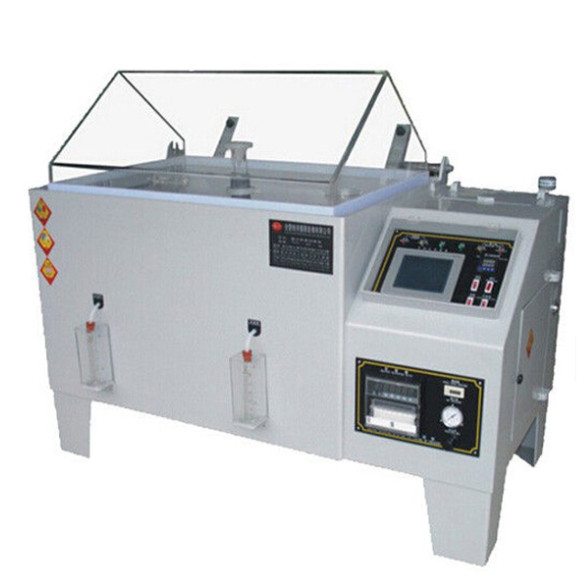

Cabinet CNS GB Machine 108L Corrosion Testing Equipment

108L Corrosion Testing Equipment

CNS GB aging Corrosion Testing Equipment

CNS GB aging Corrosion testing machine

Place of Origin:

CHINA

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

Request A Quote

Cabinet CNS GB Machine 108L Corrosion Testing Equipment

Product Details

Power::

Electronic, 220V 50HZ

Design Standard::

GB/T 10587-2006, GB/T 10125-1997

Test Chamber Volume::

108L/270L/600L/1440L Or Custom Made

Spray Quantity::

1.0~2.0ml/80cm2/h

PH:

6.5~7.2 3.0~3.2

Test Chamber Temperature::

NSS.ACSS 35°C±1°C/CASS 50°C±1°C

Saturated Air Cylinder Temperature::

NSS.ACSS 47°C±1°C/CASS 63°C±1°C

Color::

Customer's Request

Warranty::

12months

Application::

Hardware, Battery Etc

Highlight:

108L Corrosion Testing Equipment

CNS GB aging Corrosion Testing Equipment

CNS GB aging Corrosion testing machine

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

Negotiation

Packaging Details

PLY-WOODEN CASE

Delivery Time

20-30workdays

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000Set/month

Customized Chamber Size Salt Spray Test Chamber Including Test Area 0.09m2 to 2.25m2 and Test Temperature 35C to 55C Perfect for Control Testing

Get Best Price

Corrosion-resistant PP Material Salt Spray Testing Chamber with Test Temperature 35C to 55C Delivering Corrosion Resistance Assessment

Get Best Price

Video

Salt Fog Test Chamber 0.09m2~2.25m2 B117 Singleton Salt Spray Chamber Salt Spray Test Astm B117

Get Best Price

Video

Salt Spray Test Chamber 95%RH 0.09m2~2.25m2 0.3mm~0.8mm Spray Nozzle

Get Best Price

Contact Now

Product Description

Corrosion Testing Equipment Cabinet Price Mist Chamber Salt Spray Tester Salt Spray Test Chamber

Reference standard The brine spray test mainly refers to the reference standard: JIS, ASTM, CNS, GB standard parameter setting.

Box material

A test case is made of light gray PVC board with a thickness of 5mm and a durable temperature of 85 ℃. The structure is firm.

The second laboratory cover is sealed with transparent acrylic impact resistant plate with a thickness of 5mm. Double layer thickening inside and outside the edge to prevent distortion due to long-term high temperature. The thickness is 15mm.

It is easy to clean and operate.

The best heat preservation effect is achieved by using sus ා 304 stainless steel high pressure resistant barrel.

5. The test sample rack adopts the plane dividing type, which can adjust the angle arbitrarily, the fog falling on all sides is uniform, the fog receiving is completely consistent, the test results are accurate, and the number of test samples is large.

Air supply system

The air pressure is 1kg / cm2 and adjusted in two stages. The first section is about 2kg / cm2, which is equipped with inlet air filter and drainage function. The second stage is precisely adjusted 1kg / cm2, 1 / 4 pressure gauge, with accurate display.Spray mode
One bernoult principle absorbs salt water and then atomizes. The atomization degree is uniform, and there is no blocking crystallization phenomenon, which can ensure the continuous test. The two nozzles are made of tempered glass, which can adjust the spray volume and the ejection angle. Three spray volume 1~2ml/h can be adjusted (ml/80cm2/h standard requires testing 16 hours for average). The metering cylinder adopts embedded installation, which is beautiful and neat in appearance, convenient for observation and reduces the installation space of the instrument.

Characteristics:
1. Spray nozzle the heart of teser adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.

2. Controller is digital type microcomputer which delivers precision temparature.

3. Parameters show on the display screen such as temparature, humidity, pressure, spray capacity and time.

4. Test specifications are accept worldwild.

Specifications


			No

			Item

			Data

			1

			Model

			zt-60

			2

			Inner box size

			600 * 450 * 400 * mm (w * D * h *)

			3

			Outer box size

			1075 * 630 * 1185 * mm (w * D * h *)

			4

			Power supply

			220 V single phase 1.5 kW, 50 Hz

			5

			brine spray test

			NSS and ACSS.

			6

			Laboratory

			35 ℃± 1 ℃.

			7

			Pressure air barrel

			47 ℃± 1 ℃.

			8

			Corrosion resistance test

			CASS.

			9

			Laboratory

			50 ℃± 1 ℃.

			10

			Pressure air barrel

			63 ℃± 1 ℃

Product Effects

Production Process

Production Details

​

Factory Inspection

We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.

FAQ

 1. How can we guarantee quality?

Continuous testing is performed after production is completed to ensure product stability.

All parts come from manufacturers of world-renowned brands.

2.What can you buy from us?

Checkweigher,Packing machine,CNC machine

3. why should you buy from us not from other suppliers?

We are a manufacturer with ISO9001, CE international certificates, *12+ years of production experience
* 10+ years of foreign trade experience
*10+ national technology patents
*Exported more than 1,000 units without receiving complaints from customers

4. what services can we provide?
warranty:12 months free warranty, life-long maintenance.

Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;

Language Spoken:English,Chinese
