|Power::||Electronic||Usage:||Universal Testing Machine|
|Inner Dimension::||600*900*500mm (D*W*H)||Overall Dimension::||870*1400*1150mm(D*W*H)|
|Temperature Range::||Ambient To 60 Degree||Humidity Range::||95%to 98% R.H|
|Salt Spray Type::||Continuous/Periodic||Continuous/Periodic:||Platinum Resistance PT100 Ω/MV|
|Spraying System::||Tower Spray And Nozzle||Power Supply::||AC380V /220V 50Hz|

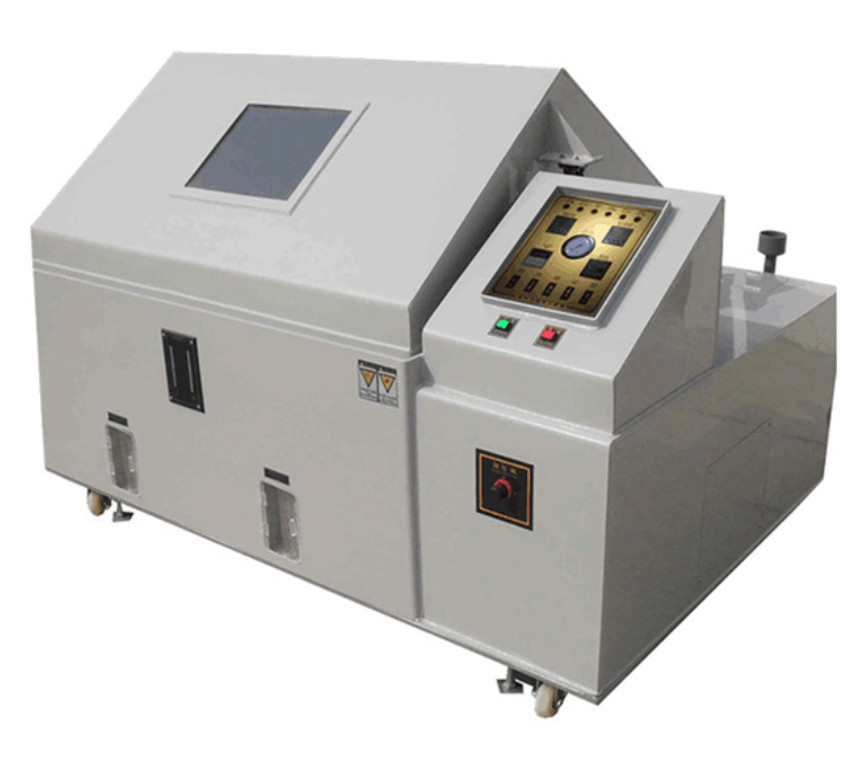

TEMI880 Salt Spray Test Chamber,
PT100 MV Salt Spray Test Chamber,
TEMI880 salt spray test machine
1.Controller: Controller imported from Korea "TEMI-880" 16-bit true color touch screen, the program group of 1,20 groups, the total number of cycles 1200 times.
2, the temperature sensor: anti-corrosion platinum resistance PT100Ω / MV
3, heating method: using titanium high-speed heating heater, multi-point layout, good stability and uniformity
4, spray system: tower spray system, advanced quartz nozzle, no crystallization for a long time, fog particles are evenly distributed
5, salt collection: in line with the national standard funnel and standard measuring cylinder, adjustable settlement controllable
6, bipolar decompression, to ensure that the spray pressure stability.
Salt Spray Corrosion Test Machine used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil.
1.GB/T 2423.17-1993 salt spray test
2.GB/T 2423.18-2000 salt spray test
3.GB/T 10125-1997 salt spray test
4.ASTM.B117-97 salt spray test
5.JIS H8502 salt spray test
6.IEC68-2-11 salt spray test
7.IEC68-2-52 1996 salt spray test
8.GB.10587-89 salt spray test
9.CNS.4158 salt spray test
10.CNS.4159 CASS Accelerated acetic acid copper salt spray test
11.GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
|Salt Fog Corrosion Testing Machine / Salt Spray Ageing Chamber / Salt Mist Resistance Tester Salt Spray Test Chamber|
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.
3) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
1. How can we guarantee quality?
Continuous testing is performed after production is completed to ensure product stability.
All parts come from manufacturers of world-renowned brands.
