Power:: | Electronic | Body Materials:: | SUS#304 Stainless Steel Plate |
---|---|---|---|
Spray Volume:: | 1.0~2.0ml/80cm2/h | Laboratory Temperature:: | NSS.ACSS 35°C ±1°C/ CASS 50°C ±1°C |
Temp. Air:: | NSS.ACSS 47°C±1°C/CASS 63°C±1°C | PH:: | 6.5~7.2 3.0~3.2 |
Air Pressure:: | 86~ 106Kpa | The Spraying Volume:: | 1.0~2.0ml/80cm2/h |
Volume Of Test Box:: | 270L | Inner Size(L*W*H):: | 90*60*50cm |
Highlight: | 2.0ml salt water spray test,80cm2 h salt water spray test,80cm2 h cyclic corrosion test |

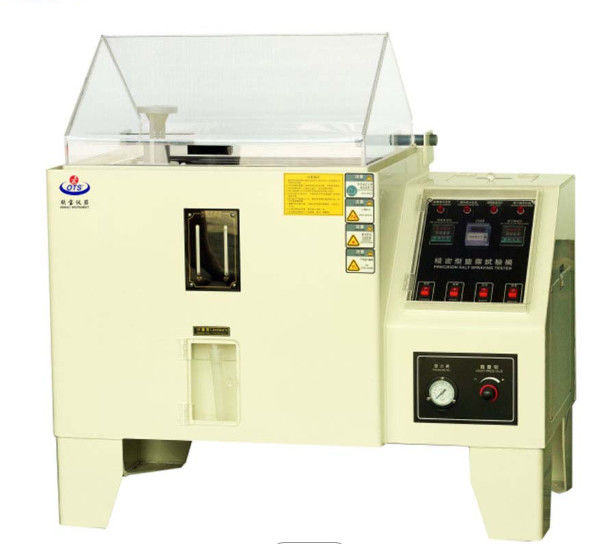

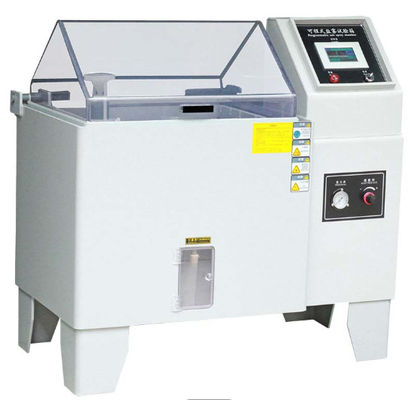

Environmental salt spray test chamber/nozzle salt spray/Cyclic corrosion salt spray machine
Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Specifications:
Environmental salt spray test chamber/nozzle salt spray/Cyclic corrosion salt spray machine
1.The Salt Spray Test Machine is made of transparent materials so that the operator can see the tested sample in it and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow.
3.Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
4.Control System High precision P.I.D. temperature control meter with its error ±0.1°C.
Features:
Environmental salt spray test chamber/nozzle salt spray/Cyclic corrosion salt spray machine
*Automatic / manual water system has automatically add the water level of the water level is low, the test is not interrupted. Water level is insufficient warning to ensure that the use of safety.
*Precision glass nozzle (PYREX) made of special glass, mist spread evenly and naturally fall on the specimen, and 4000 hours of continuous use, and to ensure that no crystalline salt obstruction.
*Attached double over-temperature protection, over-temperature warning display, and cut off the heater power to ensure that the use of safety.
*Inlet temperature controller using a digital display, PID control, error of ± 0.1 ° C.
*Laboratory using direct steam heating, heating up fast, and even reduce the standby time, heating tubes with high corrosion-resistant titanium tubing.
*Spray tower attached to the conical dispersion, with oriented fog, the function of regulating the amount of fog and uniform loading amount of fog.
*The saturated air barrel using Henry's law, be heated humidification, and provide the required humidity of the laboratory. Its made of SUS # 304 stainless steel insulation effect, with visual connectivity and drainage switch, in order to visually saturated air the barrel water level and cleaning.
*With automatic defogging device that can clearly watch the specimen in test chamber.
*Fog sealing sink, water seal to prevent fogging leakage.
*Laboratory sealing cover material for Taiwan imported PVC board, pneumatic cylinder automatic lifting way, easy to operate safe and reliable.
*The import timer using digital display, accurate timekeeping, H. M. seconds S can be segmented set any required test time, adjust the time range from 0.01 seconds to 9999 hours.
* Reagent supplement bottles hidden attached water level viewing window, easy to clean and should not be broken.
*Laboratory basket rack using plane indexing rack, can arbitrarily adjust the angle, four off the fog, and the fog direction completely consistent.
Corresponding Standard:
Environmental salt spray test chamber/nozzle salt spray/Cyclic corrosion salt spray machine
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001
GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C EIA - 364-59
Design standard | ISO-9227 ASTM-B117 JIS-D0201 H8502 H8610 K5400 Z2371 |
Internal size | A:60×45×40cm / B:90×60×50cm |
Temperature | Lab: NSS.ACSS35°C±1°C / CASS 50°C±1°C |
Saturated air cylinder | NSS.ACSS35°C±1°C / CASS 50°C±1°C |
Spray capacity | 1~10cc/h |
Structure material | F.R.P |
Accessories | Test salt, barrel, tool |
Power |
1φ,220V/50H |
BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
Main equipment
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
Main market
The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
Production Details
Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.
Workshop Machine
Certification
TRADING PROCESS
Cooperative partners
Our Service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our technical team
6.Warranty period 12 months
