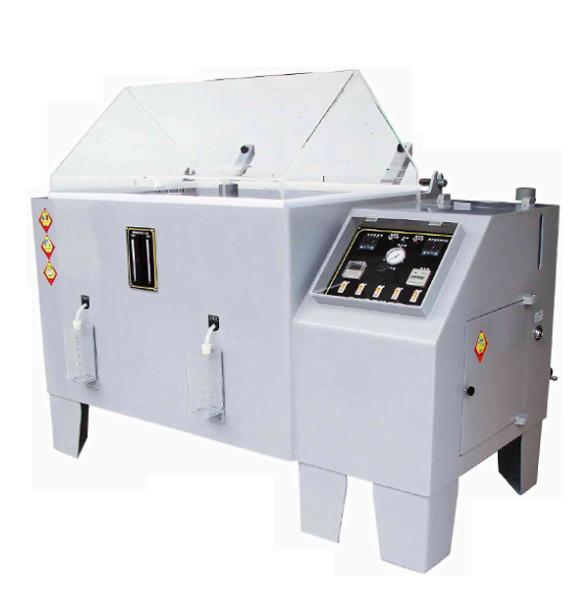

ASTM NSS Lab Humidity Salt Spray Test Chamber Electronic Brine

NSS Salt Spray Test Chamber

ASTM Salt Spray Test Chamber

NSS lab humidity chamber

Place of Origin:

CHINA

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

Request A Quote

ASTM NSS Lab Humidity Salt Spray Test Chamber Electronic Brine

Product Details

Power::

Electronic

Inner Box Size::

600 * 450 * 400

Outer Box Size::

1075 * 630 * 1185 * Mm (w * D * H *)

Power Supply::

220 V Single Phase, 1.5 KW, 50 Hz

Technical Basis::

Operate And Set According To JIS, ASTM, CNS, GB

Salt Spray Test::

NSS, ACSS.

Laboratory::

35 ℃± 1 ℃.

Pressure Air Barrel::

47 ℃± 1 ℃.

Time Integrator::

0 ~ 99999.99h

Pressure Air Tank::

63 ℃± 1 ℃.

Highlight:

NSS Salt Spray Test Chamber

ASTM Salt Spray Test Chamber

NSS lab humidity chamber

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

Negotiation

Packaging Details

PLY-WOODEN CASE

Delivery Time

20-30workdays

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000Set/month

Spray Pressure 0.2Mpa-0.4Mpa Salt Spray Test Chamber With Customized Size Test Temperature 35C-55C

Get Best Price

Video

0.09m2-2.25m2 Test Area Salt Spray Test Chamber with Corrosion-resistant PP Material AC 220V 50Hz Power Source

Get Best Price

Video

Salt Spray Testing Chamber with ASTM B117 Test Method and 1-2ml/80cm2/h Spray Volume

Get Best Price

Video

Advanced Salt Spray Test Chamber for Corrosion Resistance Evaluation

Get Best Price

Contact Now

Product Description

Salt Fog Chamber Corrosion Tester Equipment Salt Spray Test Machine Salt Spray Test Chamber

Reference standard The brine spray test mainly refers to the reference standard: JIS, ASTM, CNS, GB standard parameter setting.

Application

ASTM NSS Lab Humidity Salt Spray Test Chamber Electronic Brine 0

Structure introduction

Box material

A test case is made of light gray PVC board with a thickness of 5mm and a durable temperature of 85 ℃. The structure is firm.

The second laboratory cover is sealed with transparent acrylic impact resistant plate with a thickness of 5mm. Double layer thickening inside and outside the edge to prevent distortion due to long-term high temperature. The thickness is 15mm.

It is easy to clean and operate.

The best heat preservation effect is achieved by using sus ා 304 stainless steel high pressure resistant barrel.

5. The test sample rack adopts the plane dividing type, which can adjust the angle arbitrarily, the fog falling on all sides is uniform, the fog receiving is completely consistent, the test results are accurate, and the number of test samples is large.

Air supply system The air pressure is 1kg / cm2 and adjusted in two stages. The first section is about 2kg / cm2, which is equipped with inlet air filter and drainage function. The second stage is precisely adjusted 1kg / cm2, 1 / 4 pressure gauge, with accurate display.Spray mode
One bernoult principle absorbs salt water and then atomizes. The atomization degree is uniform, and there is no blocking crystallization phenomenon, which can ensure the continuous test. The two nozzles are made of tempered glass, which can adjust the spray volume and the ejection angle. Three spray volume 1~2ml/h can be adjusted (ml/80cm2/h standard requires testing 16 hours for average). The metering cylinder adopts embedded installation, which is beautiful and neat in appearance, convenient for observation and reduces the installation space of the instrument.
PRODUCT SPECIFICATIONS

			No

			Item

			Data

			1

			Model

			zt-60

			2

			Inner box size

			600 * 450 * 400 * mm (w * D * h *)

			3

			Outer box size

			1075 * 630 * 1185 * mm (w * D * h *)

			4

			Power supply

			220 V single phase 1.5 kW, 50 Hz

			5

			brine spray test

			NSS and ACSS.

			6

			Laboratory

			35 ℃± 1 ℃.

			7

			Pressure air barrel

			47 ℃± 1 ℃.

			8

			Corrosion resistance test

			CASS.

			9

			Laboratory

			50 ℃± 1 ℃.

			10

			Pressure air barrel

			63 ℃± 1 ℃

Product Effects

BOTO ADVANTAGE

Customers photos

OUR TEAM

Packing & Delivery
PP film first

	2. Vacuum package

	3. PP film again

	4. 10mm thickness PU foam to avoid collision

	5. Strong wooden case

	6. Standard BOTO MACHINE MARK

FAQ

 1. How can we guarantee quality?

Continuous testing is performed after production is completed to ensure product stability.

All parts come from manufacturers of world-renowned brands.

2. What can you buy from us?

Checkweigher,Packing machine,CNC machine

3. why should you buy from us not from other suppliers?

We are a manufacturer with ISO9001, CE international certificates, * 12+ years of production experience
* 10+ years of foreign trade experience
* 10+ national technology patents
* Exported more than 1,000 units without receiving complaints from customers

4. what services can we provide?
warranty: 12 months free warranty, life-long maintenance.

Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;

Language Spoken:English,Chinese
