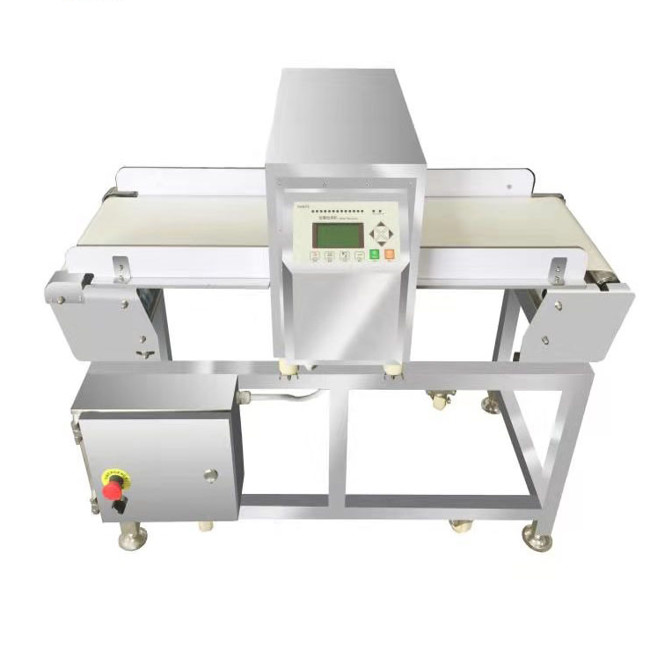

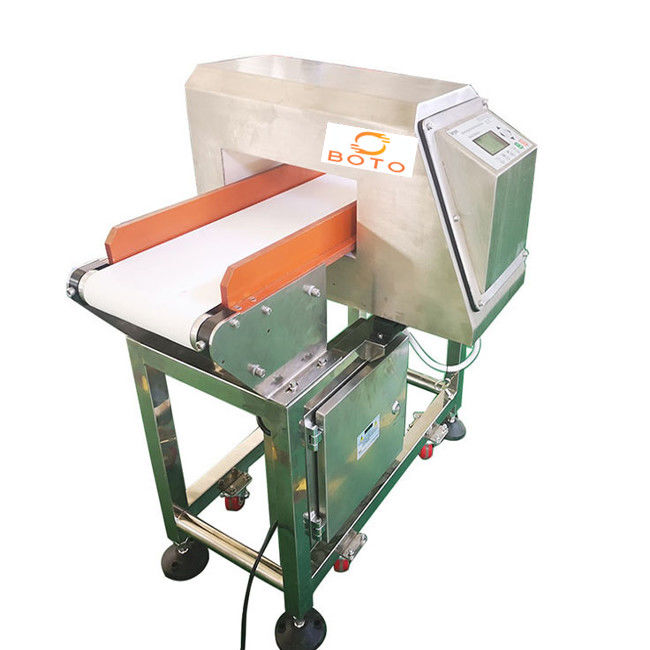

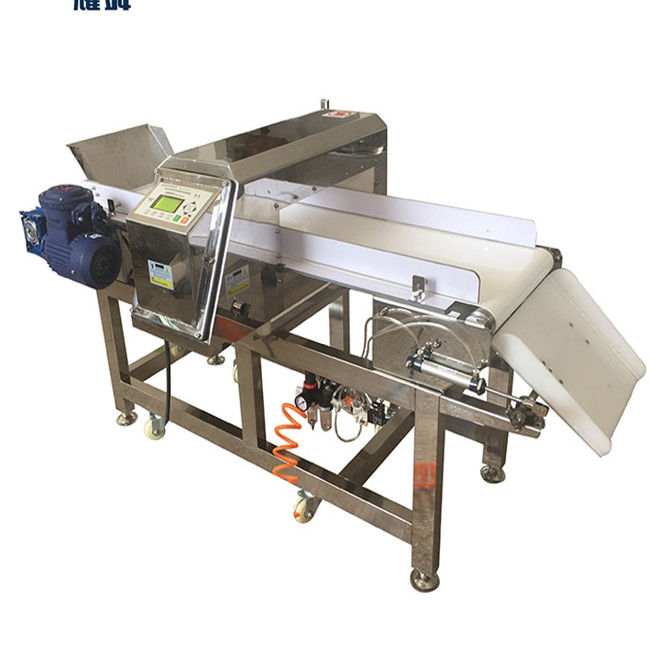

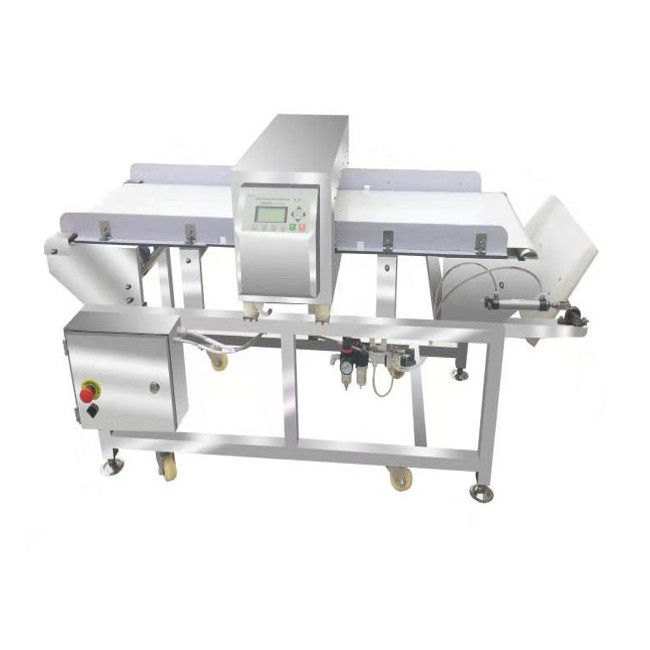

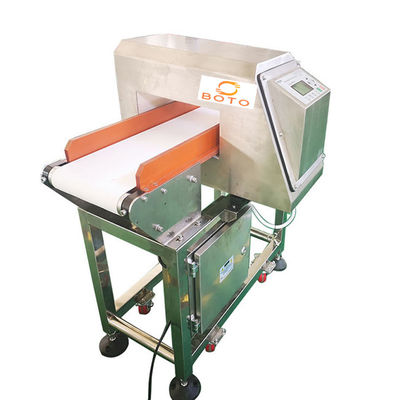

Food Industrial 50Hz 220V Buzzer Meat Metal Detector Safeline

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT1503
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Payment Terms: D/A, D/P, T/T, Western Union, L/C
Supply Ability: 100000Set/month
Detection Type:: Buzzer,Alarm Lamp,Alarm Stop Run Model:: BOTO-220/300(Different Size ,pls Note Your Product Size)
Detection Depth:: Different ,as Detail Pages Showing Sensitivity:: Fe,no-Fe,sus304 Different
Weight:: 3-30kg(pls Note Your Prpduct Weight ) Power Supply:: 380/220/110V 50/60Hz 200w
Display:: LCD Screen Alarm:: Buzzer
High Light:

220V Buzzer meat metal detector

,

50Hz meat metal detector

,

50Hz safeline metal detector

Food Industrial Metal Detectors Industrial Metal Detectors

1. Description:
Metal Detector For Food industry is new arrival food metal detector . It has touch screen , 10 level adjustable sensitivity and memory 10 kinds of products etc .But also it has more higher reliability and stability on check products with water and salt.
1. Adopt the theory of balance, more reliable;
2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.
4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.
5. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.
6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without
manual participation to adjust technical parameters.
7. It can store more than 100 kinds of testing data of products.
8. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.
9. Suitable for wet, dry ,dust ,dew environment , made of stainless steal ,has HACCP attestation , waterproof IP65

2. Scope of use:
Metal Detector For Food industry is widely used in the detection of meat, frozen meat, sea food, mushrooms, drinks ,fruits ,
Sugar, Salt and vegetables. Rejection System Food Metal Detector can detect ferrous and non-ferrous and other metal objects , the
sensitivity can be adjusted separately , with memory function can be stored 10 kinds of test material·Detector with audible and
visual alarm , and automatically exclude , stop , rewind functions , user-friendly menu , easy to operate touch screen.

Product Paramenters

Model
BOTO-3015

 BOTO-4015

BOTO-4020

  BOTO-

  4025

BOTO-5020
BOTO-5030
BOTO-6040
Detector Dimension (Width*HeightMM)
300*150
400*150
400*200
400*250
500*200
500*300
600*400
Belt width(MM)
280
370
370
370
470
470
570
Transfer speed
25m / min
Transfer ability
5KG
5KG
7KG
7KG
7KG
7KG
25KG
Sensitivity
FE
1.0mm
1.0mm
1.2mm
1.5mm
1.5mm
2.5mm
3.0mm
NON-FE
1.5mm
1.5mm
2.3mm
2.5mm
2.0mm
3.0mm
4.0mm
SUS304
2.0mm
2.3mm
2.5mm
3.0mm
2.5mm
3.5mm
4.5mm
Operation interface
10 inches color LCD screen
Operating mode
Plane key input (touch optional)
Item memory
100 Products
Stable way
Automatic phase adjustment
Alarm mode
Buzzer,Alarm lamp,Alarm stop Run
Rejector(optional)
Flip Bar Type,Air Blast Type,Pusher on Roller Type,Pusher on Belt Type,Drop Flap Type, Chute Type,Conveyor Retraction Type(other types need to customization)
External interface
USB,RS232/485/422,to store data,Voltage signal or Switch signal,TCP/IP(optional)
Corollary equipment
Ink-jet printer,Check Weigher,Online printer,Labeling machine, etc
Power Source
380/220/110V 50/60Hz
Power Output
About 200W
Measurement
SUS304
Degree of protection
IP54/IP65(IP66 need to be custom)
Environment
0℃-50℃
Remark
1.Above the detection sensitivity is empty machine belt surface accuracy and practical sensitivity by products, environment or metal into position influence.
2.Above machine specifications for the standard specifications, size and other special
requirements, all can be customized.







Food Industrial 50Hz 220V Buzzer Meat Metal Detector Safeline 0



The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.

Castomized service

1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3..We provide one year warranty

4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

5 .12 Months guarantee and life-long technical support.

6.Your business relationship with us will be confidential to any third party.

7. Good after-sale service offered, please get back to us if you got any questions.
Product packaging
Food Industrial 50Hz 220V Buzzer Meat Metal Detector Safeline 1



FAQ :



Q1:Can you do OEM?

A1: Yes,Gosunm can do OEM and also can print your logo on machine.

Gosunm have 50+ persons in R&D

You can choose Spanish, French, Italian, Arabic, Korean, Japanese and etc for the touch screen.



Q2: How long is the delivery time?

A2: Gosunm have stock of the most popular models,which could delivered within one week.

For customized complex solution line, need more than 30 working days.



Q3:What is terms of payment? MOQ?

A3: L/C, T/T. 1 set.



Q4:How do you gurantee the machine stable operating?

A4:we do Pre-shipment test for every single piece of machine.

we have seperate QC,delivery,sales and after-sales departments.

also strict management process from pre-sales to after-sales.



Q5: How is your After-Sales Service?

A5: 1 year warranty with 60+ oversea after-service engineers

(oversea after-service team of high efficient,professional and enough experience

for various Non-standard project)



Q6:How can I install my machine when it arrives?

A6: For simple and semi auto machine, Gosunm would send manual instruction and teaching video.

For complex operation , we will send the engineers overseas to help client

installing, operating and training.
