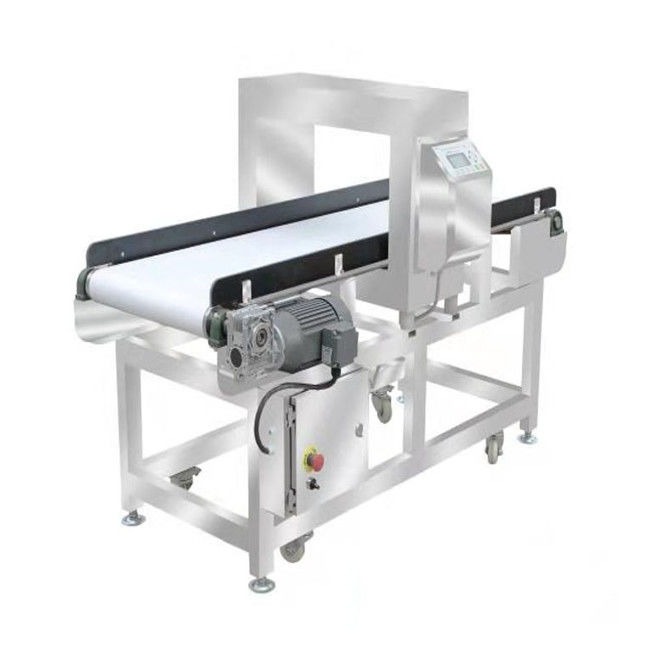

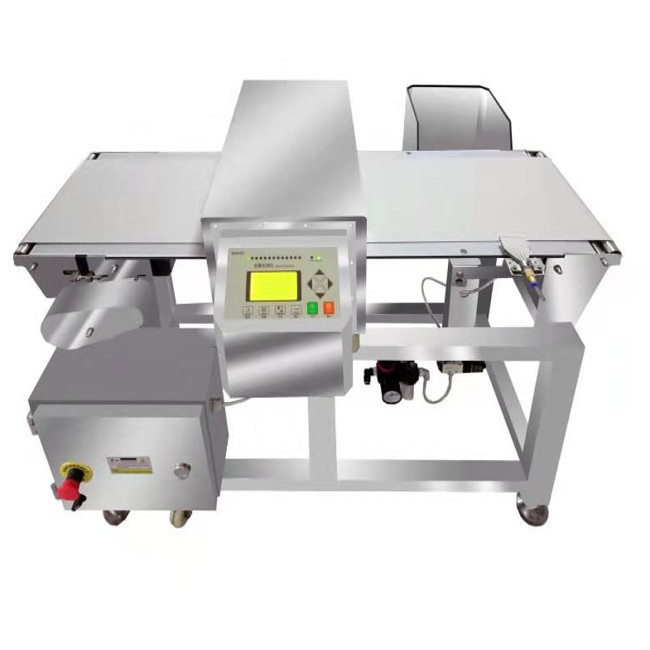

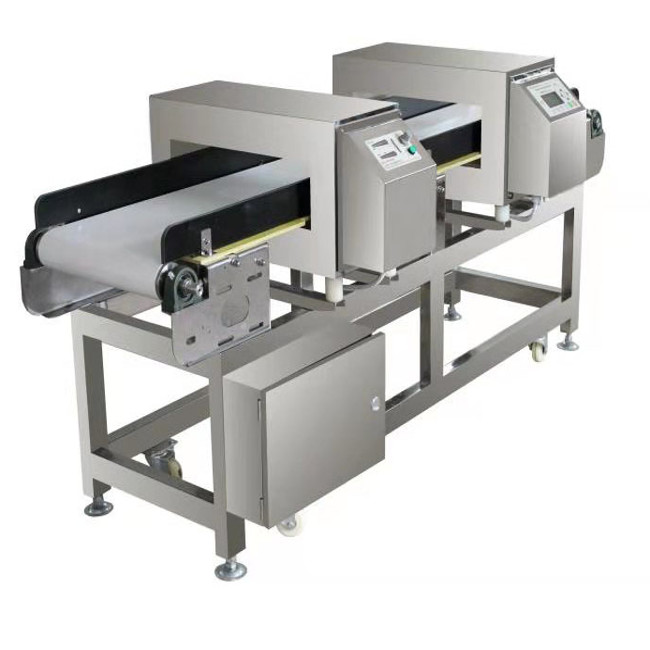

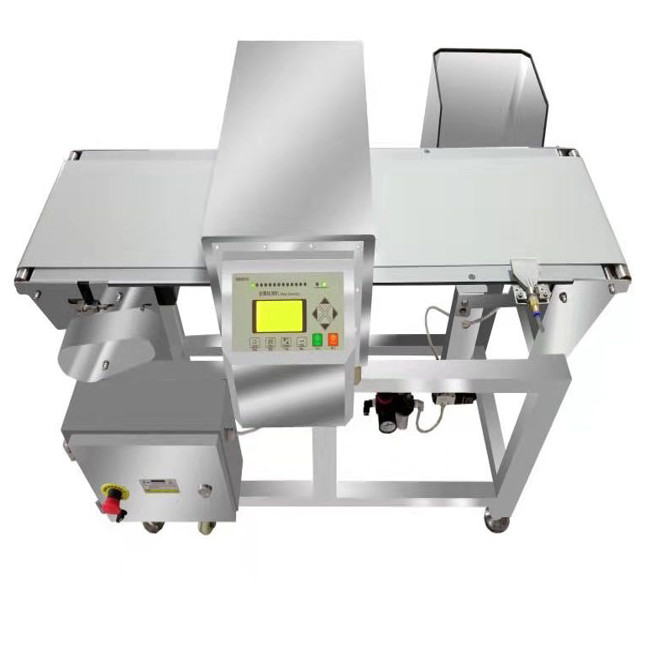

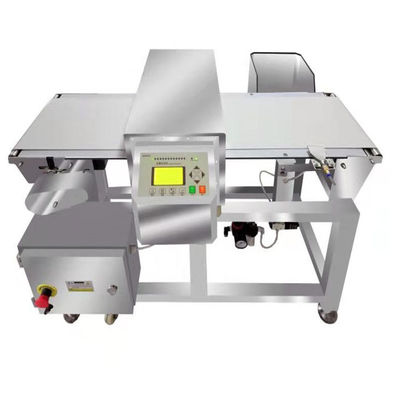

Automatic Textile 380V Industrial Metal Detectors Food Grade RS232

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT1503
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Payment Terms: D/A, D/P, T/T, Western Union, L/C
Supply Ability: 100000Set/month
Detection Type:: Buzzer,Alarm Lamp,Alarm Stop Run Function:: Technique Of Phase Adjustment
Raw Material:: Stainless Steel Industrial Metal Detectors Sensitivity:: Fe,no-Fe,sus304 Different
Weight:: 3-30kg(pls Note Your Prpduct Weight ) Power Supply:: 380/220/110V 50/60Hz 200w
Display:: LCD Screen Alarm:: Buzzer
Dimension:: 1400*670*1150 Metal Detector Transfer Speed:: 25m/min Industrial Metal Detectors
High Light:

380V Industrial Metal Detectors

,

RS232 Industrial Metal Detectors

,

RS232 food grade metal detectors

Industry Automatic Textile Food Metal Detector Conveyor Belt Food Package Box Detector Industrial Metal Detectors

Main functions:



Easy Integration: adjustable height, modular design
• Sturdy and robust construction: Stainless Steel 304
• Easy to use: touch screen operating system is easy to use with user password protection
• Easy to clean: detachable belt easy to to take apart for cleaning and set up.
• Variable Speed: Speed configurable based on application
• High Speed and Accuracy: equipped with high grade sensor and load cell with ultra fast processor for excellent accuracy and speed
• Zero Trace: Manual and Automatic Calibration, increase accuracy
• Report and Data Exportation: Built-in real time report, exportable to Excel file, storing up 1 year production data in USB disk
• Connectivity: standard ports for data exportation and connect to PC
• Self-learning: no need to calibration, system will find the best set up for the product. Configurable up to 2000 product settings
• Different Detection Modes: Default Mode, Static Mode, Power saving mode
• Faulty report: The system can detect and report faulty part of the system makes it easy to diagnose problems
• Output Ports: RS-485 and RS-232, able to Connect with printers and label machines



2. Scope of use:
Metal Detector For Food industry is widely used in the detection of meat, frozen meat, sea food, mushrooms, drinks ,fruits ,
Sugar, Salt and vegetables. Rejection System Food Metal Detector can detect ferrous and non-ferrous and other metal objects , the
sensitivity can be adjusted separately , with memory function can be stored 10 kinds of test material·Detector with audible and
visual alarm , and automatically exclude , stop , rewind functions , user-friendly menu , easy to operate touch screen.

Product Paramenters

Model
BOTO-3015

 BOTO-4015

BOTO-4020

  BOTO-

  4025

BOTO-5020
BOTO-5030
BOTO-6040
Detector Dimension (Width*HeightMM)
300*150
400*150
400*200
400*250
500*200
500*300
600*400
Belt width(MM)
280
370
370
370
470
470
570
Transfer speed
25m / min
Transfer ability
5KG
5KG
7KG
7KG
7KG
7KG
25KG
Sensitivity
FE
1.0mm
1.0mm
1.2mm
1.5mm
1.5mm
2.5mm
3.0mm
NON-FE
1.5mm
1.5mm
2.3mm
2.5mm
2.0mm
3.0mm
4.0mm
SUS304
2.0mm
2.3mm
2.5mm
3.0mm
2.5mm
3.5mm
4.5mm
Operation interface
10 inches color LCD screen
Operating mode
Plane key input (touch optional)
Item memory
100 Products
Stable way
Automatic phase adjustment
Alarm mode
Buzzer,Alarm lamp,Alarm stop Run
Rejector(optional)
Flip Bar Type,Air Blast Type,Pusher on Roller Type,Pusher on Belt Type,Drop Flap Type, Chute Type,Conveyor Retraction Type(other types need to customization)
External interface
USB,RS232/485/422,to store data,Voltage signal or Switch signal,TCP/IP(optional)
Corollary equipment
Ink-jet printer,Check Weigher,Online printer,Labeling machine, etc
Power Source
380/220/110V 50/60Hz
Power Output
About 200W
Measurement
SUS304
Degree of protection
IP54/IP65(IP66 need to be custom)
Environment
0℃-50℃
Remark
1.Above the detection sensitivity is empty machine belt surface accuracy and practical sensitivity by products, environment or metal into position influence.
2.Above machine specifications for the standard specifications, size and other special
requirements, all can be customized.







Automatic Textile 380V Industrial Metal Detectors Food Grade RS232 0



The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.

Castomized service

1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3..We provide one year warranty

4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

5 .12 Months guarantee and life-long technical support.

6.Your business relationship with us will be confidential to any third party.

7. Good after-sale service offered, please get back to us if you got any questions.
Product packaging
Automatic Textile 380V Industrial Metal Detectors Food Grade RS232 1



FAQ :



Q1:Can you do OEM?

A1: Yes,Gosunm can do OEM and also can print your logo on machine.

Gosunm have 50+ persons in R&D

You can choose Spanish, French, Italian, Arabic, Korean, Japanese and etc for the touch screen.



Q2: How long is the delivery time?

A2: Gosunm have stock of the most popular models,which could delivered within one week.

For customized complex solution line, need more than 30 working days.



Q3:What is terms of payment? MOQ?

A3: L/C, T/T. 1 set.



Q4:How do you gurantee the machine stable operating?

A4:we do Pre-shipment test for every single piece of machine.

we have seperate QC,delivery,sales and after-sales departments.

also strict management process from pre-sales to after-sales.



Q5: How is your After-Sales Service?

A5: 1 year warranty with 60+ oversea after-service engineers

(oversea after-service team of high efficient,professional and enough experience

for various Non-standard project)



Q6:How can I install my machine when it arrives?

A6: For simple and semi auto machine, Gosunm would send manual instruction and teaching video.

For complex operation , we will send the engineers overseas to help client

installing, operating and training.
