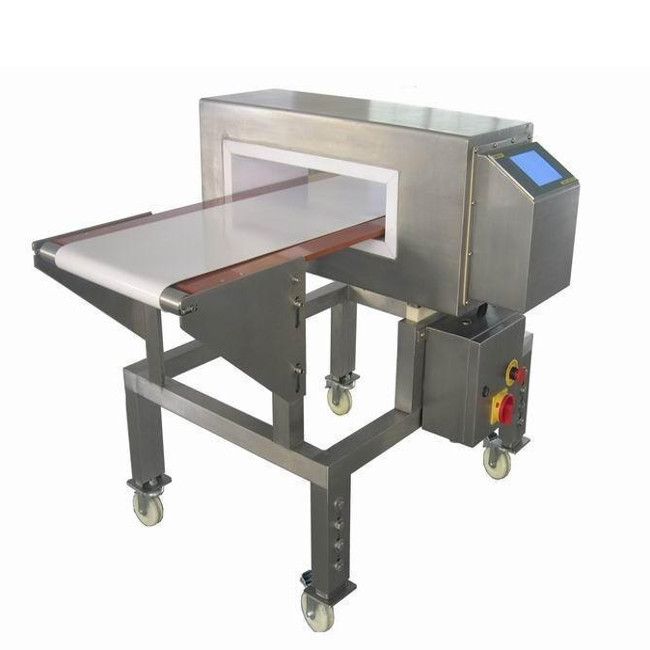

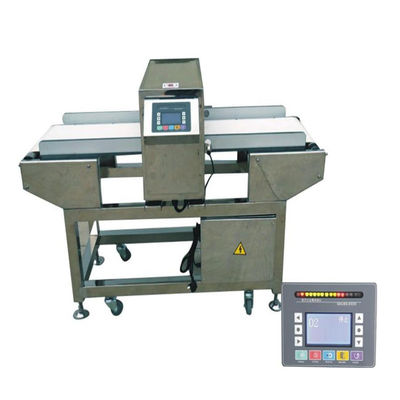

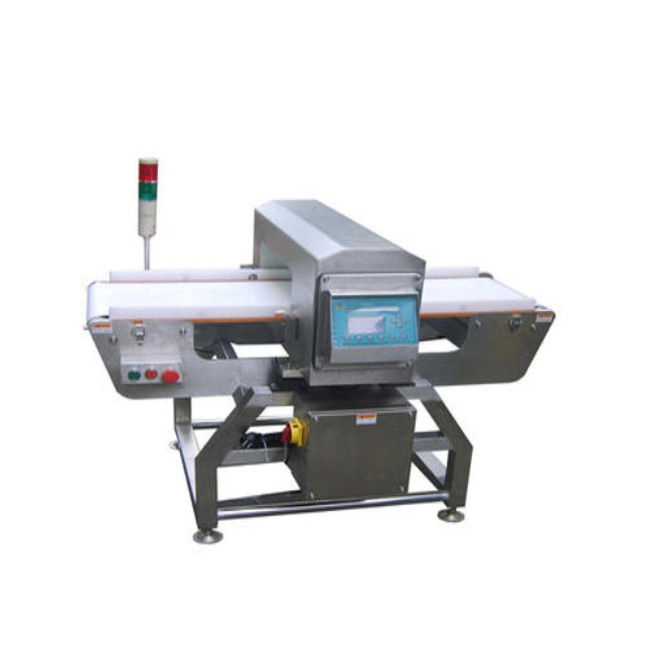

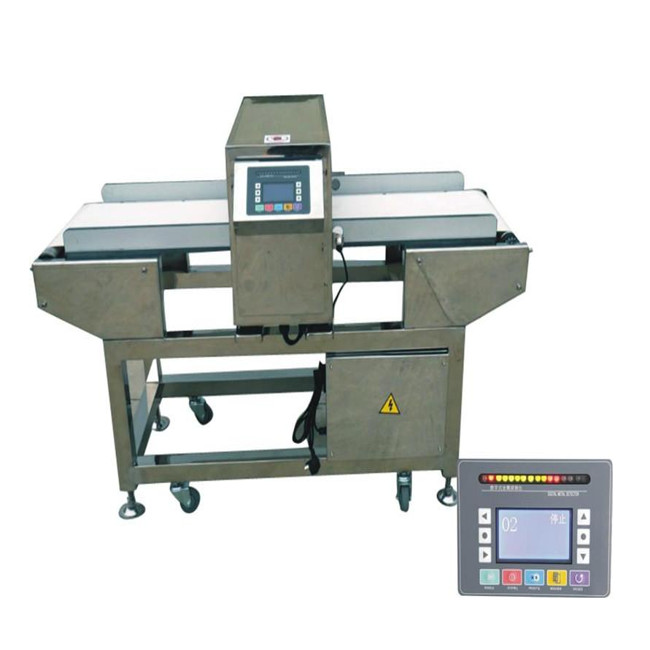

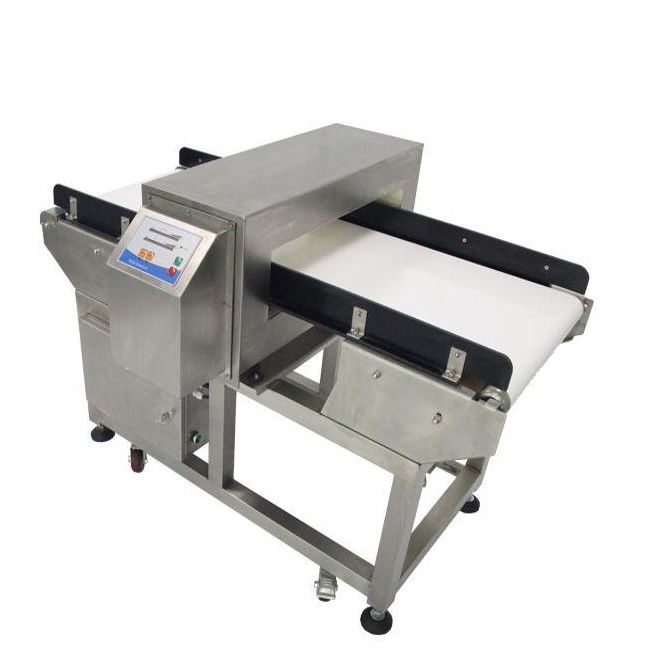

Food Industry Belt Conveyor Metal Detector for Food Detect Industrial Metal Detectors

^{1. Application:}

^{Detection of food processing, food additives, condiment, clothing, toys, rubber industry products in metal

impurities,ensureproduct without metal pollution, provide reliable quality guarantee.Detection of plastic, textile, wood, mining industries in the material metal impurity, protect the online equipment, reduce downtime, maintenance time and cost, improve work efficiency.}

^{2. Features:}

^{1. The inductance coil balanced principle,more stable and reliable, performance is better; The phase control technology, Can automatically adjust the phase, and effectively suppress product effect

2. By using DSP digital signal processing and MCU signal detection algorithm combining way, improve the detection precision and machine stability

3. Has the self-learning function of the product, detecting material expanded

4. When detected by metal foreign body, will automatically stop, and give out sound and light alarm signal or access various reject device to reject unqualified product

5. Reserve external signal interface, can choose a variety of reject way in order to adapt to different products

6. Easy to remove the mechanical structure, especially suitable for need often clean circumstance;Probe and frame full stainless steel production, health, durable}

Description:

Metal Detector For Food industry is new arrival food metal detector . It has touch screen , 10 level adjustable sensitivity and memory 10 kinds of products etc .But also it has more higher reliability and stability on check products with water and salt.

Adopt the theory of balance, more reliable;

Phase-adapted technology can adapt products in order to effectively eliminate product effect.

Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.

To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.

Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.

Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without

manual participation to adjust technical parameters.

It can store more than 100 kinds of testing data of products.

Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.

Suitable for wet, dry ,dust ,dew environment , made of stainless steal ,has HACCP attestation , waterproof IP65

^{Product Paramenters}

^Model		^BOTO-3015	^BOTO-4015	^BOTO-4020	^BOTO- ⁴⁰²⁵	^BOTO-5020	^BOTO-5030	^BOTO-6040
^{Detector Dimension (Width*HeightMM)}		^300*150	^400*150	^400*200	^400*250	^500*200	^500*300	^600*400
^{Belt width(MM)}		²⁸⁰	³⁷⁰	³⁷⁰	³⁷⁰	⁴⁷⁰	⁴⁷⁰	⁵⁷⁰
^{Transfer speed}		^{25m / min}
^{Transfer ability}		^5KG	^5KG	^7KG	^7KG	^7KG	^7KG	^25KG
^Sensitivity	^FE	^1.0mm	^1.0mm	^1.2mm	^1.5mm	^1.5mm	^2.5mm	^3.0mm
	^NON-FE	^1.5mm	^1.5mm	^2.3mm	^2.5mm	^2.0mm	^3.0mm	^4.0mm
	^SUS304	^2.0mm	^2.3mm	^2.5mm	^3.0mm	^2.5mm	^3.5mm	^4.5mm
^{Operation interface}		^{10 inches color LCD screen}
^{Operating mode}		^{Plane key input (touch optional)}
^{Item memory}		^{100 Products}
^{Stable way}		^{Automatic phase adjustment}
^{Alarm mode}		^{Buzzer,Alarm lamp,Alarm stop Run}
^{Rejector(optional)}		^{Flip Bar Type,Air Blast Type,Pusher on Roller Type,Pusher on Belt Type,Drop Flap Type, Chute Type,Conveyor Retraction Type(other types need to customization)}
^{External interface}		^{USB,RS232/485/422,to store data,Voltage signal or Switch signal,TCP/IP(optional)}
^{Corollary equipment}		^{Ink-jet printer,Check Weigher,Online printer,Labeling machine, etc}
^{Power Source}		^{380/220/110V 50/60Hz}
^{Power Output}		^{About 200W}
^Measurement		^SUS304
^{Degree of protection}		^{IP54/IP65(IP66 need to be custom)}
^Environment		^0℃-50℃
^Remark		^{1.Above the detection sensitivity is empty machine belt surface accuracy and practical sensitivity by products, environment or metal into position influence.} ^{2.Above machine specifications for the standard specifications, size and other special} ^{requirements, all can be customized.}

^{The sample service}

We can send you the video of the running machine.

You are welcome to come to visit our factory,and see the machine running.

^{Castomized service}

1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

^{After-sales service}

We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

.We provide one year warranty

Well-trained & experienced staff are to answer all your inquiries in English and Chinese

.12 Months guarantee and life-long technical support.

Your business relationship with us will be confidential to any third party.

Good after-sale service offered, please get back to us if you got any questions.

^{Product packaging}

^FAQ

1.Are you manufacturer or trader? Where are your factory located?

We are manufacturer and we are located in Shanghai,China.

2.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?

Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.

3.How long is your warranty?

12 months free warranty, life-long maintenance.

4.Are you provide product metal parts and provide us technical guidance?

Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.And we can give you technical guidance.

5.What are your company requests of payment terms?

TT,L/C,International Credit Card.

6. What is the validity time of the quotation?

15 days since quotation date

7. What is the delivery time?

Within 15 days after receipt of your deposit.

8. Are you a manufacturer?

Yes, we are a manufacturer, and we can provide the competitive price and good quality.

Tag:

Place of Origin:	CHINA
Brand Name:	BOTO
Certification:	CE ISO
Model Number:	BT1503

Minimum Order Quantity:	1 SET
Price:	Negotiation
Packaging Details:	PLY-WOODEN CASE
Payment Terms:	D/A, D/P, T/T, Western Union, L/C
Supply Ability:	100000Set/month

Usage::	Industrial Metal Detector For Food Industry	Application::	Food Metal Detector
Model::	BOTO-220/300(Different Size ,pls Note Your Product Size)	Detection Depth::	Different ,as Detail Pages Showing
Sensitivity::	Fe,no-Fe,sus304 Different	Weight::	3-30kg(pls Note Your Prpduct Weight )
Power Supply::	380/220/110V 50/60Hz 200w	Display::	LCD Screen
Customized Support::	OEM, ODM
High Light:	3.0mm Industrial Metal Detectors , 25KG Industrial Metal Detectors , 25KG industrial metal detector machine
