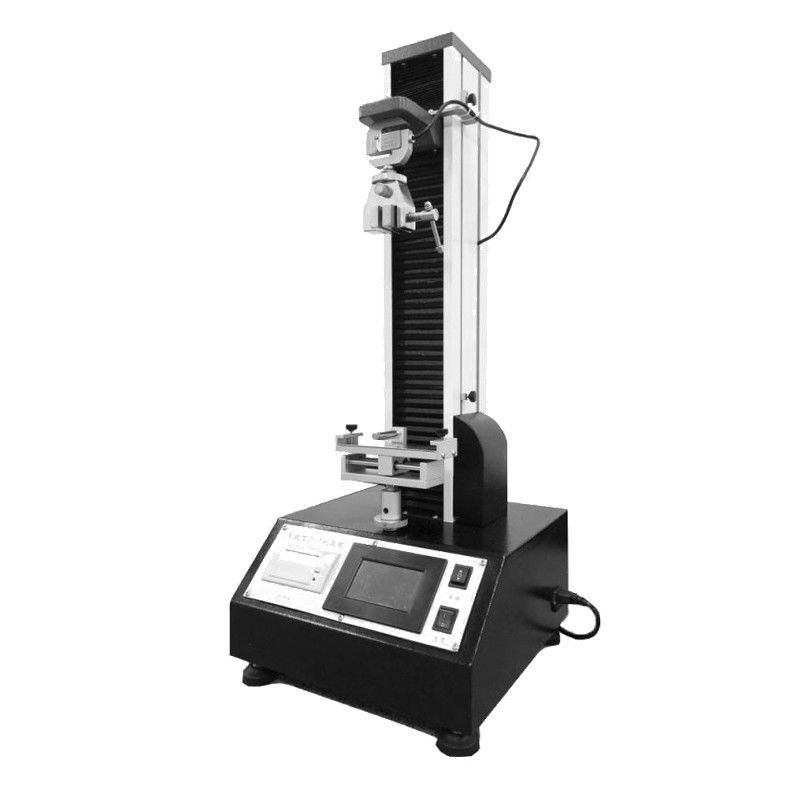

Fabric 400mm Ultimate Universal Tensile Testing Machine 1KN

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE
Model Number: BT-F20
Minimum Order Quantity: 1 SET
Price: 8000USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/month
Product Name: Universal Testing Machine Impetus: Servo Drive Controller
Tensile Strength Tester:: 0.001N Structure:: Single Column
Tensile Testeing Machine: For Leather Resolution Of Forc: 1/200000
Material: SUS 304 Stainless Steel Application:: Metal Material, Steel Wire, Bar, Plate, Rubber, Plastic Etc
High Light:

1KN Universal Tensile Testing Machine

,

400mm Universal Tensile Testing Machine

,

400mm ultimate testing machine

Fabric tension meter 1KN universal tensile tester for plastic industry

Universal Testing Machine Main Uses

The machine adopts a single-arm structure, and the main partis composed of a column, an upper beam, a middle beam and a worbench. The speed control system is installed in the lower;part of the workbench, and the servo motor with highspeed regulation,wide range and stable performance passes synchronous tooth shape.The belt deceleration system dri.ves the ball screw pair to rotate, and the ball screwpair drives the middle beam to drive the stretching attachment to move up and down to realize the loading and unloading of the sample. The structure has the advantages of high rigidity, highefficiency, stable ransmission and the like.

Parameters:



structure type: Single arm structure
Maximum test force (N): 1000N
Test force level: Level 1
Test force measurement range: 2%--100%FS
Test indication relative error: ±1% of the indicated value
Force resolution: 1/100000
Displacement measuring device: Photoelectric encoder
Displacement indication relative error: ±1% of the indicated value
Displacement resolution (mm): 0.01
Displacement rate (mm/min): 1-500 stepless speed regulation
Safety protection device:

Mechanical limit protection and software overload

protection

Effective stretching space (mm): 400
Stretching fixture: According to material selection
Mainframe dimensions (mm): 420×280×680
Host power: 0.3KW/AC220V±10%
Host weight (KG): 60

Fabric 400mm Ultimate Universal Tensile Testing Machine  1KN 0

Company information

BOTO Testing equipment Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

Fabric 400mm Ultimate Universal Tensile Testing Machine  1KN 1

Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Fabric 400mm Ultimate Universal Tensile Testing Machine  1KN 2

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.



Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
