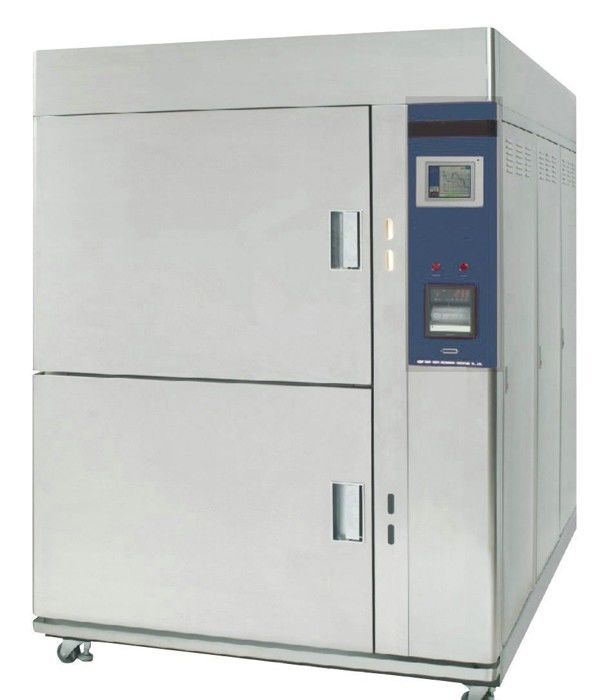

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: B-TS-502
Minimum Order Quantity: 1 SET
Price: 850USD
Packaging Details: Export carton
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000set/month
Chamber Material: 304 Stainleass Steel Tem Fluctudtiont: ±2℃
Heat-up Time: About 1-15°C/min Pull-down Time: About 1-15°C/min
Temperature Range:: -40℃~150℃ (or Customized Usage: Temperature Range
Power Supply: AC380V 50/60Hz Recovery Time: Within 3 Minutes
Temp Uniformity: 3-5 Minutes Power: Electronic
Material: Satinless Steel Plate Low Tem Range: -10℃~-60℃ (or Customized

Programmable Cycling hot and Cold Thermal shock Temperature Humidity Test Chamber



Features:

1.Highly accurate temperature recovery



2.1000 cycles continuous operation (option: defrost-free operation)



3.Accurate and dependable test result (option: product temperature control*)



4.Monitoring product temperature (option: product temperature monitor with trigger function)



5.patent parallel refrigeration system improves reliability



6.Automatic setting of pre-cooling and pre-heating in energy saving, Eco operation mode



7.Minimizing defrosting burden with defrost-free operation (option: defrost-free operation)



8.Parallel refrigerator control system for energy-saving control



Size Information:

Size Chart of This Design
Model No
B-TS-502
Power 19KW
Internal Dim W×H×D(CM) 40x35x35
External Dim W×H×D(CM) 143x210x170
Low Temperature range
-10°C~-70°C
Test Temp range
-55°C~150°C
High Temperature range
+80°C~+200°C
Recovery time
3-5 minutes
Chamber material
SUS#304 stainless steel
Cooling
Imported compressor,finned type evaporator,air-cooling condenser
Usable temp range
+5°C~+35°C
Controller
Digital electronic indicators+S.S.R.With PID automatic calculation capability
Power Source
AC: 380V 60/50Hz



More Details:

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 0

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 1

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 2

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 3

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 4

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 5

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 6



Application:

Mainly used in national defense industry, aviation industry, automotive parts, electronic components, plastics industry, food



industry, pharmaceutical industry, and related product research and development, quality management engineering test



specifications. The features of this product are as follows:

1. Automatically adding water system can automatically replenish water level when water level is insufficient and the test is not interrupted;



2. Precision glass nozzle spreads evenly, falls naturally with the test piece.

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 7







PACKAGE&DELIVERY:



1. Fully packed with PE film;


2. Wooden box;


3. Machine is fastened to the corners of the containers;


4. If export to European countries, the wooden box will be fumigated;


5. Customized package is available.

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 8



Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 9

Our advantages:



1. Good price good quality with beautiful shape.



2. Stable availability, complete specification.



3. MOQ 1unit.



4. The strong support of advanced technology and detection capability.



5. ISO /CE certification.



6. Reliable factory, established since 2005.



7. Professional service and technology support.



8. Quickly delivery in 2-3weeks.





Company Profile



BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 10



Main equipment

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 11



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market



Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 12

The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.



Production Process

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 13

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 14

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 15



Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 16



Production Details



Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 17

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 18



Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 19

Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.



Certification

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 20

TRADING PROCESS

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 21



Cooperative partners



Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 22

Programmable Cycling hot and Cold Thermal shock Fast Temperature Humidity Test Chamber 23



Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.





FAQ:

Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
