2000um Digital Ultrasonic NDT Thickness Gauge Metal Aluminum USB

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: ISO
Model Number: BOTO-JT160
Minimum Order Quantity: 1SET
Price: USD100/SET
Packaging Details: Standard Export Package
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability: 10000 SET/MONTH
Power Supply: Two 1.5V AAA Battery Display::: 128*64 LCD With LED Backlight
Communication Port::: USB Accuracy: ±(2%+1um)
Calibration Function:: Probe Zero And Two-point Calibrations Measuring Range: 0 To 2000um
Storage::: 3000 Values Of Saved Data Usage: Portable Paint Coating Thickness Gauge
High Light:

2000um NDT Thickness Gauge

,

USB NDT Thickness Gauge

,

2000um Digital Ultrasonic Thickness Gauge

Digital Ultrasonic Thickness Gauge For Measuring The Thickness Of Metal Aluminu



1.Main Specification:



Capable of performing measurements on a wide range of material, including metals,plastic,ceramics,composites,epoxies,glass and other ultrasonic



wave well-conductive materials.



Can collocate variety different frequencies,wafer sizes of probes; Sound Velocity Calibration function as a known thickness;



Coupling status indicator showing the coupling status; EL backlight, and convenience to use under dark environment;



Have the battery indicator function, can real-time display the remaining power



Auto sleep and auto power off function to conserve battery life; Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.



2.Detailed Images:

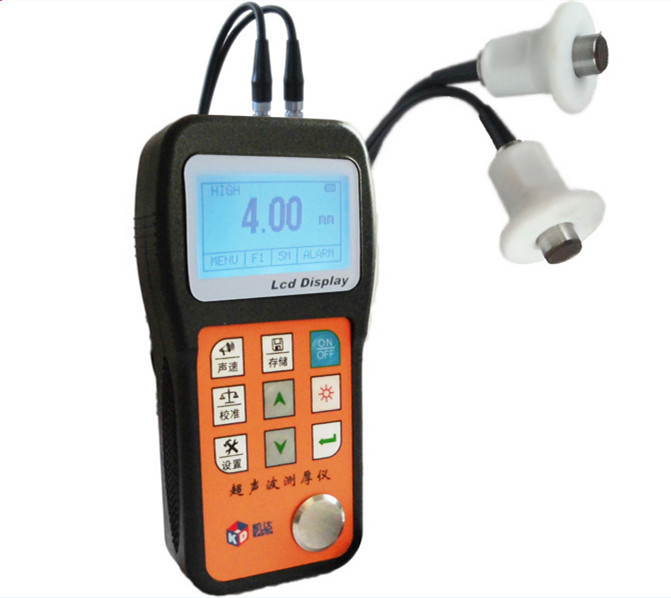

2000um Digital Ultrasonic NDT Thickness Gauge Metal Aluminum USB 0

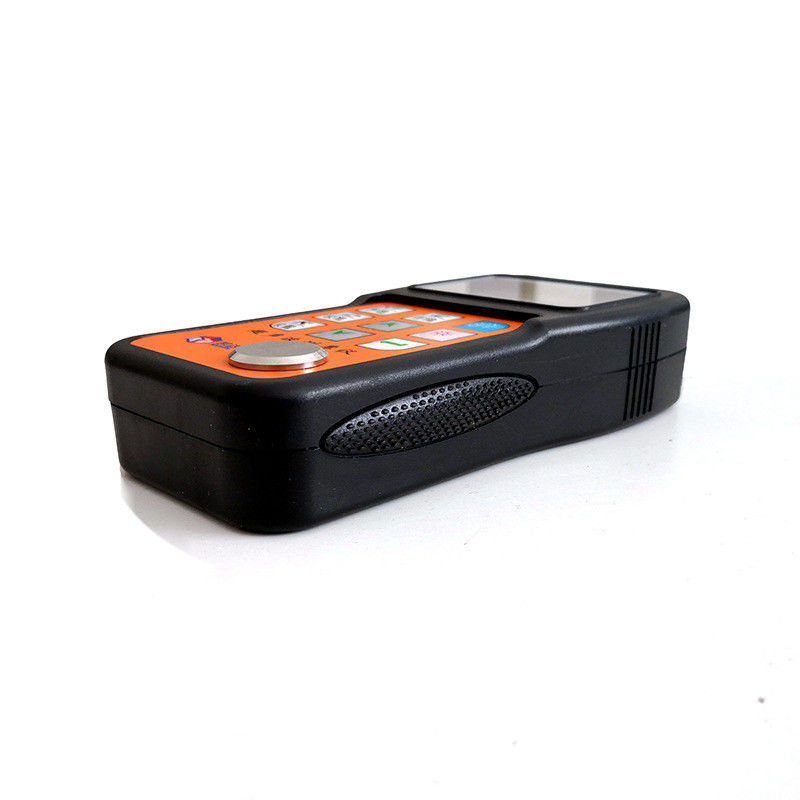

2000um Digital Ultrasonic NDT Thickness Gauge Metal Aluminum USB 1

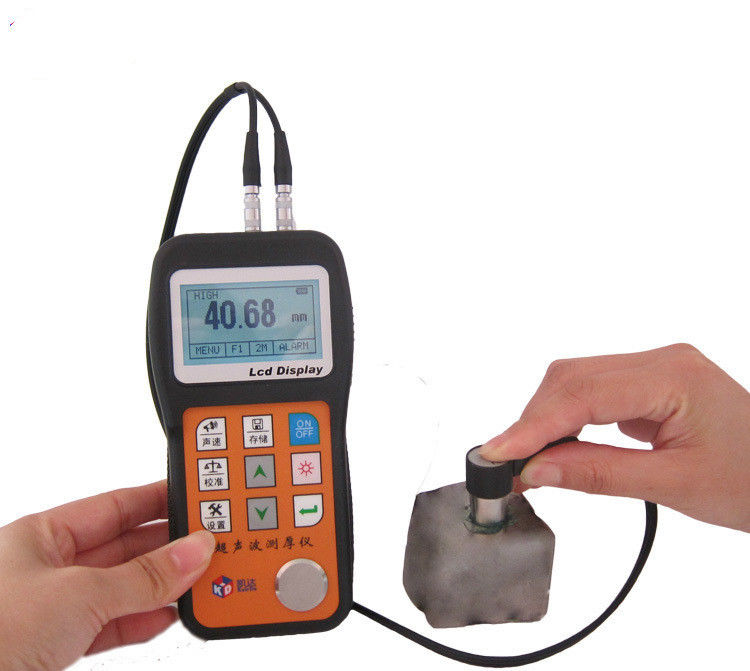

2000um Digital Ultrasonic NDT Thickness Gauge Metal Aluminum USB 2

4.Features:



Display:128*64 LCD with LED backlight;



Measuring Range:(0.28~600)mm(Steel)/(0.011inch-23.6inch)



Velocity Range:(1000~9999) m/s;



Resolution:0.01mm Weight:245g



Measuring accuracy:±(0.5%H+0.04mm);H is thickness value;



Measurement cycle:Single point measurement 6 times/per;



Storage:40 values of saved data



Power Source:2pcs 1.5V AA size



Working Time:more than 50 hours (LED backlight off).



Outline Dimensions:145mm*74mm*32 mm



5.FAQ:



Q:What is the real delivery time of your factory?



A:10 to 15 days for general series products,meanwhile,customized products would need 20 days to 40 days based on different situations.



Q:How do you ensure the quality of your products?



A:Generally,our equipments are the most durable type in the industry,this is also the feature of the label impression of DH for most of our customers at home or abroad. However,we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.



Q:How do you after-sale service work if the product got damaged?



A:In the guarantee time 12 months,our general aftersale serve.



Q: Is the measuring error large?



A: Enter the menu interface, clear the calibration data; shut down to restore the factory configuration steps; do zero calibration after booting, (Note: you need to do zero calibration on the customer's own substrate)


Q: During the measurement process, is it sometimes display F, sometimes display N?


A: The automatic mode undistinguishable the type of material and it requires manual switching of the measurement principle.
