EN ISO 20344 Schopper Din Abrasion Tester For Luggage Handbag Industry

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT008
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000Set/month
Power Supply: 220V 50Hz Load:: 2.5N,5N,10N
Certificate:: CE ISO Limit Rotation:: 84 Rotate (about 40M)
Product Name:: Abrasion Test Machine Drum Length:: 460mm
Abrasion Speed:: 0.32m/sec Wheel Speed:: 40±1RPM
Return Form:: Electric Automatic Reset Size:: 95*66*31cm
Power:: Electronic Rooling Speed:: 40rpm
High Light:

ISO 20344 Din Abrasion Tester

,

Schopper Din Abrasion Tester

,

Schopper rotary abrasion tester

EN ISO 20344 DIN 53516 Schopper Abrasion Resistance Tester DIN Abrasion Testing Machine



1. Function:

DIN 53516 Schopper Abrasion Resistance Tester is to test the friction of surface by a particular piece of

sandpaper, After friction for a certain time, and then assess the condition of material surface weight, volume and

thickness, from this standard to assess the abrasive nature of materials. .



DIN 53516 Schopper Abrasion Resistance Tester is a high efficiency, good reproduction and easy to operate,

applied to test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit belt,

sole, synthetic leather, leather and others



2.Corresponding standard :

GB/T9867,GB/T 20991,GB/T 26703,EN ISO 20344,ISO 4649,DIN 53516,BS 903:A9,SATRA TM147



3.Applicable industry:

Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories,

commodity inspection, arbitration and technical supervision departments .



Main functions:

This CE DIN Rubber Abrasion Resistance Testing Machine is a high efficiency, good reproducibility and easy to operate, applied to test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others.



Corresponding standard:

This rubber abrasive test device meet DIN-53516ISO-4649GB/T9867-88



Summary:



Din Abrasion Tester is suitable to determine the

wear resistance of elastic material, rubber, tires,

conveyor belts, shoe soles, soft synthetic leather

and other materials.





Equipment summary:

The main function of CE DIN Rubber Abrasion Resistance Testing Machine is to test the friction of surface by a particular piece of sandpaper.After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials.





Applicable industry:

This CE DIN Rubber Abrasion Resistance Testing Machine applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments.



Specifications :

Roll diameter 150mm
Fixture lateral displacement 4.2mm/hoop each lap
Rolling speed 40rpm
Load 2.5N, 5N, 7.5N, 10N
Specimen size  thickness 6mm~14mm
Dimension 850*380*400mm
Weight Approx 70kg
Power 220V 50HZ




Sample load 2.5N ±0.2N / 5 N ±0.2N
Roller wheel diameter (150 ±0.2)mm
Roller wheel length 460mm
Roller wheel revolving speed 40±1r.p.m
Abrasion stroke 40m equal to roller wheel turns number 84
Abrasion speed 0.32m/sec
Dip angle 3°(included angle between sample clamp holder and vertical plane of roller wheel)
Volume (approx.) 70cm ×30cm ×30cm
Weight (approx.) 50kg
Power AC 220V 3A(specified)





































Product pictures

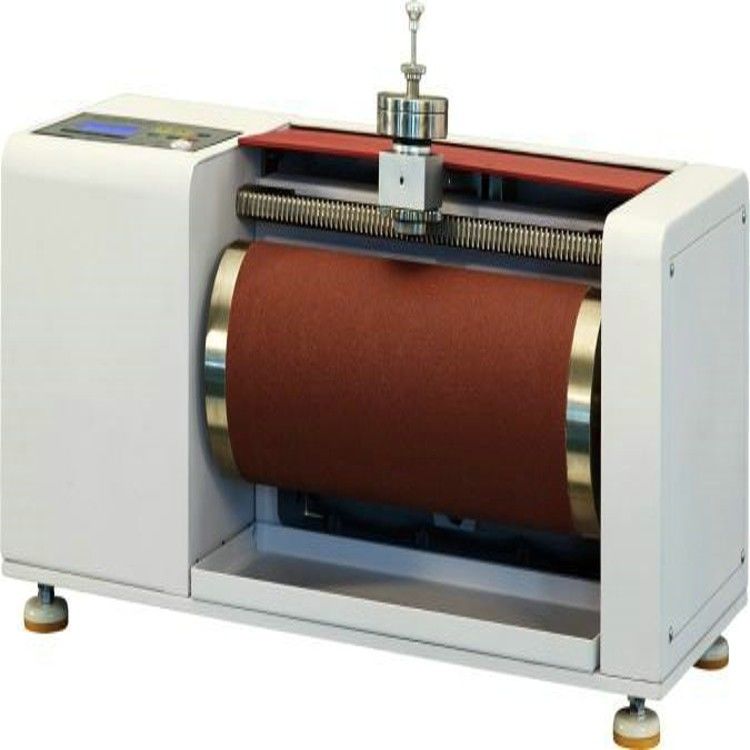

EN ISO 20344 Schopper Din Abrasion Tester For Luggage Handbag Industry 0

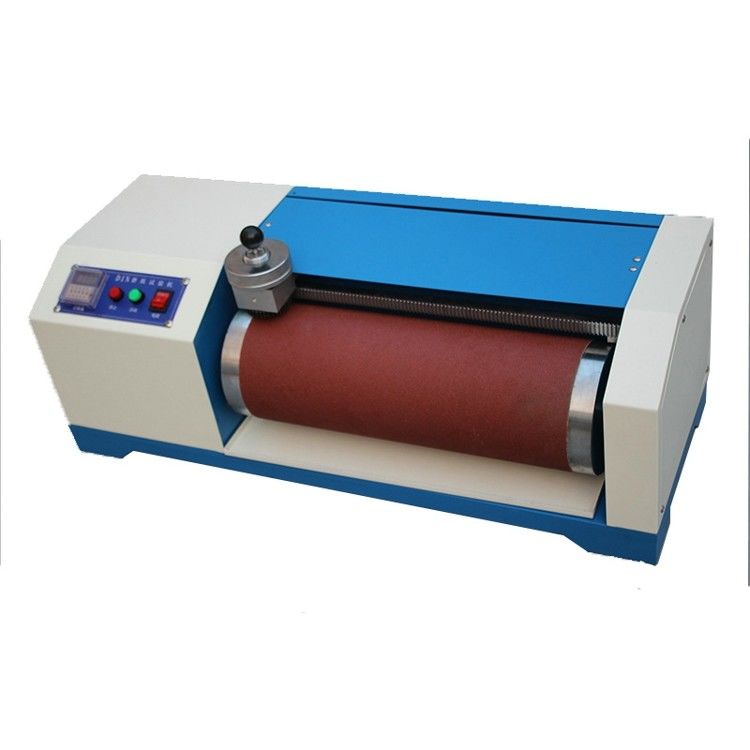

EN ISO 20344 Schopper Din Abrasion Tester For Luggage Handbag Industry 1



FAQ:

Q1: What is your warranty ?

A: 12 months product warranty, but lifetime for services. Free Non-consumable components will be provided if any performance failure occurs within 12 months caused by non-human damage.



Q2: How-to vedio provided ?

A: Yes. if required, our engineers will record a specialize how-to video for you.



Q3: Are your company a trading one or a factory?

A: Yes, we are a manufactured factory & trade (integration).15 years focusing on test instruments field. 6 years exporting experience, warmly welcome to visit our plant (factory), we also support OEM and ODM.



Q4: After an order is placed, when to deliver?

A: Generally about 25 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.



Q5: What about the after-sales service and product’s quality?

A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support.and help customer solve problems encountered while using our product, handies guest problems and complaints professionally and timely. Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. Engineers would be go abroad to training, repair and others help you need.



Q6: what about the packing of equipment?

A: Covered with air bubble film before put the machine into the stanard exporting wooden case, which not only has good shock absorption, impact resistance, heat sso has the advantag- es of nontoxic, odorless, moisture corrosion, good transparency etc.
