Main Material: | SS 304 | Product Model: | BT120 BT 225 |
---|---|---|---|
Inner Dim: | 45x60x45(cm), 60X75X50(cm) | Outer Dim: | 75x189x110(cm), 90x177x130(cm) |
Relative Humidity: | 20%-98% | Temp Range: | -70℃--150℃ |
Heat Up Tim(min): | 3-5℃/min | Packing: | Wooden Case |
High Light: | SS04 Temperature Humidity Test Chamber,Mute Temperature Humidity Test Chamber,225L Temperature Humidity Test Chamber |
120L 225L Super Mute Design Stainless Steel 304 Environment Temperature Humidity Test Chamber
Applications:
The chambers are widely used for testing various types of materials, components and equipments
for their tolerance of heat, cold, dry and humidity. It is applicable for quality inspection of all
types of electronic products, electrical appliances and products from communication, automobiles,
plastics, metal, food, chemical, building materials, medical components and equipments and
aerospace spares and components.
Features
1.Working with TECUMSEH compressor and other advanced component to ensure the stability
of the colling system.
2.The controller can be connected to the computer through LAN interface. Users can design programs
on the computer screen,collect test data and records, call program execution, remote control machine
switch and other functions.
3.The use of multi-wing air supply fan strong air circulation, to avoid any dead angle, so that indoor
temperature and humidity distribution is uniform.
4.Complete safety protection device, if abnormal conditions occur, the controller screen will automatically
display the fault status, cut off the power switch, and provide troubleshooting methods.
Specification:
Model | BT-120 | BT-225 |
Inner Dim(CM) | 45x60x45 | 60x75x50 |
External Dim(CM) | 75x189x110 | 90x177x130 |
Relative Humidity | 20%-90%RH | |
Temp Range | -70 ℃~150℃ | |
Heat -up time(min) | About 3-5℃/min | |
Pull-down time(min) | About 0.7℃-1℃/min | |
Temp fluctuation | ±0.5℃ | |
Temp uniformity | ±1.0℃ | |
Temp & Huni. Deviation | ±1.0℃/±3.0%RH | |
Interior | SUS 304 Stainless Steel Plate | |
Exterior | Coating or SUS 304 Stainless Steel Plate | |
Power Source | AC:220v/380v 50/60Hz |

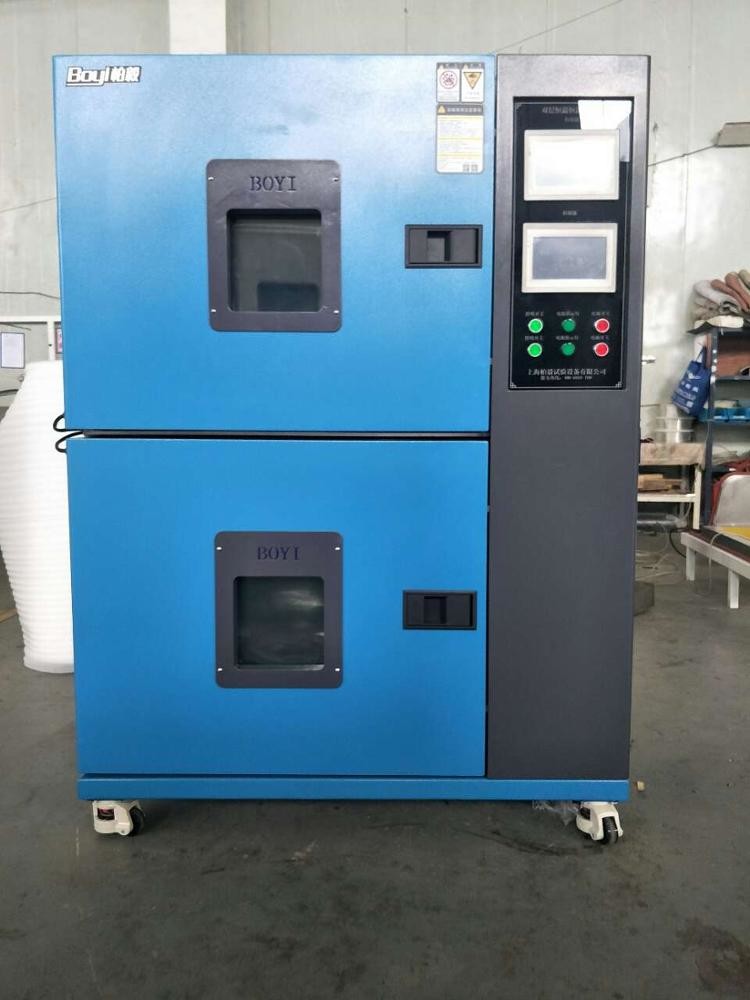

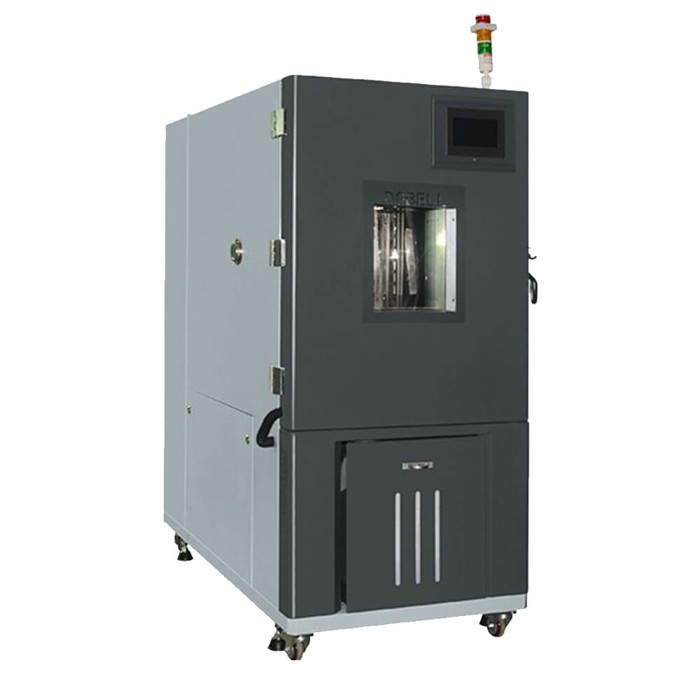

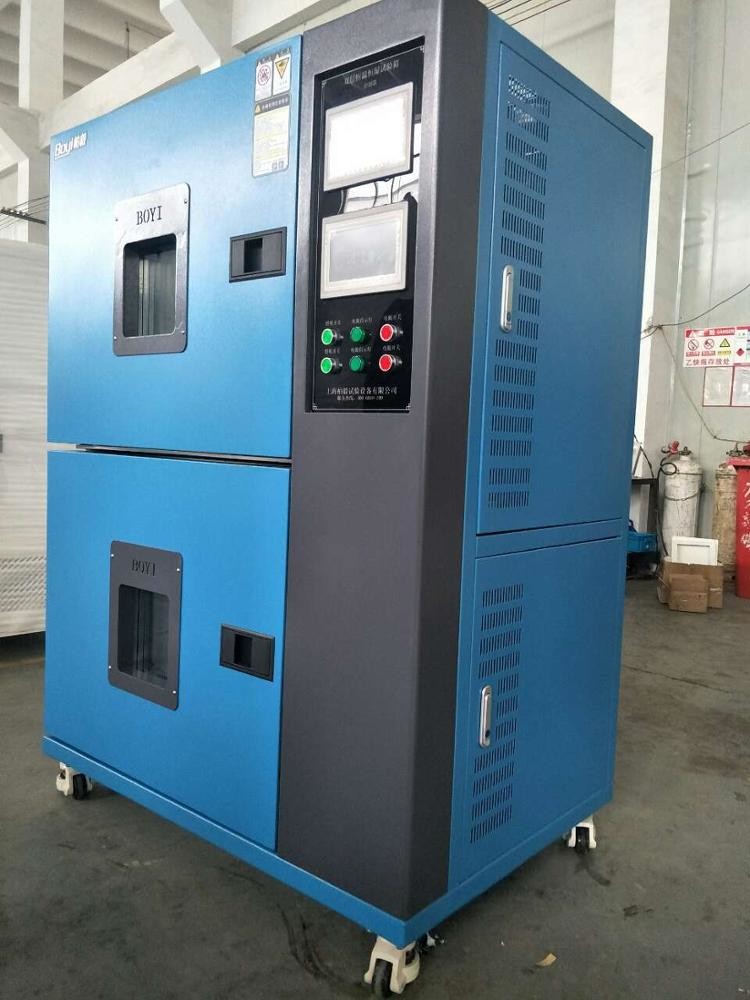

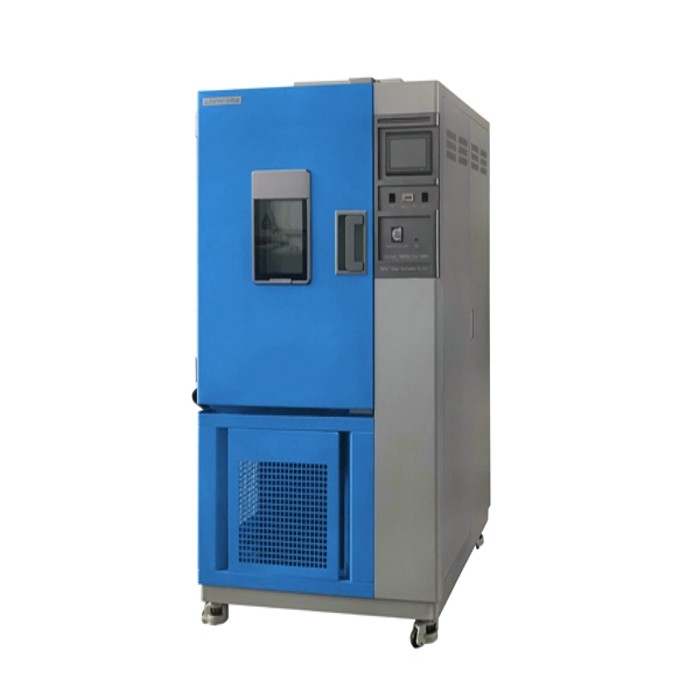

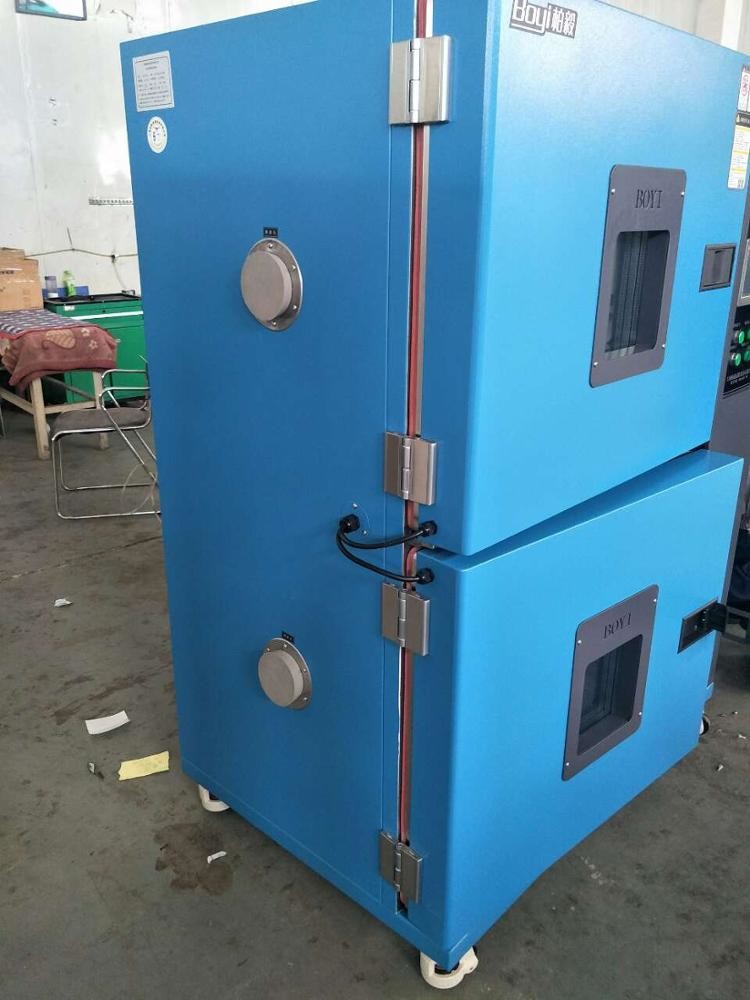

Product image
Component & Spare Parts Used for the Chamber
TECUMSEH compressor DANFOSS Filter
DANFOSS expansion valve AIRMENDER Gas Liquid Separators
Packing & Delivery
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.15-20days after confirming order,detail delivery date should be decided according to production season
and order quantity.
Our Services
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.
3) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
