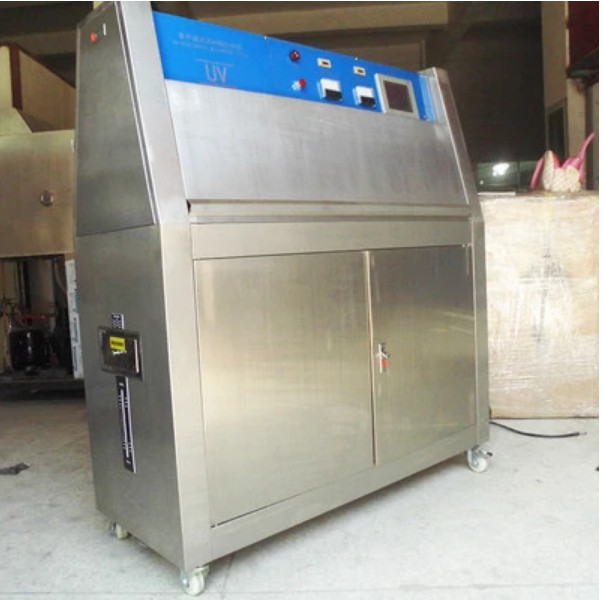

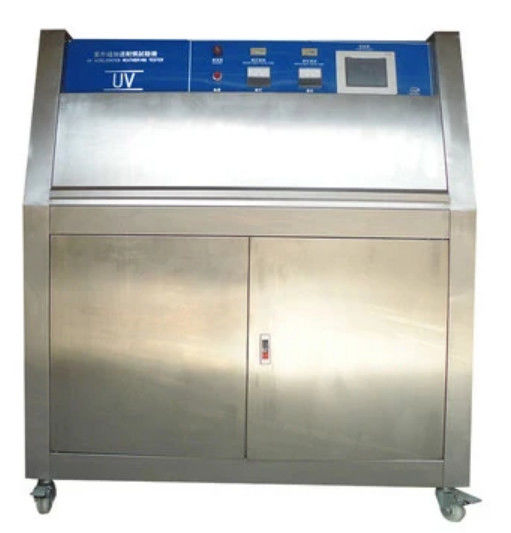

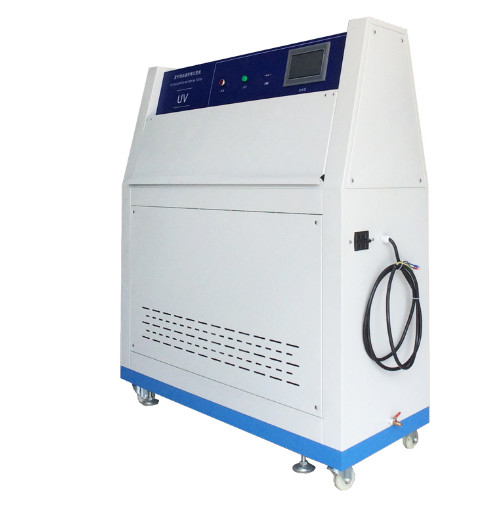

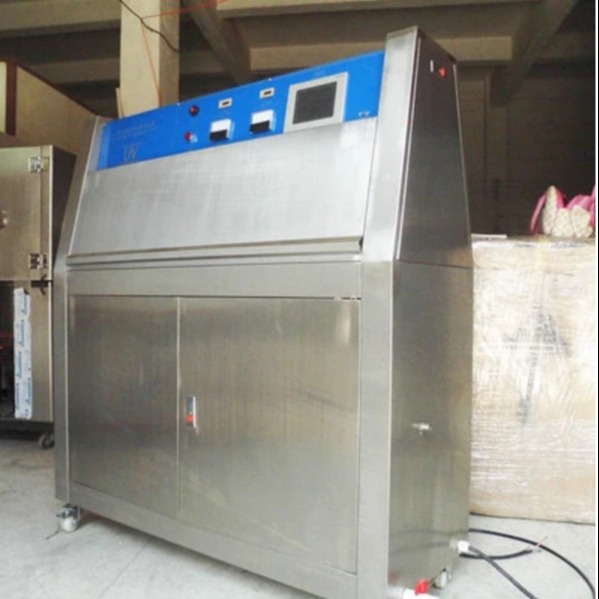

Name: Accelerated UV Aging Environmental Test Chamber For Laboratory UV Test Chamber
Brand: BOTO GROUP LTD
SKU: BT
Price: 120000.00 USD
Availability: InStock

^{Accelerated UV Aging Environmental Test Chamber For Laboratory UV Test Chamber}

^{Product Description}

Product description: This uv aging testing chamber is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.

^Applications

1. Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature. 2. To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation. 3. Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.

^Item	^{Specification}
^{Chamber dimension (WDH)}	^{13005001460mm}
^{Chamber material}	^{SUS#304 stainless steel}
^{Temperature range}	^{RT to 70℃}
^{Temperature fluctuation}	^≤±1.0℃
^{Temperature uniformity}	^3℃
^{Humidity range:}	^≥75%RH
^Controller	^{Programmable controller, LCD touch screen}
^{Control mode}	^{Balance temperature humidity control (BTHC)}
^{Test cycle setting}	^{Exposure, condensation and water spray test cycle is programmable}
^{Water spray cycle}	^{Spray 18mins in every 120mins / spray 12mins in every 60mins}
^{Water usage}	^8L/day
^{Distance from sample to lamp}	^55±2mm
^{Centre distance between lamps}	^65~70mm
^{Irradiance range}	^{0.45~0.90W/m2}
^{Lamp power}	^40W/Piece
^{UV lamps}	^{Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime)}
^{Testing time}	^{0~999H, adjustable}
^{Specimen Size}	^{75×290mm (24pcs) / 75x150mm (48pcs), maximum thickness 5mm}
^{Protection system}	^{Overload short circuit protection}
	^{Over temperature protection}
	^{Water lacking protection}
	^{Earth leakage protection}
	^{Auto shut off protection}

^{Chamber Structure}

The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate. The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.
Control System: Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature. The radiometer probe is fixed so as to avoid the frequent installation and disassembly. The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement. The radiation intensity is not more than 50W/m2. The illumination and condensation can be controlled independently or alternating and circularly. Test Specimen Mounting: The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, uv aging testing chamber is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.

Product Effects

FAQ

 1. How can we guarantee quality?

Continuous testing is performed after production is completed to ensure product stability.

All parts come from manufacturers of world-renowned brands.

2.What can you buy from us?

Checkweigher,Packing machine,CNC machine

3. why should you buy from us not from other suppliers?

We are a manufacturer with ISO9001, CE international certificates, *12+ years of production experience
* 10+ years of foreign trade experience
*10+ national technology patents
*Exported more than 1,000 units without receiving complaints from customers

4. what services can we provide?
warranty:12 months free warranty, life-long maintenance.

Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;

Language Spoken:English,Chinese

Tag:

Place of Origin:	CHINA
Brand Name:	BOTO
Certification:	CE ISO
Model Number:	BT

Minimum Order Quantity:	1 SET
Price:	Negotiation
Packaging Details:	PLY-WOODEN CASE
Delivery Time:	20-30workdays
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000Set/month

Power::	Electronic	Certification::	ISO, CE
Customized Support::	OEM, ODM	Material::	SUS#304 Stainless Steel Plate
Temperature Range::	Ange: RT+10℃~70℃	Irradiance::	1.0W/m2
Package:	Strong Wooden Package	Testing Time::	0~999H, Adjustable
Highlight:	Accelerated UV Environmental Test Chamber , Laboratory UV Environmental Test Chamber , 1.0W/m2 Environmental Test Chamber
