| Salt Spray Chamber:: | Programmable | Inner Size:: | 108L,270L Selectable |
|---|---|---|---|
| Salt Spray Test Chamber: | 270L,selectable | Brine Temperature:: | 35±1 Degree Or 50±1 Degree |
| Power:: | Electronic | Spray Volume: | 1.0~2.0ml/80cm2/h (working At Least 16 Hours) |
| Salt Concentration: | The Concentration Of Sodium Chloride 5% Or The 5% | Air Pressure:: | 1.00±0.01kgf/cm2 |
| Spray Form:: | Programmable Spray | Salt Water Tank Temp. Range: | Rt.--50 Degrees, +/-0.5degree |
| High Light: | 108L Salt Spray Test Chamber,Intelligent Salt Spray Test Chamber,80cm2/H Salt Spray Test Chamber |
||

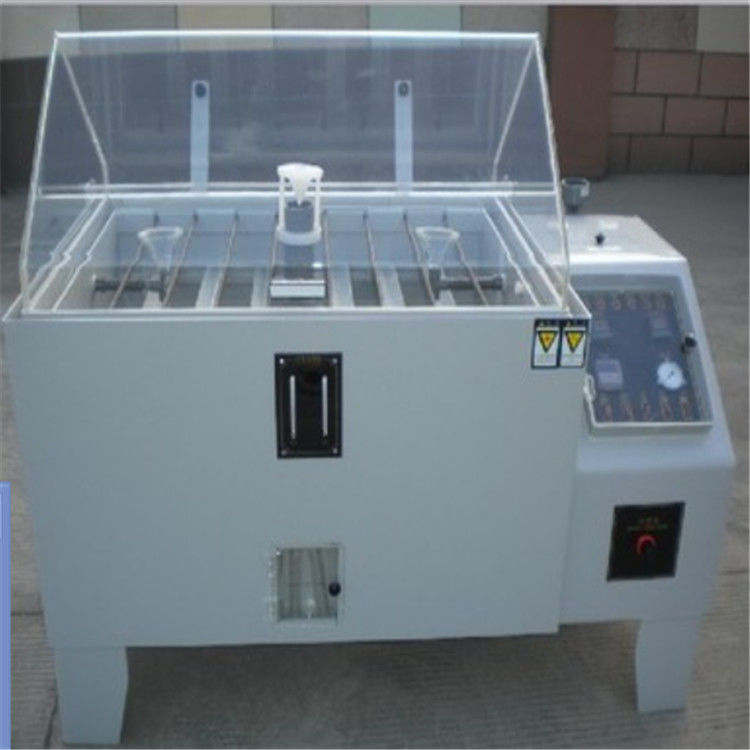

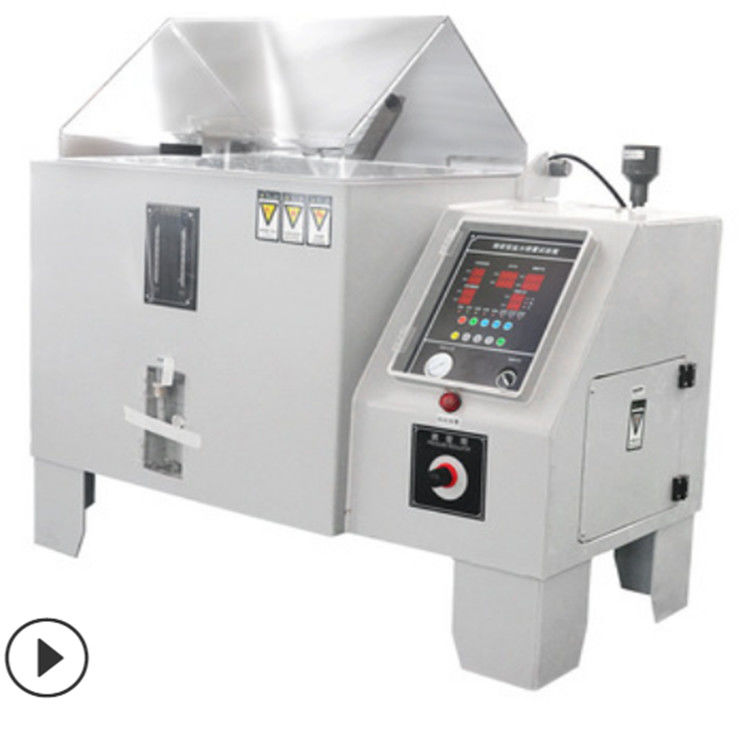

Intelligent Laboratory Salt Spray Test Chamber for Corrosion Test Equipment Salt Spray Test Chamber
Salt fog test instrument uses salt fog corrosion way to test the reliability of materials and protective coating to resist salt fog corrosion. It is widely applied to components and parts, electronic components, metal materials protective layer and other industrial products, etc.
Features
1. Automatic add water when water shortage, with a group of manually water
2. Special glass nozzle, guarantee non-crystalline block for 4000 hours
3. With dual over-temperature protection, water shortage warning, ensure safety use
4. Temperature device adopts digital display, SSR control, precision is 0.1 centigrade degree
Technical parameters: See the label.
|
Specification |
|||||
|
Model |
YSST-108 |
YSST-270 |
YSST-600 |
||
|
Internal Dim.WHD(mm) |
600*400*450 |
900*500*600 |
1200*800*500 |
||
|
External Dim.WHD(mm) |
1250*1050*910 |
1550*1210*1060 |
1700*950*1210 |
||
|
Temp. Range |
Chamber |
Room temp.-- 50ºC,±0.5ºC |
|||
|
Air |
Room temp.--63ºC,±0.5ºC |
||||
|
Salt |
Room temp.--50ºC,±0.5ºC |
||||
|
Saturated Air Pressure(Kg/m) |
0.8--2.0 |
||||
|
Spray Volume(m/80cm/hr) |
0.5--3.0 |
||||
|
PH |
Salt |
6.5--7.2 |
|||
|
Cu(CH COOH) |
3.0--3.2 |
||||
|
Exter,/Inter.Material |
P.V.C & P.P |
||||
|
Systems |
Salt Spray Veicle |
Air+acid(base)liquid |
|||
|
Heating |
SUS#304 & #316stainless steel heater+taflon |
||||
|
Controller |
Hydrometer,salinomerer,fog collector,glassbar |
||||
|
Other Components |
Digital electronic control+S.S.R |
||||
|
Savety Devices |
Overheating prevention circult-breaker,dehydration and |
||||
|
Power Source[K.W] |
AC 1Ψ 220V 60/50Hz |
||||
|
1.1 |
1.5 |
3.5 |
|||
|
Comply with ASTM B-117, B-287,B-380,JIS D-0201, D-0205, H-8681, Z-2371, K-5400^^ |
|||||
Package & Delivery
Package: Wooden cases, meet the international standard.
Delivery: In 15-20 working days.
Product details:
Production Process
Production Details
Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.
Company Profile
BOTO GROUP is a professional manufacturer of various kinds of testing equipment over 20 years. BOTO products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
Main equipment
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
Main market
The factory has the ability to calibrate, and the customer can also designate a ISO 17025 accredited third-party organization to calibrate and issue a calibration report.
Certification
The certificate is valid until June 17, 2024
Cooperative partners
BOTO ADVANTAGE
Customers photos
OUR TEAM
FAQ
1. How can we guarantee quality?
Continuous testing is performed after production is completed to ensure product stability.
All parts come from manufacturers of world-renowned brands.
