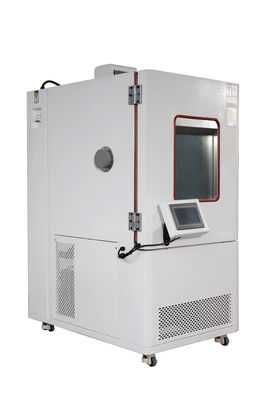

Rapid 220V 380V Temperature Shock Chamber Air Circulation

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: ISO GB
Model Number: B-T-80
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: PLY-WOODEN-CASE
Delivery Time: 25~30days
Payment Terms: Western Union
Supply Ability: 10000sets per year
Relative Humidity(Temp&Humi): RH20%-98% (Customize) Temp Range: -70°C ~ 150°C (Customize)
Heat-up Time(min): 1°C~15°C/min(Linear Or Non-linear) Pull-down Time(min): 1°C~15°C/min(Linear Or Non-linear)
Temp Fluctudtiont: ±0.5°C Temp Uniformity: ±1°C
Temp&Humi Deviation: ±1°C /±3%RH Interior: SUS#304 Stainless Steel Plate
High Light:

Rapid Temperature Shock Chamber

,

R4O4A Temperature Shock Chamber

,

Water Cooled Temperature Shock Chamber

Rapid Temperature Change Test Chamber 220V 380V Temperature Shock Chamber

Product Description

The rapid temperature change test box is used to test the performance of materials in various rapid temperature change environments and test the resistance, cold resistance, dry resistance, and humidity resistance of various materials. Mainly used in the national defense industry, aviation industry, automobile parts, electronic parts, plastics industry, food industry, pharmaceutical industry and related product research and development, quality management engineering test specifications.



Rapid 220V 380V Temperature Shock Chamber Air Circulation 0



Features

1. Imported compressors and refrigeration accessories from internationally renowned brands ensure the stability of the refrigeration system.
2. Special air circulation design, good temperature and humidity distribution uniformity.
3. A full range of imported microcomputer controllers, color touch screens, Chinese and English systems, program setting function can be done, test data can be exported to USB.
4.The cause of the failure can be displayed, making it easy to troubleshoot.
5.Ultra-quiet design, effectively reducing equipment operating noise.
6.Multiple safety protection: refrigerant high pressure protection, compressor overload protection, current overload protection, over temperature protection, leakage protection. It can ensure sample safety and more effectively protect equipment components from overloading operation, greatly reduce the incidence of equipment failures, and make equipment operation more stable and reliable.

Specification

Model Temp B-T-80
(A~E)
B-T-120
(A~E)
B-T-225
(A~E)
B-T-504
(A~E)
B-T-1000
(A~E)
Temp&Humi B-TH-80
(A~E)
B-TH-120
(A~E)
B-TH-225
(A~E)
B-TH-504
(A~E)
B-TH-1000
(A~E)
Internal Dim(CM)
(W*H*D)
40×50×40 45×60×45 60×85×80 70×90×80 100×100×100
External Dim(CM)
(W*H*D)
75×203×203 80×208×208 95×243×243 105×243×243 135×263×263
Relative humidity(Temp&Humi) RH20%-98% (10%~98% Customize)
Temp Range -70°C ~ 150°C (100°C Customize)
A:0°C B: -20°C C: -40°C D: -60°C E: -70°C
Heat-up time(min) 1°C~15°C/min(Linear or non-linear)
Pull-down time(min) 1°C~15°C/min(Linear or non-linear)
Temp Fluctudtiont ±0.5°C
Temp Uniformity ±1°C
Temp&Humi Deviation ±1°C /±3%RH
Interior SUS#304 Stainless steel plate
Exterior Coating or SUS#304 Stainless steel plate
Power Source AC:220V/380V 50/60Hz
Power(KW) Subject to technical plan
Wind Cycling Way Centrifugal fan-broadband type forced air circulation
Refrigeration Way Single stage compression refrigeration
Refrigerator French Tecumseh
Refrigerants R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Heater Nickel chrome heating wire heater
Humidifier Semi-closed steam and wet
Water Supplying Way Automatic cycling water supply



Rapid 220V 380V Temperature Shock Chamber Air Circulation 1

Production Details



Rapid 220V 380V Temperature Shock Chamber Air Circulation 2



Rapid 220V 380V Temperature Shock Chamber Air Circulation 3



Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.



Workshop Machine

Rapid 220V 380V Temperature Shock Chamber Air Circulation 4



Company Profile



Rapid 220V 380V Temperature Shock Chamber Air Circulation 5

BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



Rapid 220V 380V Temperature Shock Chamber Air Circulation 6





Main equipment

Rapid 220V 380V Temperature Shock Chamber Air Circulation 7



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market



Rapid 220V 380V Temperature Shock Chamber Air Circulation 8



The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.



Certification





Rapid 220V 380V Temperature Shock Chamber Air Circulation 9



TRADING PROCESS



Rapid 220V 380V Temperature Shock Chamber Air Circulation 10

Cooperative partners



Rapid 220V 380V Temperature Shock Chamber Air Circulation 11



Our Service

1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our technical team
6.Warranty period 12 months






Package&Delivery
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.30days after confirming order,detail delivery date should be decided according to production season and order quantity.

Rapid 220V 380V Temperature Shock Chamber Air Circulation 12
