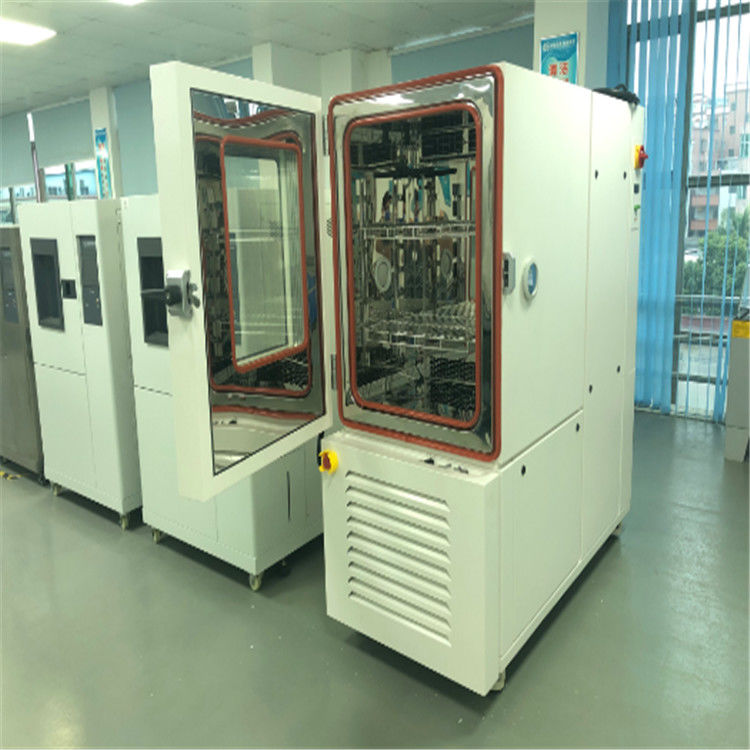

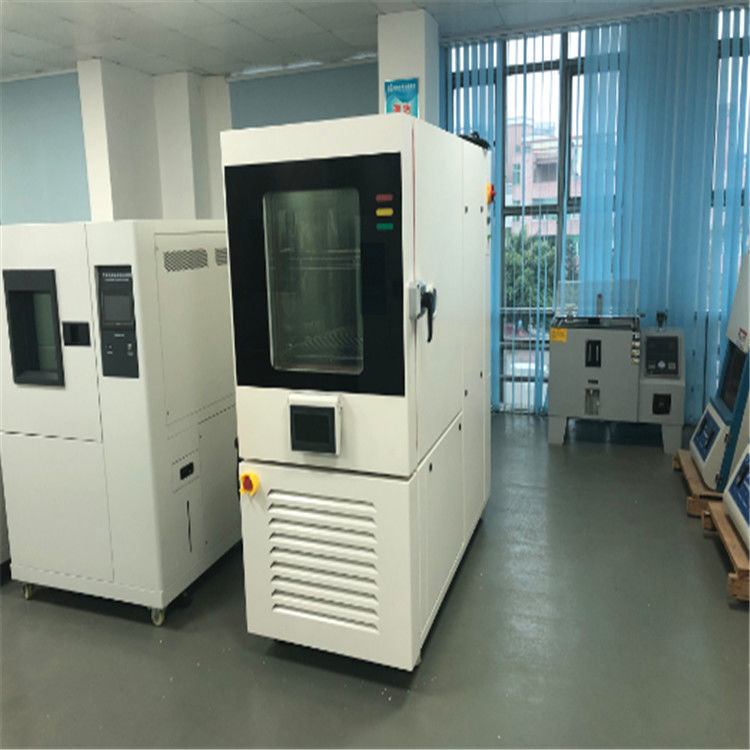

Rapid Temperature Change Ess Environment Test Chamber
Product Description:
The equipment is a device for environmental stress screening (temperature cycle), high and low temperature environmental adaptability and reliability test. For various electromechanical, electronic products are used to detect early faults, simulate the actual temperature environment and assess the ability of the product to withstand temperature.
Standards:
GB/T 2423.1-2008, GJB150.4A-200, GB/T 2423.22-2012/IEC60068-2-14:2009, ISO2423.22-1987
Specifications:
| Model |
dry heat |
B-T-80(A~E) |
B-T-120(A~E) |
B-T-225(A~E) |
B-T-504(A~E) |
B-T-1000(A~E) |
| damp heat |
B-TH-80(A~E) |
B-TH-120(A~E) |
B-TH-225(A~E) |
B-TH-504(A~E) |
B-TH-1000(A~E) |
| Internal Dim(cm) |
40x50x40 |
45x60x45 |
60x85x80 |
70x90x80 |
100x100x100 |
| External Dim(cm) |
75x203x203 |
80x208x208 |
95x243x243 |
105x243x243 |
135x263x263 |
| Relative Humity(Only damp heat |
20%~98%RH(10%~98%RH, can be customized ) |
| Temp Range |
’-70℃~180℃(100℃)
A:0℃ B:-20℃ C:-40℃ D:-60℃ E;-70℃ |
| Heat-up time(min) |
1℃~15℃/min(linear and non-linear) |
| Pull-down time(min) |
1℃~15℃/min(linear and non-linear) |
| Temp Fluctudtion |
±0.5℃ |
| Temp Uniformity |
±1.0℃ |
| Temp Deviation |
±1.0℃/±3.0%RH |
| Interior |
SUS#304Stainless steel plate |
| Enterior |
Coating or SUS#304Stainless steel plate |
| Power Source |
AC:220V/380V 50/60Hz |
| Power(KW) |
Reference Technical Scheme |
Production Process

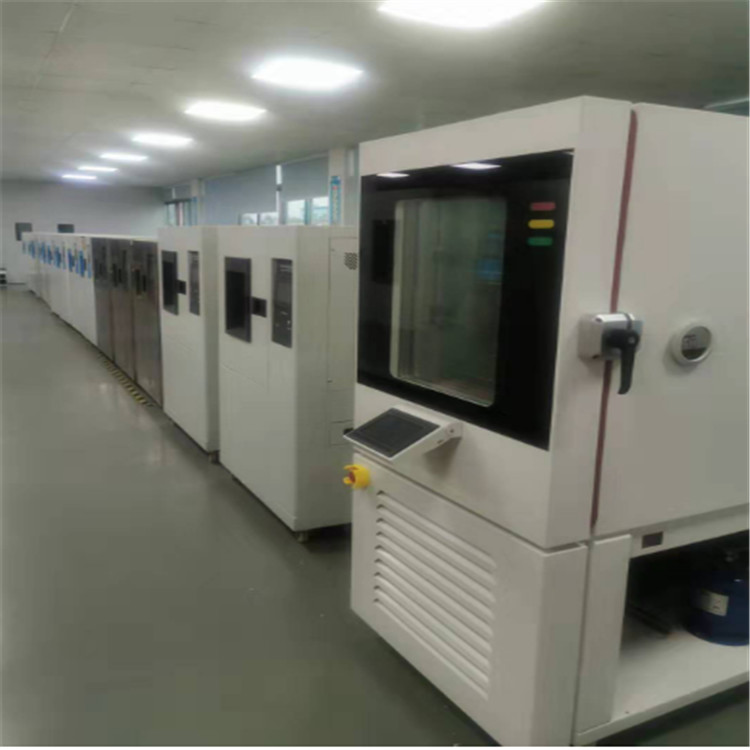

Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.
Main equipment
- Constant Temperature and Humidity Test Chamber
- Salt Spray Test Chamber / Corrosion Cyclic Salt Spray Test Chamber
- UV Accelerated Aging Test Chamber
- Mini Environmental chamber / Desktop Environmental Test Chamber
- Walk in Constant Temperature and Humidity Lab
- High Temperature Chamber and Other Lab Test Equipment etc.
Main market
PACKAGE&DELIVERY
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.30days after confirming order,detail delivery date should be decided according to production season and order quantity.
FAQ
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service.
