| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO GB JIS |
| Model Number: | BTHV225-70A |
| Minimum Order Quantity: | 1SET |
| Packaging Details: | PLY-WOODEN-CASE |
| Delivery Time: | 30~60days |
| Supply Ability: | 500SETS per year |
| Temperature Range: | -70℃~+150℃ | Humidity Range: | RH20%-98% |
|---|---|---|---|
| Temperature Deviation: | ±2°C | Temperature Fluctuation: | ±0.5°C |
| Heating Rate: | 1°C~15°C/min(customesize) | Cooling Rate: | 1°C~15°C/min(customesize) |
| Refrigeration Method: | Mechanical Double-stage Refregeration System | Compressor: | Semi-Hermetic/Hermetic Compressor |
| High Light: | RH20% Temperature Cycling Chamber,Double Stage Temperature Cycling Chamber,Hermetic Temperature Cycling Chamber |
||
Three Comprehensive Test Box Vibration Composite Environment Chamber Vibration Test System Agree Chamber
Product Description

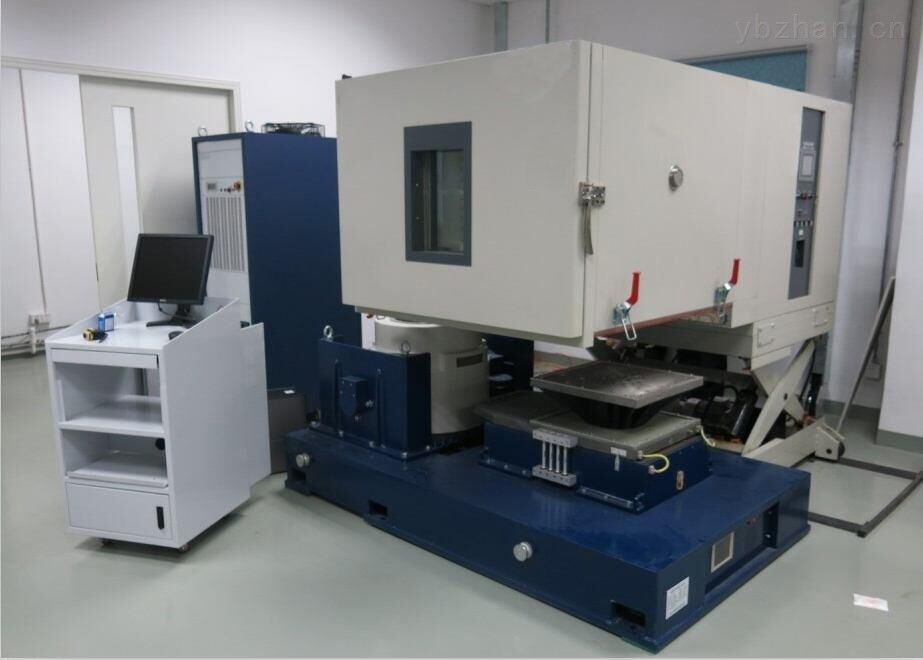

Three comprehensive test box can simulate the temperature and humidity environment. After being matched with the shaking table, comprehensive reliability tests of temperature, humidity, and vibration can be carried out. It can be matched with the vertical shaking table or the horizontal shaking table. Sliding table coordination.
Three comprehensive vibration testing machine is suitable for electronic and electrical products, automotive industry, military industry enterprises and their original components and other materials in high temperature, low temperature, damp heat, alternating damp heat and vibration environment when storing, transporting, and using for adaptability testing. The temperature, humidity and vibration three comprehensive test box is mainly used to perform environmental simulation tests on the physical and other related characteristics of the product under low temperature, high temperature, damp heat, alternating damp heat and vibration conditions in accordance with national standards or user-defined requirements. , After the test, the performance of the product is judged through testing, whether it can still meet the predetermined requirements, so that it can be used for product design, improvement, identification and field inspection.
Features
1. The use of non-reactional door handles makes the operation easier
2. It is composed of a constant temperature and humidity box and a V series electromagnetic vibration test.
3. The vibration controller, sensor and power amplifier are all imported from the United States
4. Can be used for sinusoidal vibration (standard equipment), random vibration (optional) and shock (optional) control
5. It can be designed and manufactured to meet the requirements of low air pressure
6. The observation window adopts multi-layer hollow tempered glass with a laminated conductive film on the inside (you can clearly observe the test process)
7. The lead hole (on the left side of the machine) can be used for external test power lines or signal lines (50mm in diameter)
8. Multiple safety protections: safe and reliable grounding protection device, power supply undervoltage, overvoltage, phase loss, phase sequence error protection, automatic protection of ultra-high temperature, heater short circuit/overload protection, refrigerator overpressure/overload protection, Refrigeration coil overvoltage protection, blower motor overload/overheat protection, control board overcurrent protection, leakage protection.
Specification
| Model | Air-cooled condenser Water-cooled condenser |
BTHV225-70A BTHV225-70A |
BTHV512-70A BTHV512-70A |
BTHV1000-70A BTHV1000-70A |
|
| Interior capacity(L) | 216 | 512 | 1000 | ||
| Interior Dimension(cm) | Width | 60 | 80 | 100 | |
| Height | 60 | 80 | 100 | ||
| Depth | 60 | 80 | 100 | ||
| Exterior dimension(mm) | Depends on the model | ||||
| Performance parameter |
Temperature range | -70℃~+150℃ | |||
| Humidity range | RH20%-98% | ||||
| Temperature deviation | ±2°C | ||||
| Temperature fluctuation | ±0.5°C | ||||
| Relative Humidity fluctuation | ±5%RH(≤75%RH) ±3%RH(≤75%RH) | ||||
| Heating rate | 1°C~15°C/min(customesize) | ||||
| Cooling rate | 1°C~15°C/min(customesize) | ||||
| Refrigeration system | Refrigeration method | Mechanical double-stage refregeration system | |||
| Compressor | Semi-Hermetic/Hermetic compressor | ||||
| Cooling pattern | Air/Water-cooled condenser | ||||
| Control system | Controller | TFT touch screen | |||
| Language | Chinese or English | ||||
Package&Delivery
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.30days after confirming order,detail delivery date should be decided according to production season and order quantity.
