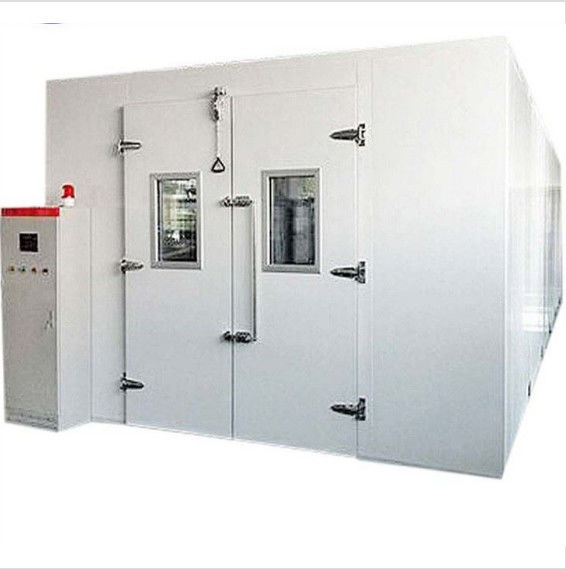

Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: ISO GB JIS
Model Number: B-TH3.75-D95
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: PLY-WOODEN-CASE
Delivery Time: 30~60days
Supply Ability: 1000SETS per year
Volume: 10m³ , 15m³ , 20m³, 30m³, 50m³, 100m³ , As Per Customer Requirements Temperature Range: -65 °C ~+80 °C
Humidity Range: 20%~95%R.H. Accuracy/uniformity: ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H.
Accuracy/volatility: ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H. Cooling Time: 5.0 °C /minute
Inside Material: SUS#304 Stainless Steel Insulation Material: High-temperature High-density Amino Acid Ethyl Ester Foam Insulation Materials,
Cooling System: Water-cooled / Two-stage Compressor Power: 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz
High Light:

SUS304 Walk In Humidity Chamber

,

Water Cooled Walk In Humidity Chamber

,

Walk In Humidity Chamber 220VAC



Walk In Temperature Humidity Chamber environmental Test Chambers



Product Details:
Step-in high and low temperature test box is a necessary test equipment in the new energy industry. It can carry out high temperature, low temperature, temperature cycle, rapid temperature change, high and low temperature alternating humidity and heat test according to IEC60068, MIL-STD-81OF, GJB150A, GB2423 and other standards. Its characteristics are as follows:

1. It can adopt integral structure or combination of reservoir plate units, the content area can be arbitrarily expanded and easy to disassemble and assemble

2. The insulating layer adopts high-strength polyurethane (PU) foaming and high-density glass fiber cotton, which can avoid energy loss

3. Multilayer filtration and water replenishing device and automatic water replenishing device. There is no need for manual water addition and automatic water scarcity protection.

4. Cases are equipped with test holes, which can be used for external test power lines or signal lines;

5. Modular refrigeration units can ensure manufacturing quality, and maintenance and replacement are very convenient;

6. Low temperature and continuous effective operation for 1000 hours without frost, and temperature does not return. Rise.



Control method and characteristics:

Precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to make the system's heating / humidification reduction, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.





Optional accessories:

1. Cable Port: Two size of cable port is available: &50mm, &100mm.

2. Double door

3. Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.

4. Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.

5. Carry-in inclined platform: Provided below the door to facilitate moving of specimens in and out through the door.

6. Entire ceiling blow-out duct

7. The extremely wide air inlet reduces the airflow rate (down to apprrox. 0. 5m/s)

8. Dehumidifier

9. The rotation regenerating dehumidifier (M-300)ensures precise control of low humidity (21°C, 23%RH) for electrostatic reliability tests.

10. Temperature and humidity recorder

11. 100mm width recording paper with 6 dots

12. 180mm width recording paper with 12 dots

13. Status indication lamp

14. Provide to signal chamber status and warnings when normal running, a malfunction running or stand by occurs.

15. Water purifier

16. Provided to keep the humidifier heater free from scale and ensure the supply of water to humidifier.

17. Power socket



Model BT-K-A
Volume 10m³ , 15m³ , 20m³, 30m³, 50m³, 100m³ , as per customer requirements
Temperature range -65 °C ~+80 °C
Humidity range 20%~95%R.H.
Accuracy/uniformity ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H.
Accuracy/volatility ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H.
Cooling time 5.0 °C /minute
Inside material SUS#304 Stainless Steel
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling system Water-cooled / two-stage compressor
Protection No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system
Accessories recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball
Controller German Siemens PLC or TH-900C Korea or TEMI
Compressor France's Tecumseh Brand or Germany Bitzer
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz





Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 0





Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 1



Production Process



 Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 2

Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 3

Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 4



Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 5



Production Details



Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 6

Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 7

Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 8

Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.





Company Profile

Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 9

BOTO GROUP is a professional manufacturer of various kinds of testing equipment over 20 years. BOTO products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.



Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 10



Main equipment

In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market



Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 11



The factory has the ability to calibrate, and the customer can also designate a ISO 17025 accredited third-party organization to calibrate and issue a calibration report.



Certification

Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 12

The certificate is valid until June 17, 2024



Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 13



Cooperative partners



Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 14



BOTO ADVANTAGE



Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 15



Customers photos



Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 16

Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 17

OUR TEAM

Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 18


Package&Delivery
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.30days after confirming order,detail delivery date should be decided according to production season and order quantity.

Double Door Water Cooled SUS304 Walk In Humidity Chamber 220VAC 19
FAQ
1. How can we guarantee quality?
Continuous testing is performed after production is completed to ensure product stability.
All parts come from manufacturers of world-renowned brands.
2.What can you buy from us?
Checkweigher,Packing machine,CNC machine
3. why should you buy from us not from other suppliers?
We are a manufacturer with ISO9001, CE international certificates,
*12+ years of production experience
* 10+ years of foreign trade experience
*10+ national technology patents
*Exported more than 1,000 units without receiving complaints from customers
4. what services can we provide?
warranty:12 months free warranty, life-long maintenance.
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Japanese,Chinese,
