| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO |
| Model Number: | BT-HGZ-CO2-500 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiation |
| Packaging Details: | PLY-wooden case |
| Delivery Time: | 21 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 2100set/month |
| Model: | BT-HGZ-CO2-500 | Internal Dimension WxDxH(cm): | 66×65×120 |
|---|---|---|---|
| Internal Volume (L): | 515 | Temp.Range: | Light: 10℃~50℃, No Light: 5°C~50℃ |
| Temp.Uniformity: | ±2°C | Temp.Fluctuation: | ±0.5°C |
| Temperature Display Accuracy: | 0.1°C | Temperature Control Accuracy: | ±0.1°C |
| High Light: | Illumination CO2 Incubator,CO2 Incubator 500L,Carbon Dioxide CO2 Incubator |
||

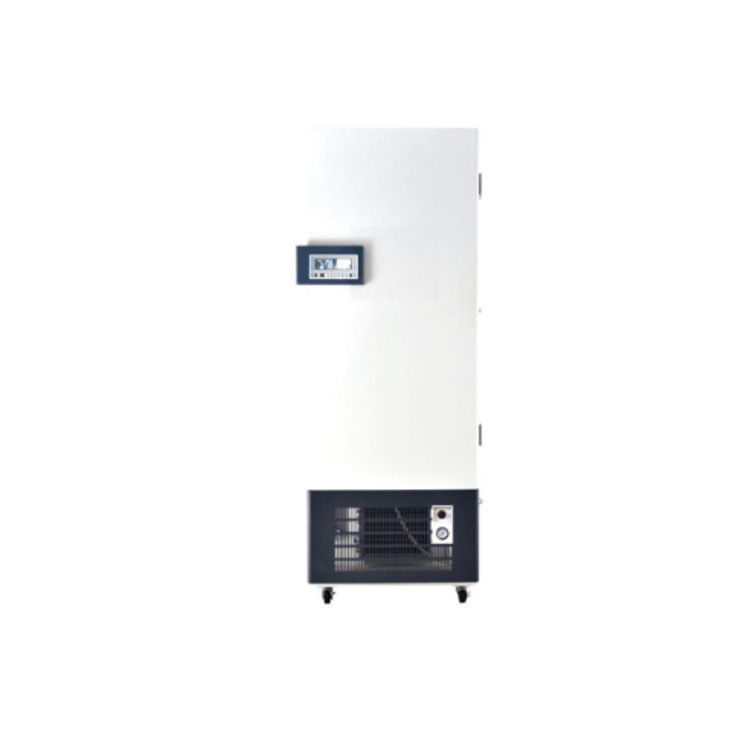

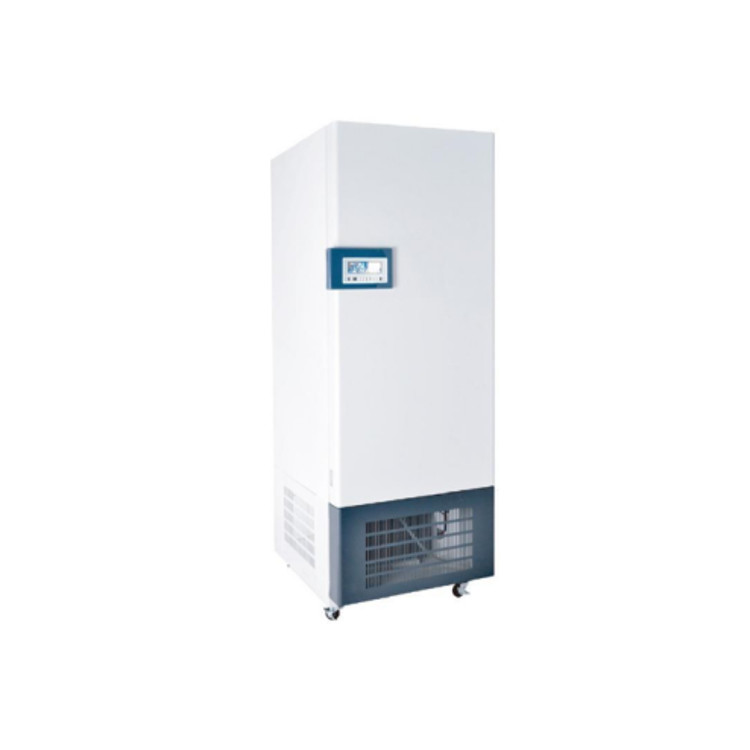

CO2 Incubator With Illumination For Laboratory Scientific Research Ideal Equipment 500L
Product description
Carbon dioxide light incubator, the left and right sides of the fluorescent lamp with the corresponding power, in the outside door and has good heat preservation and transmission of light on both sides of special glass, in order to reduce the heat to fluorescent lamp incident light, satisfy indoor light samples required, at the same time for observation, with cold and hot automatic control functions, equipped with fan form the forced convection in the working chamber Is the average temperature in the working room is better, the machine technology is advanced, the studio is made of stainless steel plate, the outer box is made of U quality cold rolled steel plate, the surface is sprayed with plastic, the whole box is beautiful in shape.
Scope of application
Carbon dioxide illumination incubator is a high precision thermostatic equipment for cold and heat with illumination function and carbon dioxide concentration control. It is used to study the effect of atmospheric carbon dioxide concentration on the whole process of plant growth. Can also be used for plant germination, seedling, microbial culture, water quality monitoring of BOD determination, and other purposes of constant temperature test. Is the biological genetic engineering, medicine, agriculture and forestry environment science, animal husbandry and aquatic products and other production, scientific research, teaching departments of the ideal experimental equipment.
Features
1. The inner box is equipped with a fan to form a micro air circulation to improve the temperature uniformity in the box.
2. Microcomputer intelligent P.I.D. temperature controller, temperature control accuracy; With parameter memory function, call automatically resume operation.
3. Use CUBIGEL refrigeration compressor, high efficiency and low consumption; Fluorine-free environment-friendly refrigerant.
4. The infrared carbon dioxide sensor is not affected by changes in temperature and humidity. It is suitable for frequent use occasions of opening and closing doors.
5. Outer box material: cold rolled steel plate surface spray, internal material: SUS304 stainless steel plate.
6. The inner box adopts circular arc structure design, easy to clean.
7. Can pull the movable shelf, the spacing is adjustable.
8. Caster wheels are installed for easy movement.
9.(Optional)Independent external temperature protection device.
10.(Optional)Independent external temperature message alarm module (without data flow card), with mobile APP query function.
11.(Optional)RS485 communication serial port.
12.(Optional)RS485 to USB switching interface.
13.(Optional)Miniature thermal printer or needle printer.
Temperature and humidity electric heating and circulation
Air supply mode: high impedance motor axial fan. Air supply mode for the horizontal air arc circulation design.
Heating system: microcomputer intelligent automatic control electric heating power balance temperature regulation + stainless steel tube heater.
Refrigeration system
Refrigeration device: full airtight compressor + air cooled condensant.
Heating load regulation: multi-stage heat exchange device, strong cooling heat exchange capacity.
Cooling and system: the air in the circulating box is heated through the fin-type evaporative heat exchanger, and the air temperature and dew point temperature are continuously reduced to achieve the effect of cooling.
Anti - condensation, anti - freezing: using heat pipe technology, anti - condensation, anti - freezing design.
Rate refrigeration module
A. Evaporator: fin-type copper tube evaporator with internal thread, aluminum heat exchanger.
B. Condenser: fin-type copper tube evaporator with internal thread, aluminum heat exchanger + large flow shaft dissipative heat fan.
C. Drying filter: European Danfors drying filter.
D. Refrigerant: environment-friendly refrigerant R134a.
E. Throttling device: capillary tube.
Protection device
1. Circuit breaker: small switch circuit breaker
2 controller internal protection: a temperature and humidity sensor: open circuit or short circuit (over range); B over temperature protection: high temperature protection setting of the set temperature.
3. External fault detection protection: a thermal protection: thermal protection - overload protector (temperature 1 group); B Compressor protection: compressor protection - compressor pressure protection, overload protector, overheating protection.
4. Abnormal fault alarm: abnormal fault occurrence type, automatic power protection, alarm sound.
Spec
| Model | BT-HGZ-CO2-150 | BT-HGZ-CO2-250 | BT-HGZ-CO2-300 | BT-HGZ-CO2-400 | BT-HGZ-CO2-500 |
| Temp.Range | Light: 10℃~50℃, no light: 5°C~50℃ | ||||
| Temp.Uniformity | ±2°C | ||||
| Temp.Fluctuation | ±0.5°C | ||||
| Temperature display accuracy | 0.1°C | ||||
| Temperature control accuracy | ±0.1°C | ||||
| CO2 concentration control | Normal atmospheric concentration ~ 5000ppm | ||||
| Illuminance | 2 surface illumination 6000LX; LED tube, color temperature 6500K | ||||
| Illuminance adjustment grading | Level 6 is adjustable | ||||
| Circulating mode inside the box | Breeze stirring mode | ||||
| Alarm type | Over-temperature alarm, undertemperature alarm, temperature probe damage alarm | ||||
| Temperature controller | LCD screen, P.I.D. temperature controller, 30 segment program | ||||
| Internal dimension WxDxH(cm) | 42×42×93 | 47×46×118 | 49×47.5×128 | 56×60×120 | 66×65×120 |
| Internal volume (L) | 164 | 255 | 298 | 403 | 515 |
| External dimensions WxDxH(cm) | 61.5×72.5×157 | 66.5×76.5×182 | 68.5×78×192 | 75.5×90.5×184 | 85.5×95.5×184 |
| Shelf | 3 | 3 | 3 | 3 | 3 |
| Power(W) | 1000 | 1500 | 2000 | 2500 | 3000 |
| Power supply | 1Ø 220V 50Hz | ||||
| Remark | ※ External width (W) including 4cm accessories, depth (D) including 3cm accessories, height (H) including 6.5cm/8cm (over 400L) accessories. ※Performance parameters test under no-load conditions, ambient temperature 20℃, ambient humidity 50%RH. ※ Can not be used for long time cold storage. |
||||
Product drawing
PACKAGE&DELIVERY
OUR CERTIFICATES
OUR FACTORY&FACTORY TOUR
OUR TEAM&EXHIBITION
FAQ
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service.
