| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO |
| Model Number: | B-T-HZ-18EK |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2100set/month |
| Product Name: | Salt Spray Corrosion Test Chamber | Model: | B-SST-90 |
|---|---|---|---|
| Internal Dim: | 90x60x50 | External Dim: | 140x80x139 |
| Power And Voltage: | AC:220V 50Hz/AC:380V 60Hz | Cabinet Material: | Corrosion-resistant Polymer Material |
| Laboratory Temperature: | A:25℃~70℃ B:0℃-70℃ C:-20℃-70℃ D:-40℃-70℃ | Saturated Air Pressure: | 0.8-2.0±0.01 |
| High Light: | Fully Automated Laboratory Incubator,240V Moisture Proof Laboratory Incubator,SS Versatile Laboratory Incubator |
||

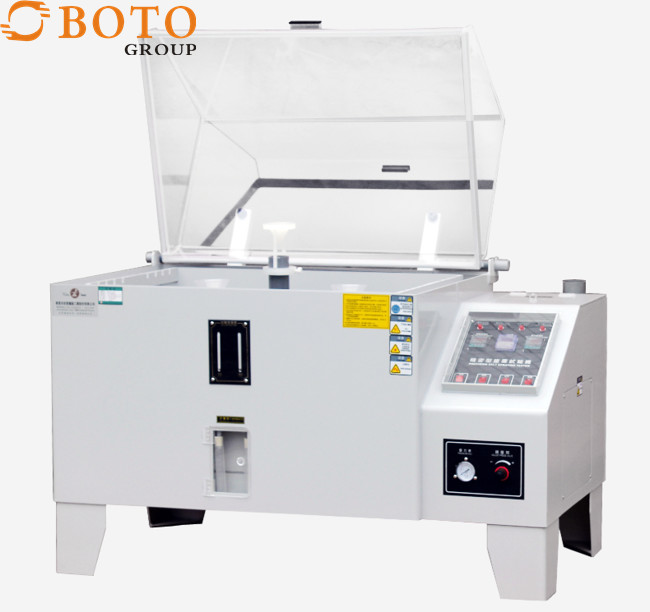

Salt Spray Test Chamber Climatic Manufacturer Salt Spray Corrosion Test Chamber DIN50021
Description:
Salt spray corrosion test chamber through the assessment of the salt spray corrosion ability of materials and their protective layer, as well as similar protective layer process quality comparison, at the same time can assess the ability of some products to resist salt spray corrosion; The product is suitable for parts, electronic components, protective layer of metal materials and industrial products salt spray corrosion test.
Salt spray test chamber is used to test the reliability of corrosion resistance of the tested samples by means of salt spray corrosion. Salt spray refers to the dispersion system composed of tiny droplets containing salt in the atmosphere, which is one of the three prevention series of artificial environment. Many enterprise products need to simulate the damage caused by the surrounding climate on the products, so the salt spray test chamber should be shipped. Salt spray test is divided into two kinds: neutral salt spray and acid salt spray. The difference lies in the standards and test methods they meet.
Display:
1. Adopt the original imported from Japan, 7 inches HD true color LCD touch screen.
2. Real-time monitoring. (monitoring controller real-time data, signal point status, actual output status)
3.3.1. The controller can store the historical data within 600 days (when the recording interval is more than 1 minute and the control data is recorded at the same time in the 24-hour running state) and play back the uploaded historical data curve.
4. When the machine is shut down, you can insert the USB disk at any time to export or upload the data, and you can view the exported files on the computer or convert them into EXCEL format through the random gift software.
5. The instrument is equipped with USB port, which can directly drive the mini printer to preview and print through the port (optional).
6. Control by P.I.D + S.S.R system with channel coordination control
Model:
| Model | B-SST-60 | B-SST-90 | B-SST-120 | B-SST-160 | B-SST-200 | |
| Internal Dim(W*H*D) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 | |
| External Dim(W*H*D) | 108x63x119 | 140x80x139 | 178x120x149 | 230x130x149 | 270x130x159 | |
| Cabinet Material | Corrosion-resistant polymer material | |||||
| Laboratory temperature (℃) | A:25℃~70℃ B:0℃-70℃ C:-20℃-70℃ D:-40℃-70℃ | |||||
| Saturated air barrel temperature(℃) | Saline test method:35±1℃/Corrosion test method:50±1℃ | |||||
| Saturated air pressure (kg/c㎡) | 0.8-2.0±0.01 | |||||
| Salt spray sedimentation rate (ml/80c㎡.h) | 1～2mml／80cm2．h(可按) 1~2mml/80 cm2.h(Controllable) |
|||||
| PH value | Saline test method:6.5-7.2/Corrosion test method:3.0-3.2 | |||||
| Power Source | AC:220V 50Hz/AC:380V 60Hz | |||||
