| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO9001 |
| Model Number: | BT-300B |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | PLY-Wooden case |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000set/month |
| Model: | BT-300B | Maximum Test Force(kN): | 300 |
|---|---|---|---|
| Accuracy Level: | 1 | Collection Method: | Spoke Load Sensor |
| Piston Stroke(mm): | 200 | Clamping Method: | Hydraulic |
| Test Control Method: | Microcomputer Servo Control | Compression Test Space(mm): | 600 |
| Tensile Test Space(mm): | 700 | Compression Platen(mm): | Φ148 |
| Round Sample Clamping Range(mm): | Φ10-30 | ||
| High Light: | 2KN Universal Tensile Testing Machine,200mm Piston Stroke Tension Testing Machine,ETM Control Tension Testing Machine |
||
Universal Tensile Testing Machine environmental Test Chambers
Application:
Microcomputer-controlled electronic universal testing machine is a high-precision.

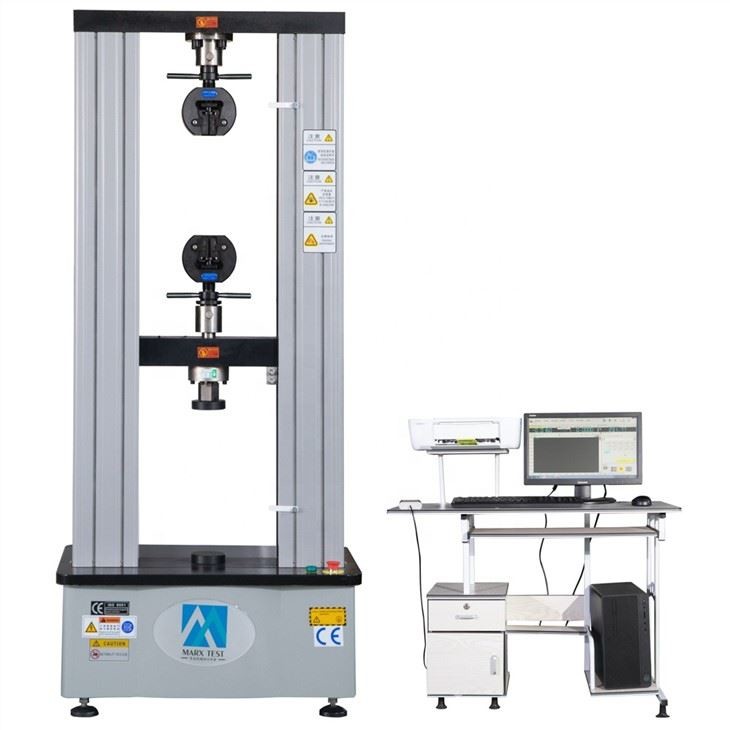

Computer display electronic universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling, tearing and other mechanical properties.
This type is mainly for the tensile strength testing of insulator.
2. Features
1) Can do high temperature test by high temperature oven and furnace
2) Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures
3) Can be customized height, width, and follow any test standard or customer request
4) Also have ETM Computer-control Type.

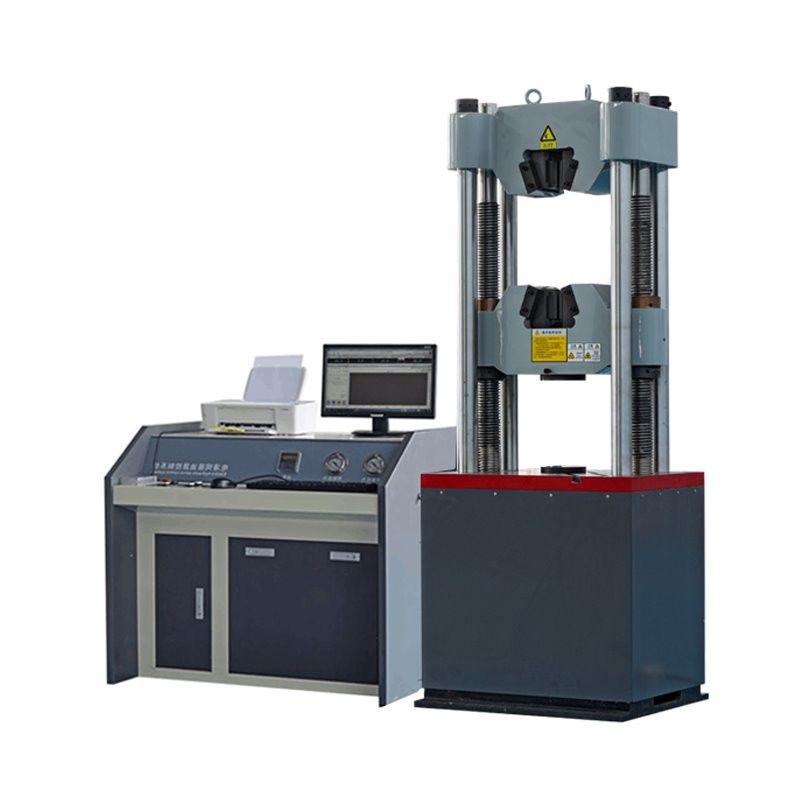

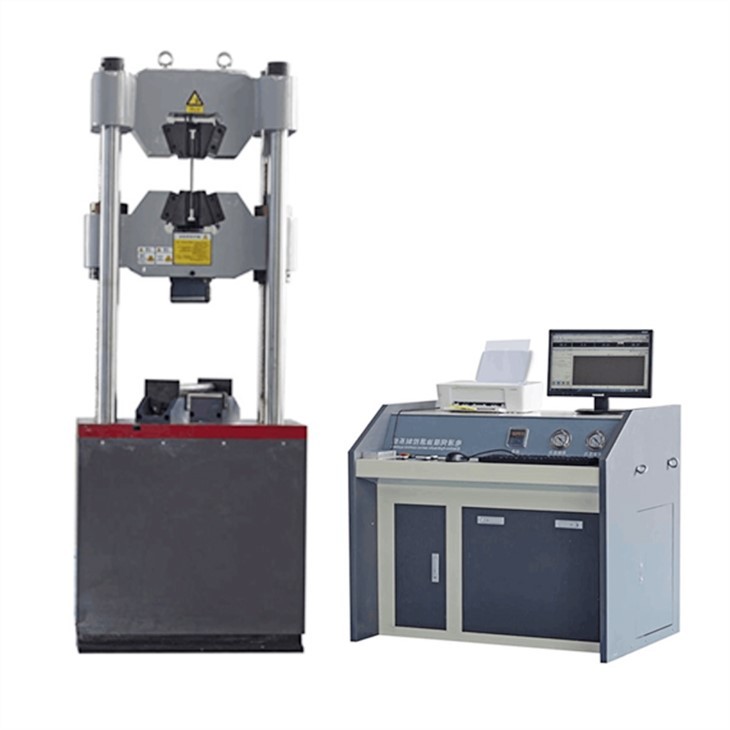

This series of testing machines is clamped in the form of hydraulic jaws, controlled by a hand-controlled valve to control the testing machine, and a testing machine that displays the test curve by a microcomputer screen display. lt is mainly used to stretch, compress and bend metal and non-metal materials. Tests such as cutting, shearing, etc., computter screen display load curve, force value, loading speed, displacement, etc., aytomatically record data, print data results. The host uses four-column double-screw test space architevture and high-strength, high-toughness, and beautiful protection nets for securityprotection. It is a necessary equipment for research institutes, matallurgy and machinery factories, quality in spection stations, and universities and colleges.

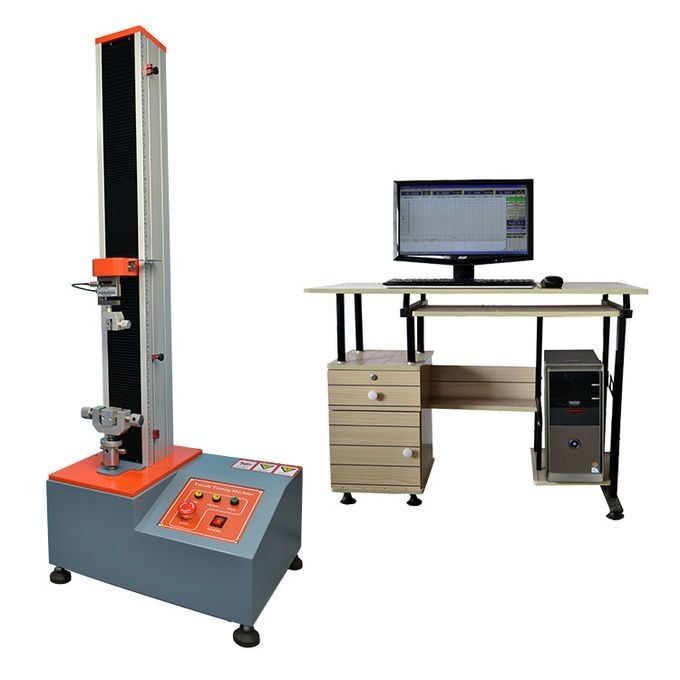

The series electronic type testing machine is widely used for the mechanical testing of stretching, compressing, bending, shearing, peeling and tearing of non-metal materials, such as rubber, plastics, fabrics, electric wires and cables, composite materials, leather, waterproof roll, non-woven fabrics, earthwork cloth and paper sheets, etc. as well as the metal materials, such as metal wire, metal foil, metal sheets and metal bars, etc. The universal testing machine is suitable to be used in the fields, such as quality inspection, education and scientific research, aerospace, ferrous metallurgy, automobile industry and construction and building materials, etc.
Features:
1. Computer + Software control and display 6 kinds test curves:
Force-displacement, force-deformation, stress-displacement, stress-deformation, force-time, displacement-time
2. Can be installed extensometer to test deformation of rubber or metal material
3. Can do high temperature test by high temperature oven and furnace
4. Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures
5. Can be customized height, width, and follow any test standard or customer request
Equipment summary:
| Model | BT-300B | BT-600B | BT-1000B | |
| Maximum test force(kN) | 300 | 600 | 1000 | |
| Accuracy level | 1 | |||
| Collection method | Spoke load sensor | |||
| Piston stroke(mm) | 200 | |||
| Clamping method | Hydraulic | |||
| Test control method | Microcomputer servo control | |||
| Compression test space(mm) | 600 | |||
| Tensile test space(mm) | 700 | |||
| Total power(kW) | 1.5 | |||
| Compression platen(mm) | Φ148 | Φ198 | Φ225 | |
| Round sample clamping range(mm) | Φ10-30 | Φ13-40 | Φ13-40 | |
| Flat sample clamping range(mm) | 0-10 | 0-15 | 0-20 | |
| Bending fulcrum span(mm) | 50-300 | |||
| Bending heart / stick diameter(mm) | 50/50 | |||
| Number of columns (screws) | 6 column | |||
| Mainframe dimensions(mm) | 810*560*1910 | 880*570*2050 | 940*640*2250 | |
| Host weight(kg) | ≈1620 | ≈2000 | ≈2600 | |
| Control cabinet size(mm) | 1010*640*840 | |||
| Control cabinet weight(kg) | 150 | |||
Technical parameter:
| Model | Artificial board testing machine |
| Max load | 500N, 1KN, 2KN |
| Accurate grade | 1 grade /0.5 grade |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | the value ±1%/ the value±0.5% |
| Tester resolution | Max load 1/200000, constant the resolution |
| Load sensor | Basic configuration:sensor(max load): one Extended configuration:can add more sensors |
| Effective tensile space | 1000, 1200, 1400mm(can be increased the height according to customer"s requirement) |
| Effective testing width | 300mm |
| Range of testing speed | 0.001~500mm/min |
| Accruacy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow two speeds to control, can jog |
| Return back | Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 650×360×2100mmm (lenght*width*height)(including the height of operative table) |
| Power system | Panasonic AC Servo Motor + Driver |
| Power supply | 220V, 50HZ |
| Power | 0.4KW(depending on different demand of force, using different motor) |
| Machine weight | (about)260 Kg |
Technical parameters:
| Model | 10kN | 20kN | 30kN | 50kN | 100kN |
| Capacity/ Load force | 10kn | 20kn | 30kn | 50kn | 100kn |
| Load accuracy | Class 1 (class 0.5 optional) | ||||
| Load range | 1% - 100% FS (0.4% - 100% FS optional) | ||||
| Testing Speed | 0.001 - 1000 mm/min | ||||
| Crosshead travel | 1000mm | 1000mm | 1000mm | 1000mm | 1000mm |
| Effective tensil space | 700mm | 700mm | 700mm | 700 mm | 700mm |
| Effective test width | 400mm | 400mm | 450mm | 450 mm | 500mm |
| Load Resolution | 1/300000 | ||||
| Deformation Measure Range |
1%~100% FS |
||||
| Deformation accuracy | ≤±0.5% | ||||
| Power Supply | AC 220V±10%, 50Hz (can be customized as customer request) | ||||
Packaging & Shipping:
---Carton box, wooden case or specified package
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer's requirements.
