Three Box-Type Hot And Cold Impact Chamber Hot Impact Chamber Cold Impact Chamber Hot And Cold Impact Chamber

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: ISO\GB\GJB\ATSM
Model Number: B-TS-401
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: PLY-wooden case
Delivery Time: 18-25 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2100set/month
Model: B-TS-401 Power Source: AC:380V 50/60Hz
Low Temp Range: -10°C ~-60°C Test Temp Range: -40°C ~150°C
High Temp Range: 80°C ~ 200°C (various Specifications Applicable) Recovery Time(min): 3 To 5 Minutes
Temp Fluctudtiont: ±2°C
High Light:

AC380V Environmental Test Chambers

,

Three Box Type Environmental Test Chambers

,

PLC Environmental Test Chambers

Three Box-Type Hot And Cold Impact Chamber Hot Impact Chamber Cold Impact Chamber Hot And Cold Impact Chamber


Product Description

The three-box thermal shock test box, also known as the high and low temperature shock test box, is used to assess the adaptability of the product to sudden changes in ambient temperature. It is indispensable in the appraisal test of product design and finalization and the routine test of mass production.



The three-box thermal shock test box is divided into three parts: high temperature zone, low temperature zone and test zone. The test product is placed in the test zone. During impact, the temperature of the high temperature zone and the low temperature zone enters the test zone from the damper according to the program. The objects in the test area are statically placed without moving.



This product is mainly used in the national defense industry, aviation industry, automobile parts, electronic parts, plastics industry, food industry, pharmaceutical industry, and related product research and development, quality management engineering test specifications. Specifically used in the testing of electronic components, semiconductors, metals, chemistry, materials, etc.


Features

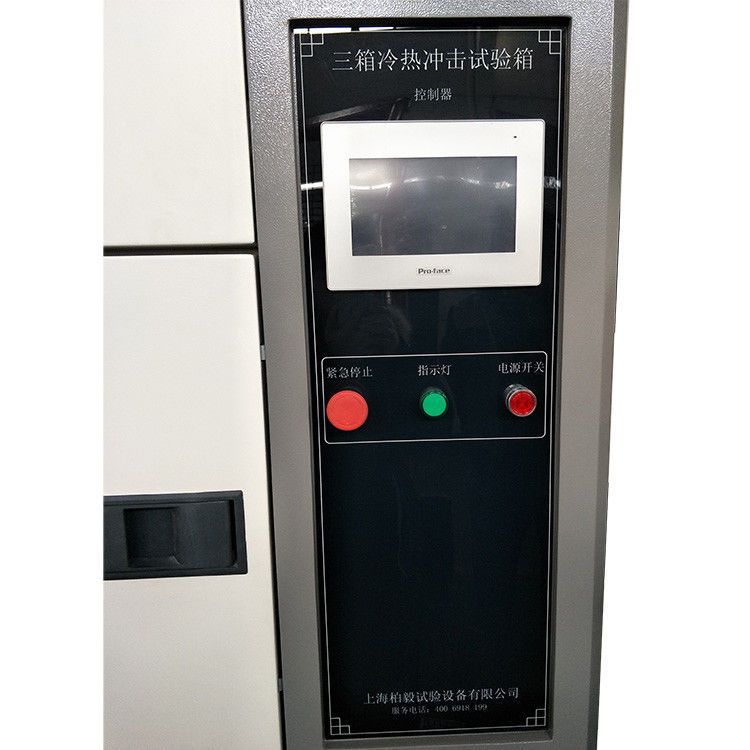

1. Adopt touch-sensitive color man-machine interface + PLC + imported temperature controller.
2. The number of cycles and defrosts can be se.
3. The abnormality and failure point display instructions, and are reminded by simple troubleshooting teaching.
4. Comprehensive system safety protection and power failure memory.
5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, current overload protection, over temperature protection, leakage protection.
6. Air cooling or water cooling can be selected according to customer requirements.


Specification

Model B-TS-401 B-TS-402 B-TS-403 B-TS-501 B-TS-502 B-TS-503 B-TS-601 B-TS-602 B-TS-603
Internal Dim(CM)
(W*H*D)
40×35×35 50×40×40 60×50×50 40×35×35 50×40×40 60×50×50 40×35×35 50×40×40 60×50×50
External Dim(CM)
(W*H*D)
143×210×170 154×212×170 166×220×180 143×210×170 154×212×170 166×220×180 143×210×170 154×212×170 166×220×180
Low Temp Range -10°C ~-60°C -10°C ~-70°C -10°C ~-80°C
Test Temp Range -40°C ~150°C -55°C ~150°C -65°C ~150°C
High Temp Range 80°C ~ 200°C (various specifications applicable)
Recovery time(min) 3 to 5 minutes
Temp Fluctudtiont ±2°C
Interior SUS#304 Stainless steel plate
Exterior Coating or SUS#304 Stainless steel plate
Power Source AC:380V 50/60Hz
Water Supplying Way 16KW 19KW 19KW 19KW 20.5KW 22KW 19KW 26KW 33KW

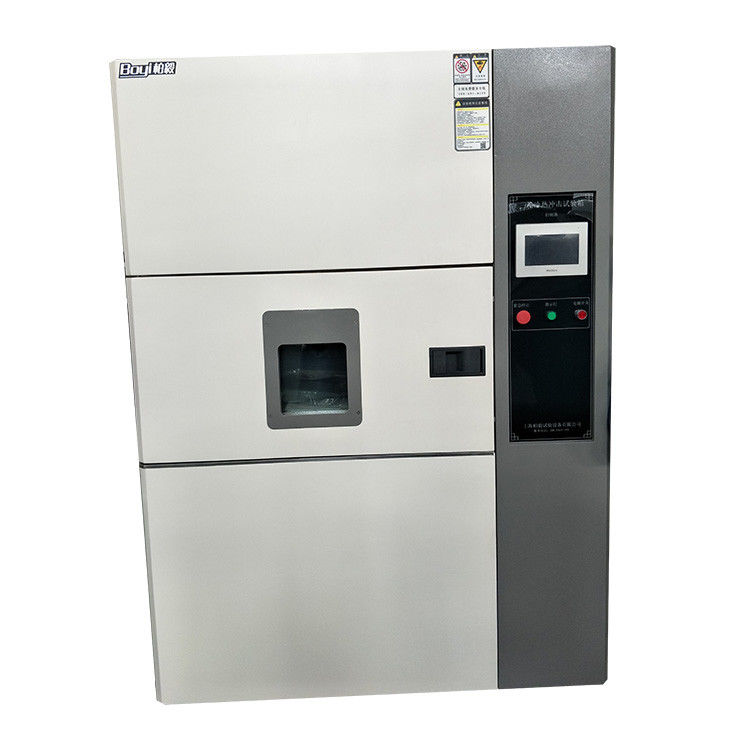

Three Box-Type Hot And Cold Impact Chamber Hot Impact Chamber Cold Impact Chamber Hot And Cold Impact Chamber 0

Three Box-Type Hot And Cold Impact Chamber Hot Impact Chamber Cold Impact Chamber Hot And Cold Impact Chamber 1

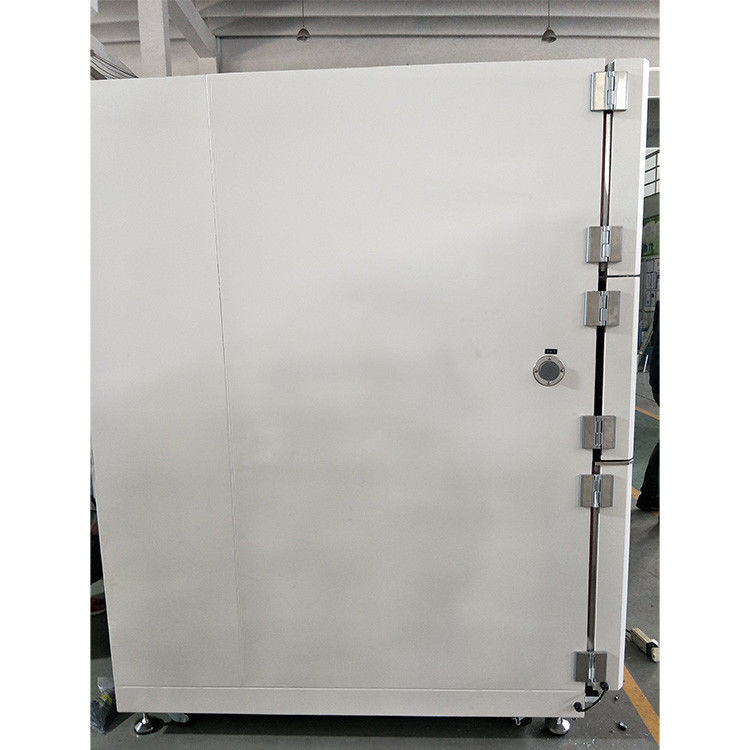

Three Box-Type Hot And Cold Impact Chamber Hot Impact Chamber Cold Impact Chamber Hot And Cold Impact Chamber 2

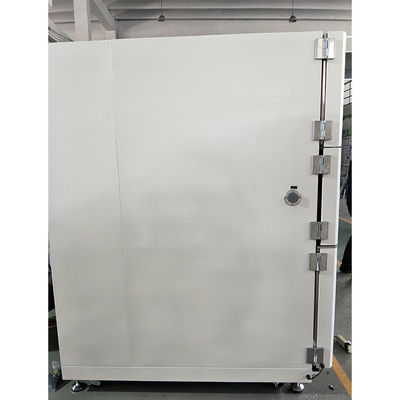

Three Box-Type Hot And Cold Impact Chamber Hot Impact Chamber Cold Impact Chamber Hot And Cold Impact Chamber 3

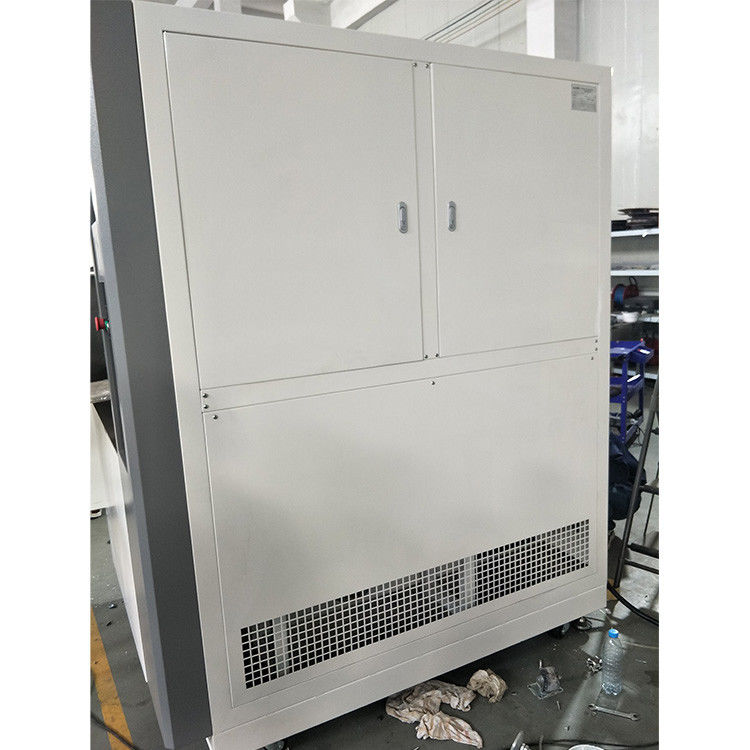

Three Box-Type Hot And Cold Impact Chamber Hot Impact Chamber Cold Impact Chamber Hot And Cold Impact Chamber 4



Three Box-Type Hot And Cold Impact Chamber Hot Impact Chamber Cold Impact Chamber Hot And Cold Impact Chamber 5

FAQ



Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!


Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .


Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.




Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
