Model: | B-T-225 | Power: | 2kw~6.5kw |
---|---|---|---|
Internal Dim: | 60*75*50 CM | External Dim: | 90*177*130 CM |
Relative Humidity: | 20%~98%RH | Interior: | SUS#304Stainless Steel Plate |
Temp Range: | -70°C~150°C | Pull-down Time: | About 0.7~1°C/min |
Power Source: | AC:220V/380V 50/60Hz | Exterior: | Coating Or SUS#304 Stainless Steel Plate |
Heat-up Time(min): | About 3~5°C/min | Temp Fluctuation: | ±0.5°C |
Temp Uniformity: | ±1.0°C | ||
High Light: | Laboratory Programmable Humidity Test Chamber,6.5kw Climate Test Chamber,Overload Protection Climate Test Chamber |

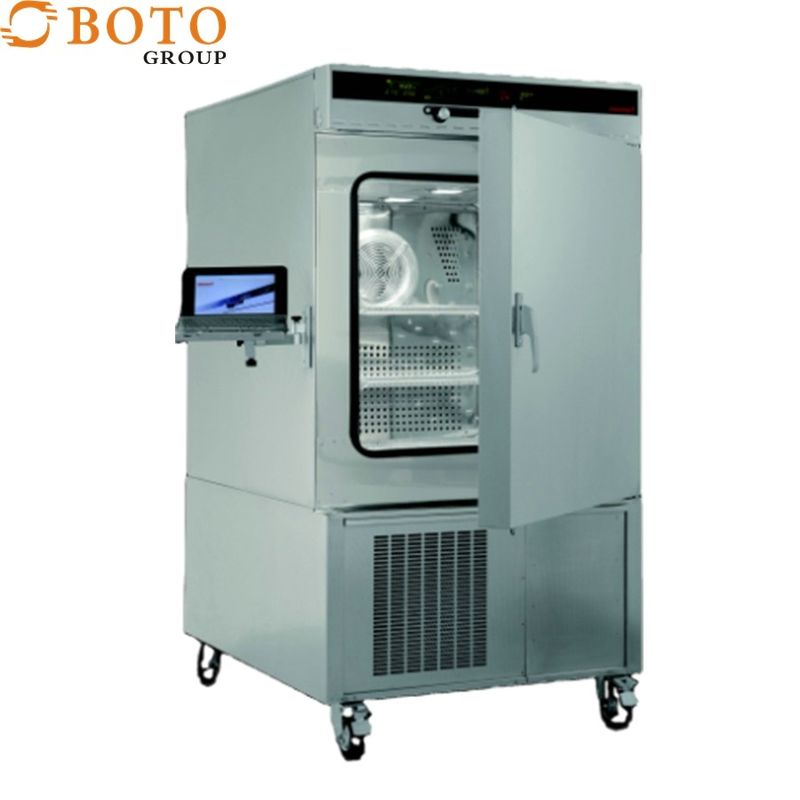

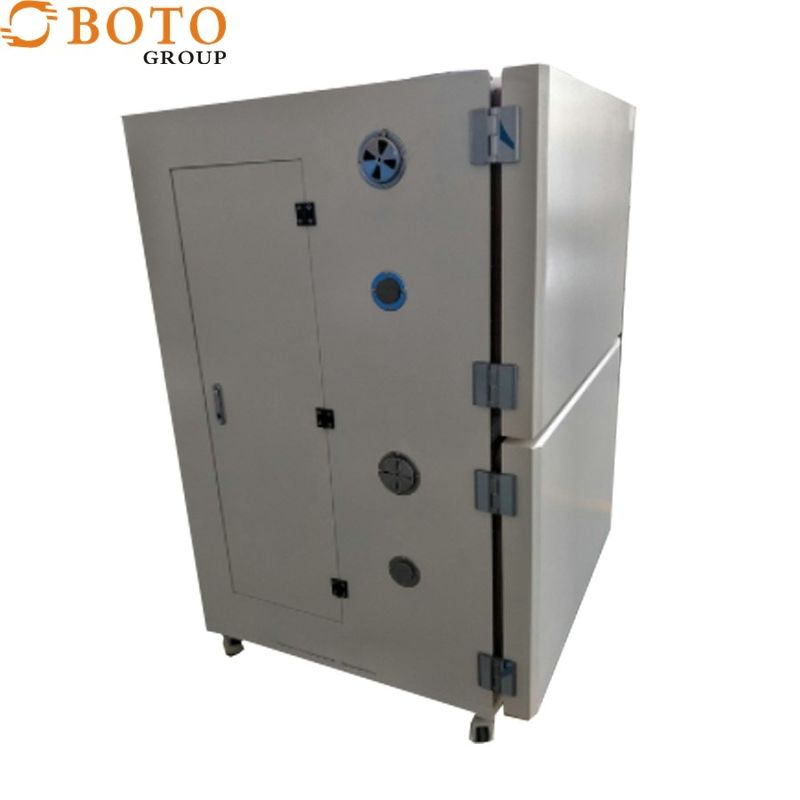

Programmable High Low Temperature Chamber Temperature Humidity Test Chamber
This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.
Product Description
This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.
Mainly used in national defense industry, aviation industry, automotive parts, electronic components, plastics industry, food industry and other related product development, straightening management engineering test specifications. Its characteristics are as follows:
1. The import of compressors and refrigeration accessories by the well-known brands in the national boundaries ensures the stability of the refrigeration system.
2. The cause of the faults can be displayed and the reason is easy to exclude.
3. The special air supply cycle design, the temperature and humidity distribution uniformity is good.
4. The whole series of imported microcomputer controllers are colored. Color touch screen, Chinese and English system, can be used as a function of setting the city value. It can show the cause of the trouble, exclude easy, super quiet design, effectively reduce the running noise of the equipment, and
5. Super quiet design, effectively reduce the running noise of the equipment.
6. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.
Standards: GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Characteristics:
1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. Control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Benchtops Temperature & Humidity Test Chamber, High Temperature Test Chamber, Dry Oven, Alternating Temperature Test Chamber, Alternating Temperature & Humidity Test Chamber, Temperature Rapid Change Test Chamber, Temperature & Humidity Rapid Change Test Chamber, Alternating Temperature Alternating Humidity Rapid Change, Thermal shock Test Chamber(Two-zone, Three-zone), Large Walk-in Test Room
Applications
● To simulate test environment with different temperature and humidity
● Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
● Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
● Uncover test unit weakness in a short-term test with accelerated time effect
Specifications
Model | BT-280 | BT-2150 | BT-2225 | BT-2408 | BT-2800 | |
Inner Size W×H×D(cm) |
40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | |
Outside Size W×H×D(cm) |
93×155×95 | 100×148×106 | 117×166×91 | 140×176×101 | 170×186×111 | |
Volume (V) | 80 L | 150L | 225L | 408L | 800L | |
Temp and Hum Range |
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
|||||
Function | Fluctuation | ±0.5°C ±2.5%RH |
Chamber Design Features
● High performance and quiet operation (68 dBA)
● Space-saving designed for flush installation to wall
● Full thermal break around doorframe
● One 50mm diameter cable port o left, with flexible silicone plug
● Direct water supply connection for continuous operation
● Accurate wet/dry-bulb humidity measurement system for easy maintain
Programmable Controller
● PIC controller for test chamber
● Step types include: ramp, soak, jump, auto-start, and end
● RS-232 interface to connect computer for output
Features:
1. Small size, special design and overlapping, not occupying planar space, suitable for laboratory use.
2. Low power consumption, energy saving and consumption reduction; low noise, low radiation, green
environmental protection.
3. High efficiency, communication mode using Qualcomm software F4 controller to complete a variety
of tests at the same time.
Component & Spare Parts Used for the Chamber
TECUMSEH compressor DANFOSS Filter
DANFOSS expansion valve AIRMENDER Gas Liquid Separators
Packing & Delivery
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.15-20days after confirming order,detail delivery date should be decided according to production season
and order quantity.
If you face any problems in future during testing process we promise we will give you a reply within 48
hours and solution provide within 3 working days. We can offer operation video and English operation
muanual. We can provide operation video for machines.
Onsite Service
1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
