1200c High Temperature Laboratory Heat Treatment Muffle Furnace

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE
Model Number: BT- 1200
Minimum Order Quantity: 1 SET
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/month
Product Name: Lab Muffle Furnace Heating Element Type:: Resistance Wire, SiC Rod, MoSi2 Rod
Heating Rate:: 0~15 Deg C/min Test Accuracy: ±5%
Maximum Temperature:: 1600 ℃ Max. Power:: 6KW
Chamber Material:: Ceramic Fiber Maximum Working Temperature:: 1700.℃
High Light:

1200c Heat Treatment Muffle Furnace

,

Laboratory Heat Treatment Muffle Furnace

,

Ceramic Fiber Lab Muffle Furnace



Programmable Laboratory High Temperature Electric Heat Muffle Furnace

This Series atmosphere muffle furnace is adopted imported heat-preservation material, high purity alumina polycrystalline fiber. Temperature is controlled by double platinum rhodium thermal couple and Al intelligent temperature controller 708P.



The atmosphere furnaces can protect materials from oxidation and decarburization with flowing Nitrogen, Argon and other inert gas, balanced temperature field, fast temperature rising and cooling, energy-efficient, delicate appearance,practical.It is widely used for sintering, annealing, reducing with inert atmosphere in labs of colleges and universities, research institutes and industrial and mining enterprise.

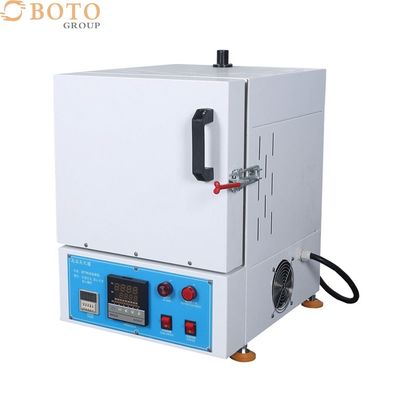

1200c High Temperature Laboratory Heat Treatment Muffle Furnace 0

1200c High Temperature Laboratory Heat Treatment Muffle Furnace 1



Features
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Built-in computer interface.
• Long life type K thermocouple.
• CE compliant

Safety

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.



Characteristic
11) high temperature BOX series muffle furnace, the control system is an international leading, with safe and reliable, simple operation, convenient maintenance.
2) Use 708P type temperature controller (Professional PID programmable control) for automatic temperature control with high temperature control precision (±1ºC). the temperature range is wide, and high uniformity of furnace temperature.
3) Furnace chamber adopts the vacuum suction molding alumina fiber, has the characteristics of energy saving, light volume, high cooling speed, the temperature field balancing, good thermal shock resistance ability.
4) Furnace body have the internal and external double-layer structure, heat insulation effect is good, the outer furnace wall temperature is low. Fast heating and heat preservation performance is good, the energy saving effect is obvious.
5) Equipped with rapid air cooling system. Oven door and oven door frame to cool the air cooling design, guarantee the oven door use for a long time not out of shape.
6) The stove top can install vent, furnace and control system integration design, compact and beautiful.





Detailed Parameters
Name: BOX-1700 Muffle Furnace
Heating element: MoSi2 heating element
Heating rate: 10-15ºC/min
Temperature control precision: ±1ºC
Thermocouple index number: B type
Material of furnace chamber: top quality ceramic fiber

Model B-T 1200-I B-T 1200-II B-T 1200-III B-T 1200-IV B-T 1200-V
Power 2.5KW 4KW 5KW 9KW 16KW

Chamber size

(D*W*H)

300X200X120mm 300X200X200 mm 300X250X250 mm 400X300X300 mm 500X400X400 mm
Shipping Weight 260kg 282kg 305kg 318kg 340kg

Overall dimension

(W*D*H)

466X616X820mm 466X616X820mm 536X626X890mm 586X726X940mm 766X887X1130mm
Voltage 220V 220V 220V 380V 380V
Phase 1 1 1 3 3



Electrical requirements 208-240VAC, 50/60Hz, single phase
Min. working temperature Ambient
Max. working temperature 1200°C (2192°F)
Max. constant working temperature 1100°C (2012°F)
Refractory lining high quality 1500 grade fiber alumina
Heating element type resistance coil wire
Thermocouple type R
Temperature controller

Adopts Yudian Temperature controller

1,Proportional–integral–derivative control (PID control) and auto-tune function

2,Built-in over-temperature alarm and thermocouple failure alarm

3,Default 485 PC communication port

4,It has breakpoint memory and power-off protection function

5,30 segments programmed with ramping.

Max heating / cooling rate < 15°C (59°F) / min
Temperature accuracy +/- 1°C
CE compliance Yes


BOTO Testing equipment Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.



Work shop:

1200c High Temperature Laboratory Heat Treatment Muffle Furnace 2



1200c High Temperature Laboratory Heat Treatment Muffle Furnace 3

1200c High Temperature Laboratory Heat Treatment Muffle Furnace 4

1200c High Temperature Laboratory Heat Treatment Muffle Furnace 5

1200c High Temperature Laboratory Heat Treatment Muffle Furnace 6





FAQ



Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
