|Product Name:||Lab Muffle Furnace||Heating Element Type::||Resistance Wire, SiC Rod, MoSi2 Rod|
|Heating Rate::||0~15 Deg C/min||Test Accuracy:||±5%|
|Chamber Material::||Ceramic Fiber||Working Temperature::||1200℃|
|Furnace Chamber (D X W X H):||500*500*500 Mm||Overall Size:||750*880*850 Mm|

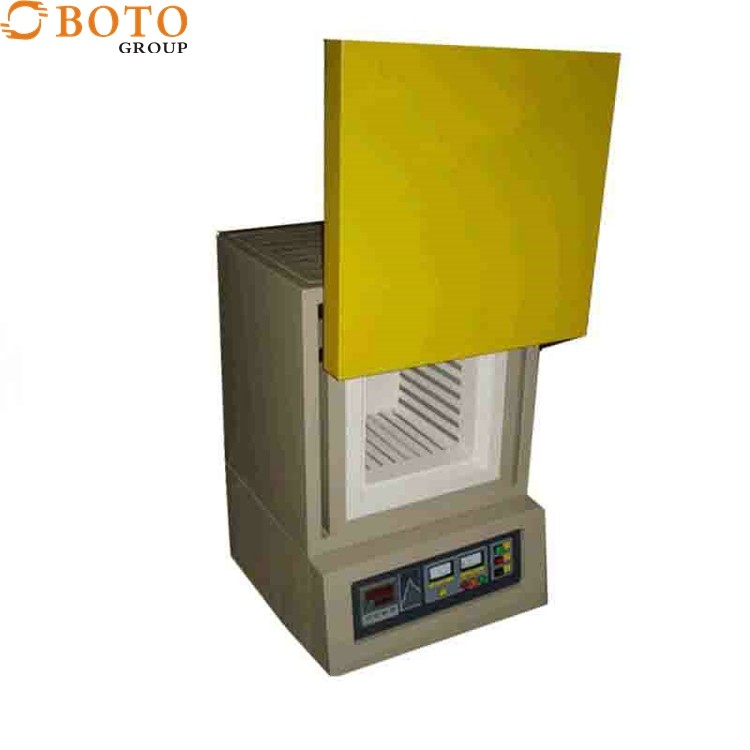

Programmable Laboratory Muffle Furnace,
1200 Degree Laboratory Muffle Furnace,
Heat Preservation Laboratory Muffle Furnace
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Built-in computer interface.
• Long life type K thermocouple.
• CE compliant
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
11) high temperature BOX series muffle furnace, the control system is an international leading, with safe and reliable, simple operation, convenient maintenance.
2) Use 708P type temperature controller (Professional PID programmable control) for automatic temperature control with high temperature control precision (±1ºC). the temperature range is wide, and high uniformity of furnace temperature.
3) Furnace chamber adopts the vacuum suction molding alumina fiber, has the characteristics of energy saving, light volume, high cooling speed, the temperature field balancing, good thermal shock resistance ability.
4) Furnace body have the internal and external double-layer structure, heat insulation effect is good, the outer furnace wall temperature is low. Fast heating and heat preservation performance is good, the energy saving effect is obvious.
5) Equipped with rapid air cooling system. Oven door and oven door frame to cool the air cooling design, guarantee the oven door use for a long time not out of shape.
6) The stove top can install vent, furnace and control system integration design, compact and beautiful.
|Product Name||500 Degree Standard Custom Industry Lab High Temperature Heating Drying Oven|
|Internal dimensions(mm)||400*500*500 D*W*H|
|Overall dimensions(mm)||750*880*850 D*W*H|
|Temperature range||Ambient ～+400℃; ( Ambient~+250 ℃; Ambient~+900℃)|
|Temperature fluctuation||± 1°C|
|Temperature Deviation||± 2.0 °C|
|Heating rate||About 6°C/min|
|Controller||Programmable color display touch screen controller, PC Link with software, R-232 interface|
|Temperature sensor||PTR Platinum Resistance PT100|
|Heating system||Independent Nichrome electronic heating element|
|Exterior material||Steel plate with protective coating|
|Interior material||SUS304 stainless steel|
|Timing function||0.1~999.9(S.M,H) settable|
|Power Supply||AC220V 50HZ|
