Internal Size: | 45x60x45 Cm | External Size: | 75(W)x189(H)x110(D) Cm |
---|---|---|---|
Relative Humidity: | 20%-98%RH | Temp Range: | -70℃~150℃ |
Temp Rising Time: | About 3~5℃/min | Temp Falling Time: | About 0.7℃~1℃/min |
Temp Fluctuation: | ±0.5℃ | Temp Uniformity: | ±1℃ |
Temp&humidity Deviation: | ±1℃ / ±3%RH | Internal Material: | 304 Stainless Steel Plate |
Exteral Material: | Coating Or 304 Stainless Steel Plate | Voltage & Frequency: | 380V 50/60Hz |
Power: | 4KW~10KW | ||
High Light: | 80L Environmental Climatic Test Chamber,98%RH Constant Temperature Chamber,380V Constant Temperature Chamber |

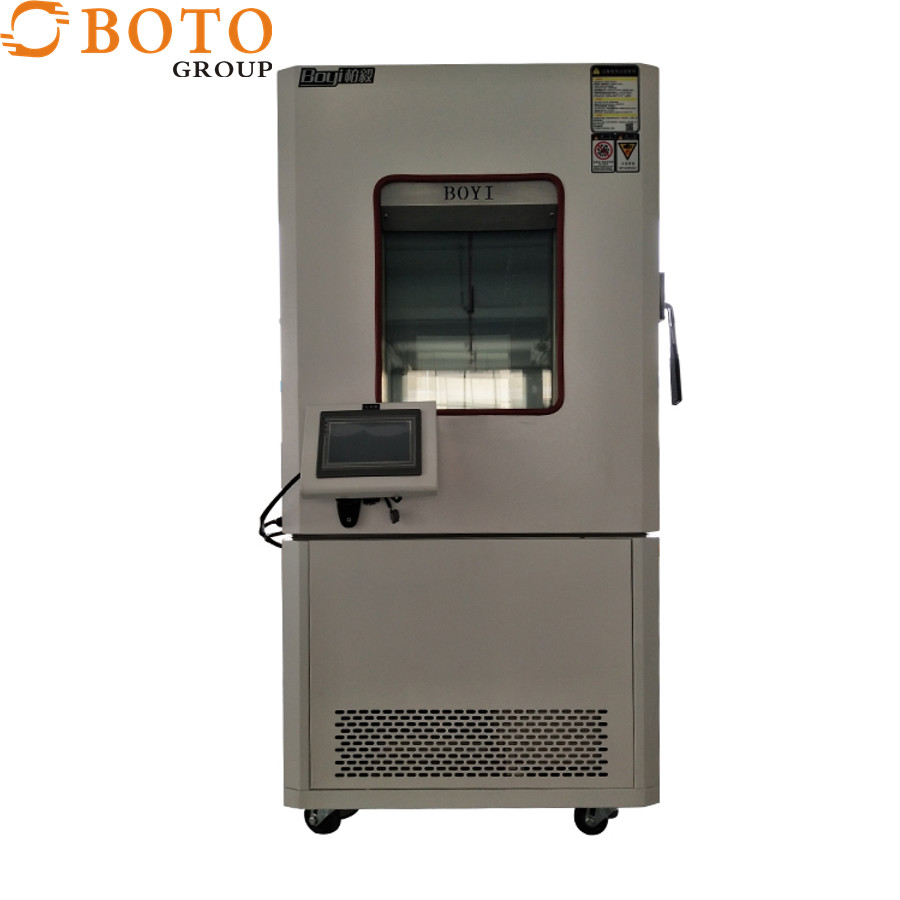

80L -70℃~150℃ Constant Temperature Humidity Environmental Climatic Test Chamber
The temperature and humidity test chamber can accurately simulate the complex natural environment of low temperature, high temperature, high humidity, low temperature and low humidity, which is suitable for the product detection of plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries.
TH-XX-X series depends on different temperature and volume needs.
XX represents the volume of the chamber and it can be 80,120,225,408,504,800 and 1000.
X represents the low temperature of the temp range and it can be A 0℃,B -20℃, C -40℃,D -60℃ and E -70℃.
Model | B-TH-80 | B-TH-120 | B-TH-225 | B-TH-408 | B-TH-504 | B-TH-800 | B-TH-1000 |
Volume (V) | 80 L | 120L | 225L | 408L | 504L | 800L | 1000L |
Temperature range |
A: 0°C ~150°C B:-20°C~150°C C: -40°C~150°C D: -60°C~150°C E: -70°C~150°C Customized temperature is available. |
BOTO product characteristics:
1.The import of compressors and refrigeration accessories by the well-know brands in the national boundaries ensures the stability of the refrigeration system.
2.The cause of the faults can be displayed and the reason is easy to exclude.
3.The special air supply cycle design, the temperature and humidity distribution uniformity is good.
4.The whole series of imported microcomputer controllers are colored. Color touch screen, Chinese and English system, can be used as a function of setting the city value. It can show the cause of the trouble, exclude easy, super quiet design, effectively reduce the running noise of the equipment, and
5.Super quiet design, effectively reduce the running noise of the equipment.
6.Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, over temperature protection, leakage protection.
Technical specification:
Model | B-TH-80 | |
Inner chamber size W×H×D(cm) |
45×60×45 | |
Outside Size W×H×D(cm) |
75X189X110 | |
Volume (V) |
225L |
|
Temperature range |
A: 0°C ~150°C B:-20°C~150°C C: -40°C~150°C D: -60°C~150°C E: -70°C~150°C Customized temperature is available. |
|
Humidity range |
RH20%-98% Customized humidity is available. |
|
Function | Fluctuation | ±0.5°C ±2.5%RH |
Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) | |
Controller Analytical Accuracy |
±0.3°C ±2.5%RH | |
Wind Cycling Way | Centrifugal fan-broadband type forced air circulation | |
Refrigeration Way | Single stage compression refrigeration | |
Refrigerator | French Tecumseh | |
Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) | |
Condensing Way | Air-cooled or water-cooled | |
Water Supplying Way | Automatic cycling water supply | |
Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system |
