| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE, ISO9001 |
| Model Number: | B-T-107C |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | strong wooden case |
| Delivery Time: | 15-30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 800 set/year |
| Internal Size: | 30.5x23x29 Cm | External Size: | 53(W)x68(H)x72(D) Cm |
|---|---|---|---|
| Relative Humidity: | 20%-98%RH | Temp Range: | -40℃~130℃ |
| Temp Rising Time: | About 3℃/min | Temp Falling Time: | About 0.7℃~1℃/min |
| Temp Fluctuation: | ±0.5℃ | Temp Uniformity: | ±1℃ |
| Temp Deviation: | ±1℃ | Internal Material: | 304 Stainless Steel Plate |
| Exteral Material: | Coating Or 304 Stainless Steel Plate | Voltage & Frequency: | 220V 50/60Hz |
| Power: | 1KW~2KW | ||
| High Light: | 1KW Humidity Test Chamber,SS304 Temperature Humidity Test Chamber,20L Temperature Humidity Test Chamber |
||

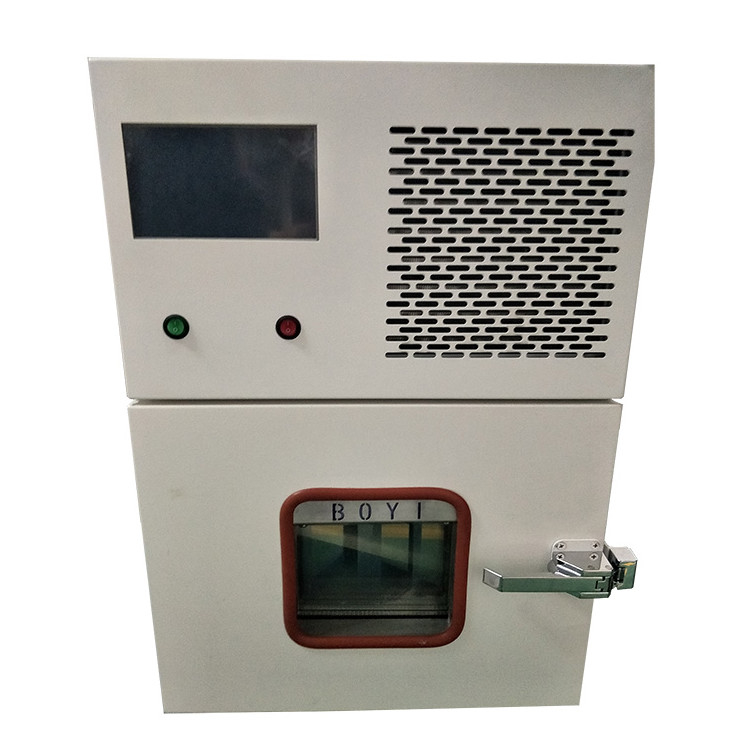

Climatic lab constant low temperature and humidity test chamber 20L -40℃~130℃
The temperature and humidity test chamber can accurately simulate the complex natural environment of low temperature, high temperature, high humidity, low temperature and low humidity, which is suitable for the product detection of plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries.
BOTO product characteristics:
1. Small size, special design and overlapping, not occupying planar space, suitable for laboratory use.
2. Low power consumption, energy saving and consumption reduction; low noise, low radiation, green environmental protection.
3. High efficiency, communication mode using Qualcomm software F4 controller to complete a variety of tests at the same time.
4. Both sides are equipped with side tests. Holes, easy to operate.
5. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.
Technical specification:
| Model | B-T-107C | |
|
Inner chamber size W×H×D(cm) |
30.5×23×29 | |
|
Outside Size W×H×D(cm) |
53X68X72 | |
| Volume (V) |
20L |
|
| Temperature range |
A: 0°C ~130°C B:-20°C~130°C C: -40°C~130°C D: -60°C~100°C
Customized temperature is available. |
|
| Humidity range |
RH20%-98% Customized humidity is available. |
|
| Function | Fluctuation | ±0.5°C |
| Deviation | ±1℃ | |
|
Controller Analytical Accuracy |
±0.3°C ±2.5%RH | |
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation | |
| Refrigeration Way | Single stage compression refrigeration | |
| Refrigerator | French Tecumseh | |
| Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) | |
| Condensing Way | Air-cooled or water-cooled | |
| Water Supplying Way | Automatic cycling water supply | |
| Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system |
|
WHY CHOOSE US?
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.
FAQ
Are your company a trading one or a factory ?
Factory + trade (integration),17 years focusing on test instruments field,11 years exporting experience.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
