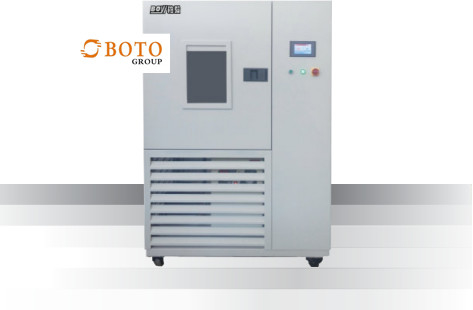

Name: VOC Environmental Test Chamber Test Facility
Brand: BOTO GROUP LTD
SKU: B-VOC
Price: 120000.00 USD
Availability: InStock

VOC Environmental Test Chamber Test Facility

Basic Information

Contact Now

Volume:	50-1000L,±2%	Temperature Range:	15~70℃，±1℃
Temperature Uniformity:	±1℃	Air Exchange Rate:	0.2-2
Air Velocity:	0.1-0.3m/s	Formaldehyde Background:	≤0.006 Mg/m³
Greater Than 0.5um:	≤100 Particles/m³	TVOC:	≤0.02 Mg/m³
Toluene Recovery:	≥80%	Airleakage Flow Rate:	At 1kPa Positive Pressure, The Air Leakage Rate VL ≤ Cabin Capacity ×10-3 Cubic /min
Noise Level:	<65dB	Voltage Source:	380V，50HZ
Highlight:	VOC Environmental Test Chamber , 0.3m/S Environmental Test Chamber , 380V Environmental Test Chamber

VOC Environmental Test Chamber

Features
1. Cabin material: the outer bulkhead adopts thickened color steel plate, the inner tank adopts SUS304 mirror stainless steel, and the insulation system adopts polyurethane insulation material.
2. Air supply system: it is composed of oil-free air pump, dehumidifier, flow controller, etc. The air pump adopts imported air pump with stable quality.
3. Air filtration system: mainly including VOC, formaldehyde filter and particulate membrane filter. High filtration efficiency, convenient replacement and low cost.
4. Humidity control system: the humidity adopts dry and wet mixed humidity control technology. PLC intelligent control, high precision and low energy consumption.
5. Temperature control system: the overall temperature control adopts the air jacket thermal radiation control mode.

Use : For the detection of VOCs (volatile organic compounds) release from furniture, carpets, toys, automotive interiors, musical instruments, plastic surfaces of outdoor sports venues and their raw materials
Standards compliant: T/310101002-C03-2016,HJ 571-2010, GB 18583-2008,GB18584, ASTM D5116-97,ISO 16000-9-2006 , ANSI/BIFMA X7.1-2007,ENV 13419-1
