| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO |
| Model Number: | B-TH-1000E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiation |
| Packaging Details: | PLY-Wooden case |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000set/month |
| Place Of Origin: | China | Color: | White And Blue |
|---|---|---|---|
| Model Number: | B-TH-1000(A-E) | Inter Dim: | 100X100X100 |
| External Dim: | 130X190X123 | Material: | Coating Or SUS#304Stainless Steel Plate |
| Relative Humidity: | 20%~98%RH(10%~98%Customized Humidity Is Available) | Temp Range: | -70℃~150℃（180℃） |
| Power Source: | AC:220V/380V 50/60Hz | Power: | 4KW~10KW |
| Highlight: | Programmable Temperature Humidity Test Chamber,PID Temperature Humidity Test Chamber,10KW Temperature Humidity Test Chamber |
||

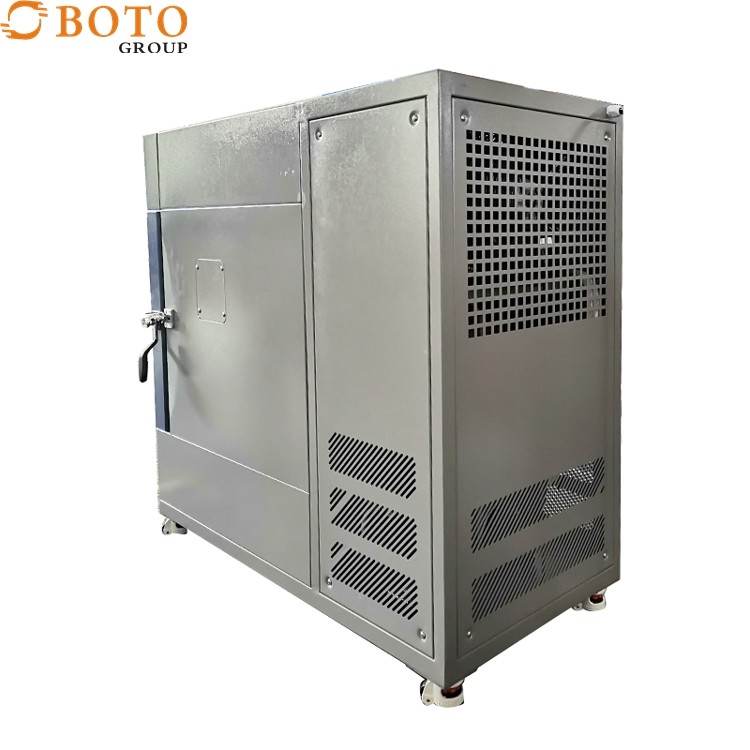

Simulate Climatic Chambers Programmable High Low Temperature Chamber Temperature Humidity Test Chamber
Product details
Constant temperature and humidity test box according to the different name can also be called high and low temperature alternating humidity test box, constant temperature and humidity box, constant temperature and humidity machine, etc., mainly used for the need to do the detection of environmental testing materials, programmable as the name implies is the test box can be programmed, using the original imported controller.
Standard
Comply with MIL STD GB JIS JEDEC IEC ISO and other test specifications.
Use
Temperature Humidity Climatic Test Chamber Price applied to test the prodcuts quality, such as electronic, plastic products,electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.Temperature humidity drug stability test chamber price can be used when constant climate conditions (temperature and/or humidity) are needed for product testing. It also can be used for a variety of materials of high - low temperature alternating test.The test temperature, humidity, time can be programmed. Provides conditions of temperature from -70 to +150 degree and of humidity from 20% to 98%, low humidity 10%~98%RH is available for us.
Features
1. The international famous brand imported compressor and refrigeration accessories are adopted to ensure the stability of the refrigeration system;
2. Can show the cause of failure, easy to eliminate;
3. Special air circulation design, good uniformity of temperature and humidity distribution;
4. Full series of imported microcomputer controller, color touch screen, Chinese and English display;
5. Super silent design, effectively reduce the noise of equipment operation;
6. Multiple safety protection: refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.
Spec
| Model | dry heat | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) |
| damp heat | B-TH-120(A~E) | B-TH-225(A~E) | B-TH-504(A~E) | B-TH-1000(A~E) | |
| Internal Dim | 45X60X45 | 60X75X50 | 70X90X80 | 100X100X100 | |
| External Dim(W*H*D) | 75X89X110 | 90X177X130 | 100X180X103 | 130X190X123 | |
| Relative(Only damp heat) | 20%-98%RH(10%-98%RH Non-standard optional) | ||||
| Temp Range | -70℃~150℃(180℃) | ||||
| (A:0℃ B:-20℃ C:-40℃ D:-60℃ E:-70℃) | |||||
| Heat-up time(min) | About3~5℃/min | ||||
| Pull-down time(min) | About1℃/min | ||||
| Temp Fluctudtion | ±0.5℃ | ||||
| Temp Uniformity | ±1.0℃ | ||||
| Temp&Humi.Deviation | ±1.0℃/±3.0%RH | ||||
| Interior | SUS#304Stainless steel plate | ||||
| Exterior | Coating or SUS#304Stainless steel plate | ||||
| Power Source | AC:220V/380V 50/60Hz | ||||
| Power(KW) | 2KW~6.5KW | 2.5KW~7KW | 3KW~8KW | 4KW~10KW |
|
NO.1 Original imported compressor, France "Taikang" fully enclosed compressor
NO.2 Multiple protection mechanism
NO.3 Modular refrigeration system
NO.4 Box optimization design
NO.5 Self-developed controller
PACKAGE&DELIVERY
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.15-20days after confirming order,detail delivery date should be decided according to production season and order quantity.
FAQ
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
