High Sealing And Wing Speed Low Noise Battery Dust Test Chamber Environmental Chamber

Basic Information
Place of Origin: Shanghai,China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-E706
Minimum Order Quantity: 1 SET
Price: 2000-4200USD
Packaging Details: wooden case
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 1000set/month
Chamber Material: SUS304 Stainless Steel Controller: PLC Touch Screen
Fan: Centrifugal Fan Talcum Powder Amount: 2kg/ M³
Door: Left Open Door With Tempered Glass Door Vacuum Pump Capacity: 60-600 L/H
Customized Support: OEM, ODM
High Light:

ODM Temperature Humidity Test Chamber

,

600L/H Temperature Humidity Test Chamber

,

PLC Temperature Humidity Test Chamber

High Sealing And Wing Speed Low Noise 60-600 L/H Dust Test Chamber Environmental Chamber

Product Description



CHAMBER DESIGN FEATURES



1. Chamber material: SUS#304 stainless steel;

2. Transparent window is convenient to observe specimen during testing;

3. Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;

4. Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.

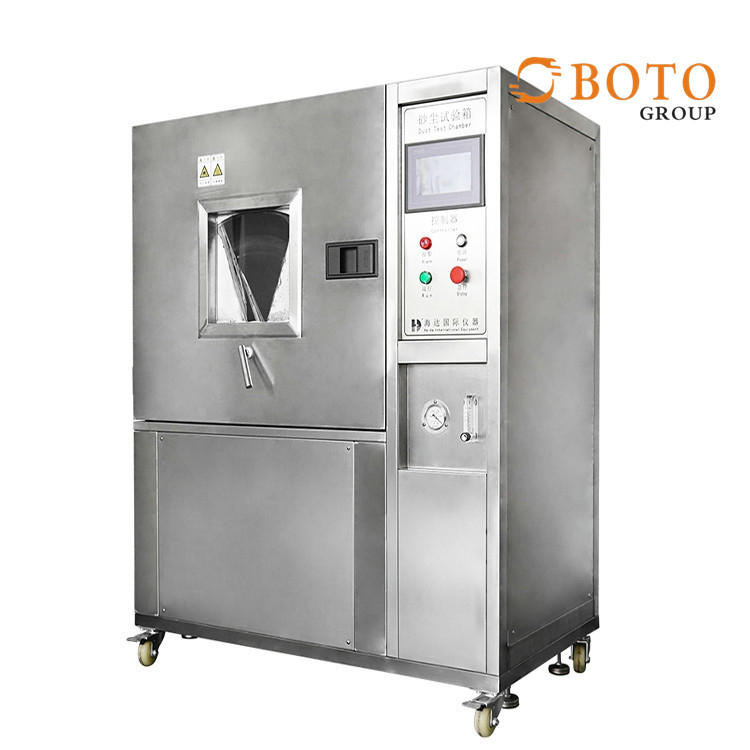

High Sealing And Wing Speed Low Noise Battery Dust Test Chamber Environmental Chamber 0



STANDARD FEATURES



Item Specification
Internal dimension 800W*800D*800Hmm
External dimension 1300W*1000D*1700Hmm
Test sample Size W20cm- L30cm-D15cm, weight 0.5kg
Chamber material SUS304 Stainless steel
Specifications of square mesh sieve Mesh hole 75um, mesh metal wire diameter 50um
Talcum powder amount 2kg/ m³
Airflow speed No more than 2m/s
Door Left open door with tempered glass door
Controller

PLC Touch Screen controller, programmable to set as below cycle:

a. Blowing dust time (Stop/Blow) m/s

b. Cycle time: can be adjusted

c. Pre-set test time: 0s ~99m99s

Vacuum system Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
Vacuum pump capacity 60-600 L/H
Fan Centrifugal fan
Safety protection devices Meter over-temperature function, Phase shortage protection, Power short-circuit protection
