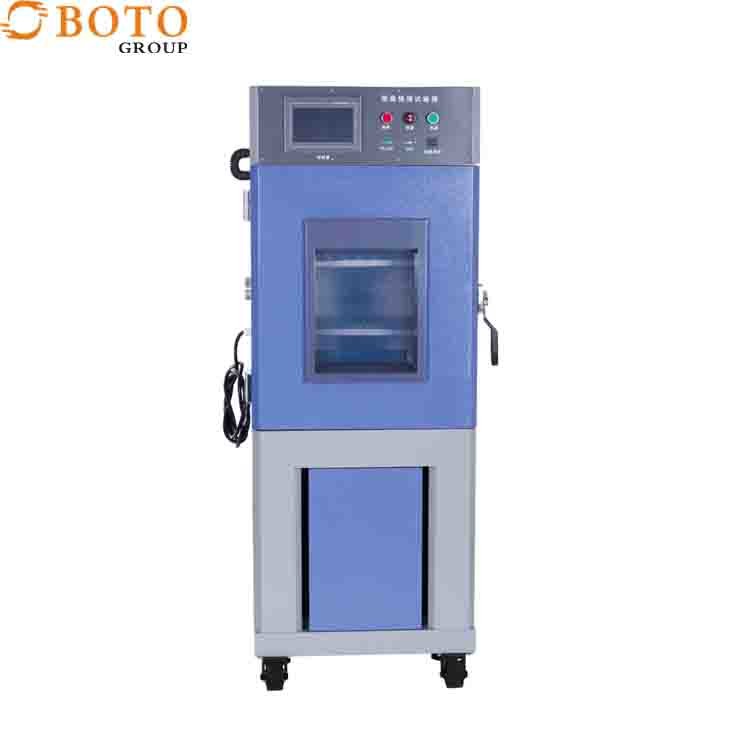

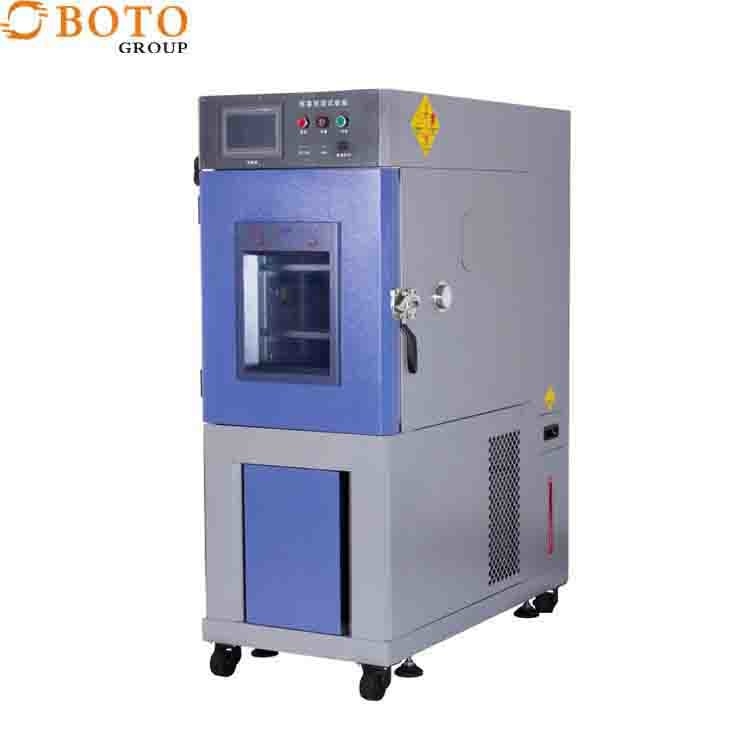

CE Approved Climate Programmable High Low Temperature Constant High Humidity Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BTH-800
Minimum Order Quantity: 1set
Price: 2000-3000 USD
Packaging Details: wooden case
Delivery Time: negotiaed
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 set per year
Inner Size: 1000*1000*800mm Humidity Range: 10%~98%RH, Customized
Humidity Uniformity: +/-2%RH Warranty: 12 Months
Volume: 800L Temperature Range:: -40℃, 0~150℃
Temperature Uniformity: +/-1.5℃ Power Supply: AC 1 Phase 220V / 3 Phase 380V 60/50Hz
High Light:

Programmable Climate Test Chamber

,

800L Humidity Test Chamber

,

SUS304 Temperature Humidity Test Chamber



CE approved climate programmable High-low temperature constant high humidity test chamber



Auto Testing Machine

Temperature humidity chamber

High and low temperature chamber

Environmetal test equipment



Product Description

Programmable High-low temperature test chambers are widely used in testing various types of materials for their tolerances of heat, cold, dry and humidity. It is applicable for quality inspection for all types of electronic products, electric appliance, and products from communication ,instruction , automobile, plastic, metal , chemical, building materials, medical and aerospace industries. It's used to test the performance of heat-resisting, cold-resistant, dry-resistant and moisture-proof of different materials.



Product features

Features:

1. The unique geometrical cavity design to ensure clean, active and perfect protection. Sample

2. The perspective of double hollow toughened glass doors

3. touch screen operation

4, In line with European safety standards for the safety of temperature glass window

5. inner chamber adopts SUS#304 stainless steel,external chamber adopts hight-quality cold-rolled steel or SUS#304.

CE Approved Climate Programmable High Low Temperature Constant High Humidity Test Chamber 0

CE Approved Climate Programmable High Low Temperature Constant High Humidity Test Chamber 1





Specifications:

Model No BTH-080 BTH-150 BTH-225 BTH-408 BTH-800 BTH-1000
Inner chamber size W×H×D(mm) 400x500x400 500x600x500 500x750x600 600x850x800 1000x1000x800 1000x1000x1000
Exterior chamber size W×H×D(mm) 900x1350x910 950x1500x1050 950x1650x1150 1050x1750x1350 1450x1900x1350 1450x1900x1550
Temperature range -73°C -60°C, -40°C, -20°C, 0°C~+150°C, +180°C
Humidity range 20%~98%RH
Temp.&Humi fluctuation ±0.2°C, ±0.5%RH
Temp.&Humi.uniformity ±1.5°C,±2.5% RH when RH is ≤ 75%,±4% RH when RH is > 75% (tested with the empty chamber, 30 minutes after stabilization)
Temp.&humi. Resolution 0.01°C,0.1%RH
Inner chamber material SUS#304 stainless steel plate
Exterior chamber material Stainless steel plate+ powder coated
Insulation PU & Fiberglass wool
Wind circulation Sirocco fan
Heating system SUS#304 stainless steel high-speed heater
Humidifying Surface evaporating system
Cooling Imported compressor,finned type evaporator,air-cooling condenser
Dehumidifying ADP critical dewpoint cooling/dehumidifying method
Controller Digital electronic indicators+S.S.R.With PID automatic calculation capability
Power supply AC 1 phase 220V; 3 phase 380V 60/50Hz



Humidity Controllable Range
